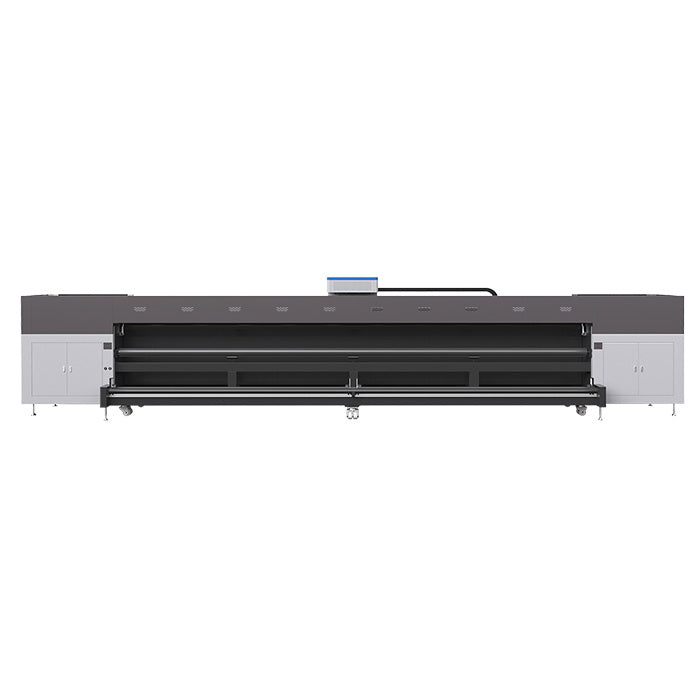

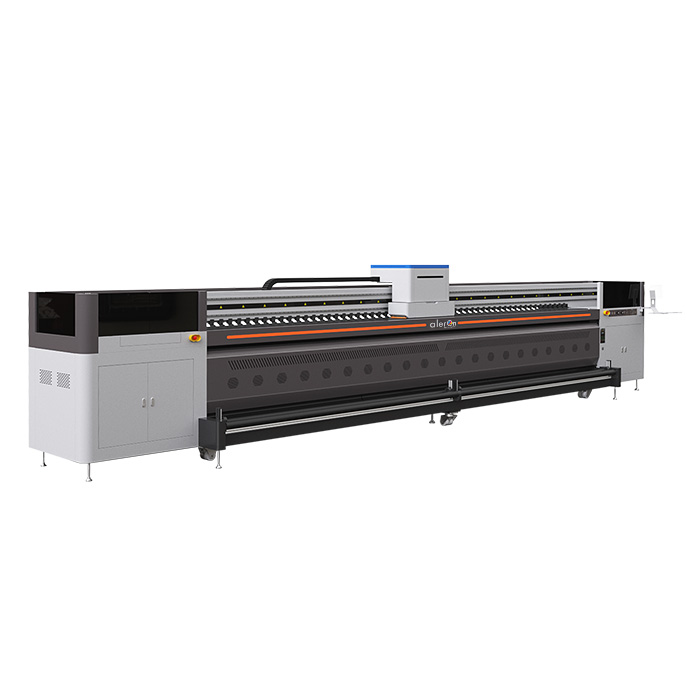

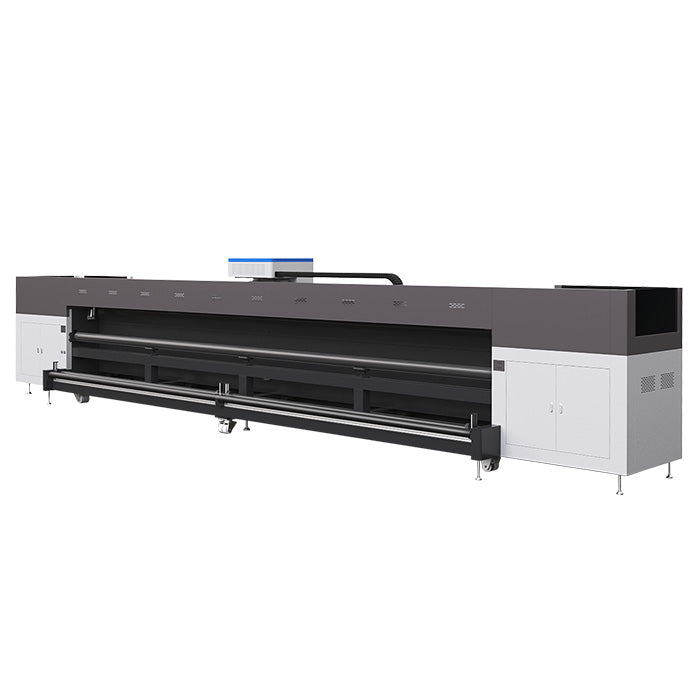

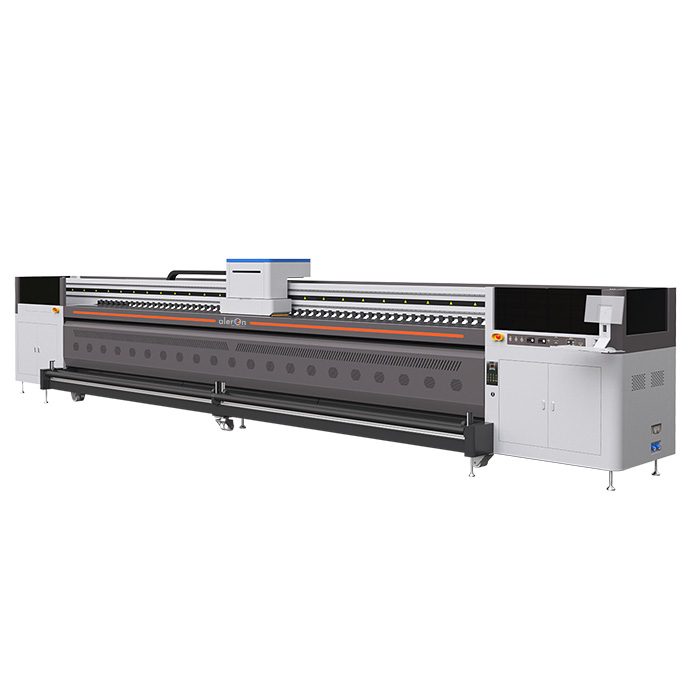

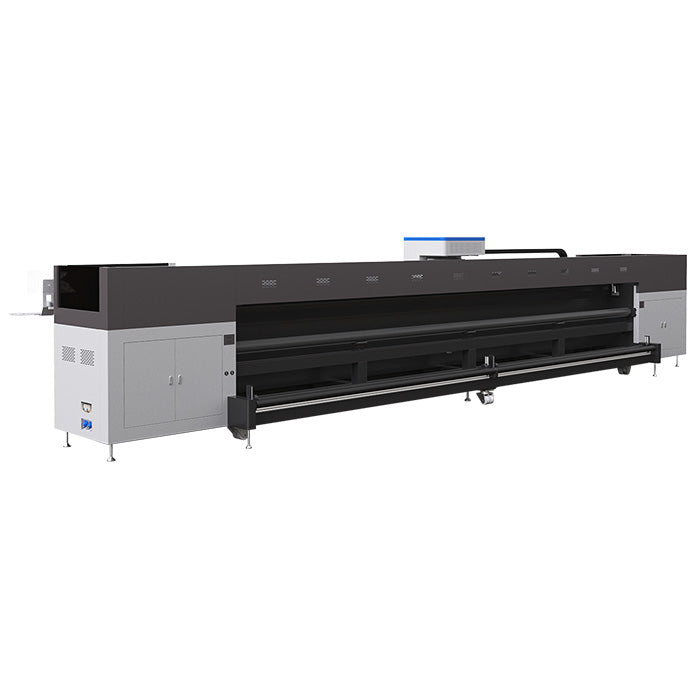

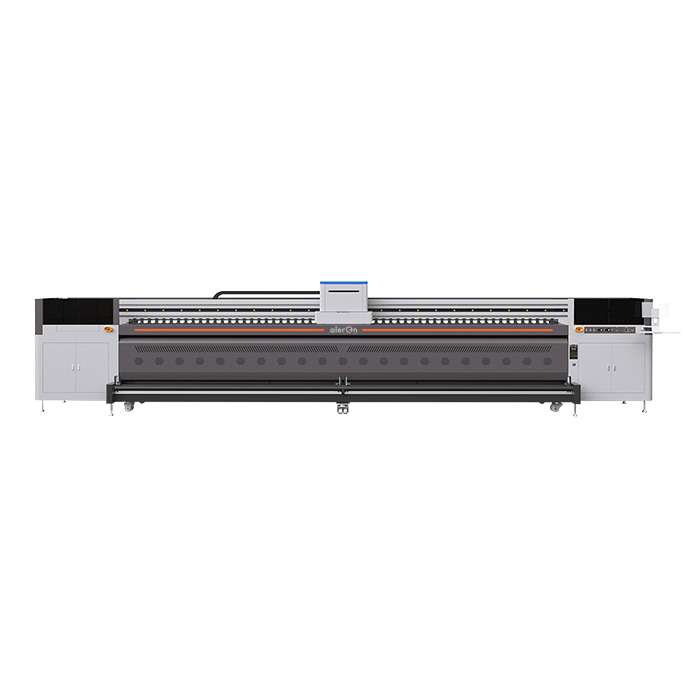

Aleron 6.8 meter large-format printer Ultra-i3200 -6816 Eco-Solvent Printer(linear motor)
6.8m Eco-Solvent Printer
Printheads: Epson i3200
Maximum Speed: 434 ㎡/h
Printing Width: 6.6m
6.8m Eco-Solvent Printer
Printheads: Epson i3200
Maximum Speed: 434 ㎡/h
Printing Width: 6.6m
| Ultra i3200 6816 Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Ultra i3200 6816 | ||||||||
| Printing Technology | Eco-Solvent Printing | ||||||||
| Print Head | Epson i300 16H | ||||||||
| Acceptable Media |
Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.) Width: ≦6600mm |
||||||||
| Ink Type | CMYK Eco-Solvent Ink | ||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||
| Ink Cartridges |
Capacity: Color Siphon Color: CMYK |
||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||
| RIP Software | Maintop (standard), Photoprint / Print Factory (optional) | ||||||||
| Printing Resolution | Maximum | ||||||||
| Printing Speed - Epson |
|
||||||||
| Ink Drying Method | Infrared Heater Drying | ||||||||
| Control System | Win10 | ||||||||
| Power | 11000W | ||||||||
| Interface | Gigabit Ethernet | ||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||
| UPS | 3KVA | ||||||||
| Packing Dimension |
Inch: L: 298.43 x W: 61.03 x H: 82.68 (1 Inch = 25.4 mm) L: 232.68 x W: 17.72 x H: 25.60 (1 Inch = 25.4 mm) Meter: L: 7.58m x W: 1.55m x H: 2.1m Individual Media Feeding Roll: L: 5.91m x W: 0.45m x H: 0.65m |
||||||||
| Printer Dimension |
Inch: L: 287.41 x W: 53.15 x H: 67.32 (1 Inch = 25.4 mm) L: 228.35 x W: 13.78 x H: 23.23 (1 Inch = 25.5 mm) Meter: L: 7.3m x W: 13.5m x H: 1.71m Individual Media Feeding Roll: L: 5.8m x W: 0.35m x H: 0.59m |
||||||||
| Weight |
N.W 8338 lb. / 3790kg (1kg = 2.2 lb.) G.W 9735 lb. / 4425kg (1kg = 2.2 lb.) |
||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity: 35% to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity: 35% to 80% (No Condensation) |
||||||||
| Safety Certification | CE Certified | ||||||||
