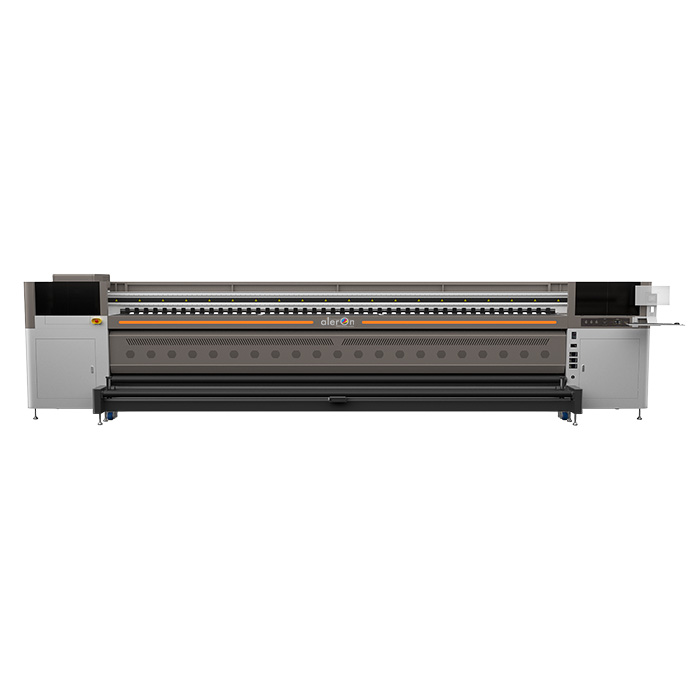

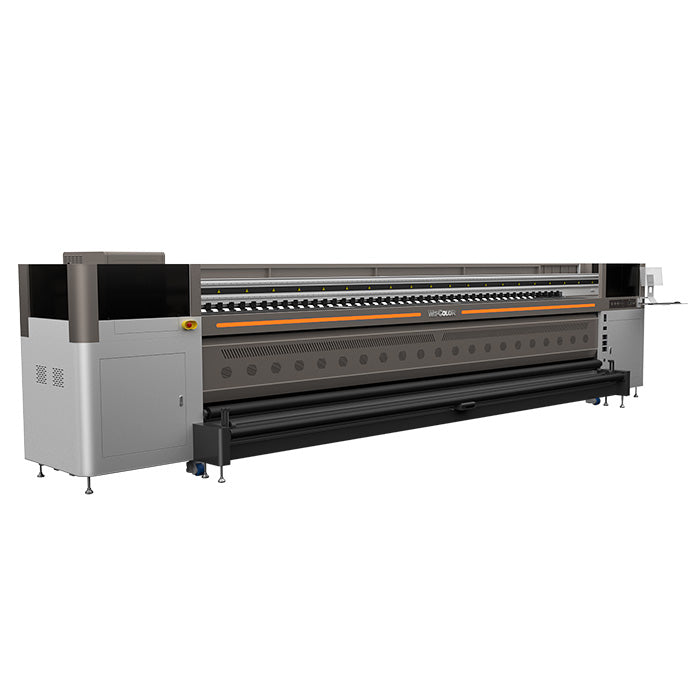

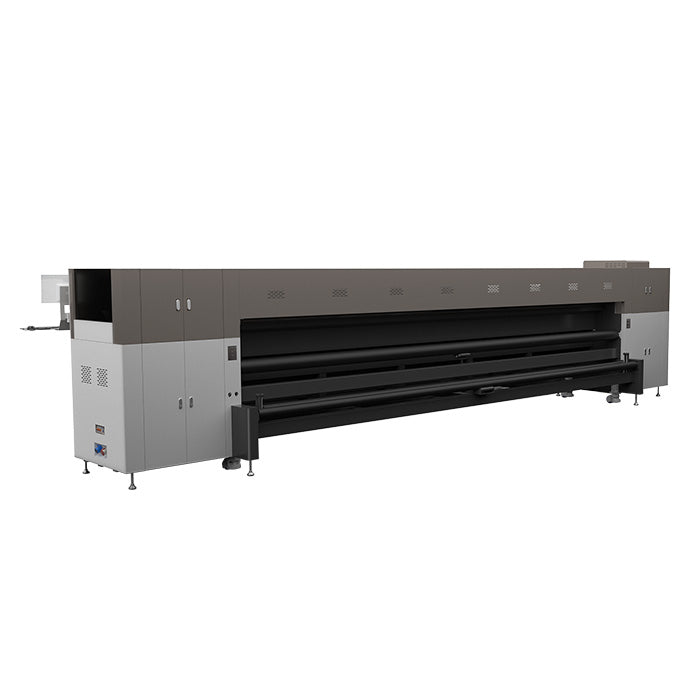

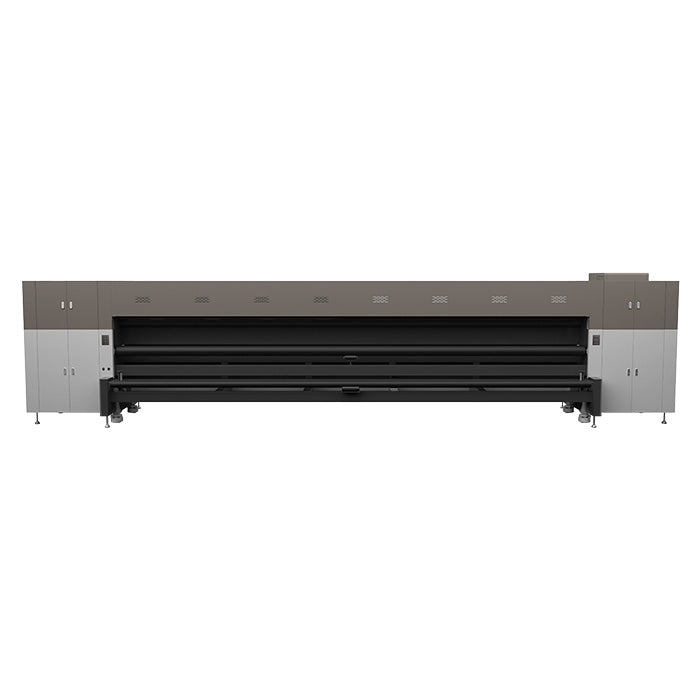

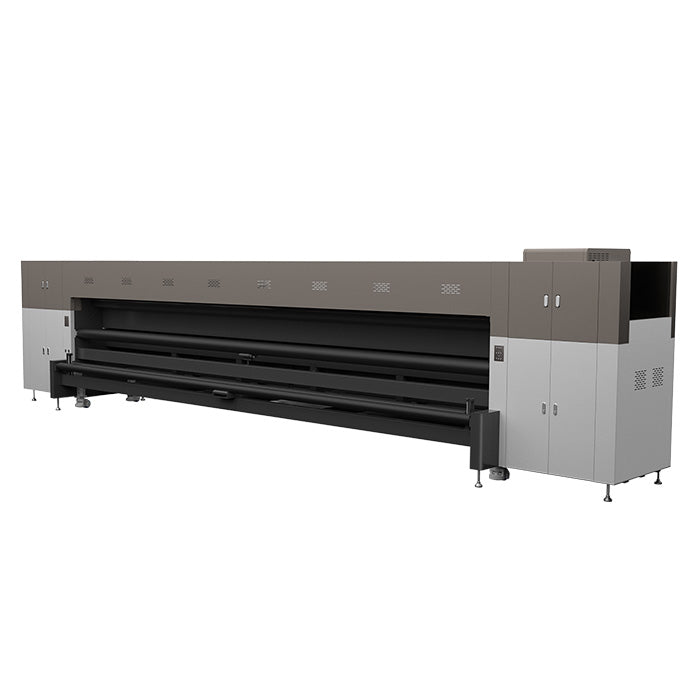

Aleron 5.3 meter large-format printer Ultra-Star-5306 Solvent Printer(linear motor)
5.3m Solvent Printer
Printheads: StarFire 1024
Maximum Speed: 380 ㎡/h
Printing Width: 5.2m
5.3m Solvent Printer
Printheads: StarFire 1024
Maximum Speed: 380 ㎡/h
Printing Width: 5.2m
| Ultra Star 5306 Specifications | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Ultra Star 5306 | ||||||||||||||||
| Printing Technology | Solvent Printing | ||||||||||||||||
| Print Head | Star Fire 1024 25PL, Konica1024i 4/8/12H | ||||||||||||||||
| Acceptable Media |
Type: Outdoor Solvent/Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.) Width: ≦5200mm |
||||||||||||||||
| Ink Type | CMYK 25PL Solvent Ink | ||||||||||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon Color: CMYK |
||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||||||
| RIP Software | Maintop (standard), Photoprint / Print Factory (optional) | ||||||||||||||||
| Printing Resolution | Maximum | ||||||||||||||||
| Printing Speed - Star Fire |
|
||||||||||||||||
| Printing Speed - Konica |
|
||||||||||||||||
| Ink Drying Method | Infrared Heater Drying | ||||||||||||||||
| Control System | Win10 | ||||||||||||||||
| Power | 11000W | ||||||||||||||||
| Interface | Gigabit Ethernet | ||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||||||
| UPS | 3KVA | ||||||||||||||||
| Packing Dimension |
Inch: L: 298.43 x W: 61.03 x H: 82.68 (1 Inch = 25.4 mm) L: 232.68 x W: 17.72 x H: 25.60 (1 Inch = 25.4 mm) Meter: L: 7.58m x W: 1.55m x H: 2.1m Individual Media Feeding Roll: L: 5.91m x W: 0.45m x H: 0.65m |
||||||||||||||||
| Printer Dimension |
Inch: L: 287.41 x W: 53.15 x H: 67.32 (1 Inch = 25.4 mm) L: 228.35 x W: 13.78 x H: 23.23 (1 Inch = 25.5 mm) Meter: L: 7.3m x W: 13.5m x H: 1.71m Individual Media Feeding Roll: L: 5.8m x W: 0.35m x H: 0.59m |
||||||||||||||||
| Weight |
N.W 8338 lb. / 3790kg (1kg = 2.2 lb.) G.W 9735 lb. / 4425kg (1kg = 2.2 lb.) |
||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity: 35% to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity: 35% to 80% (No Condensation) |
||||||||||||||||
| Safety Certification | CE Certified | ||||||||||||||||
