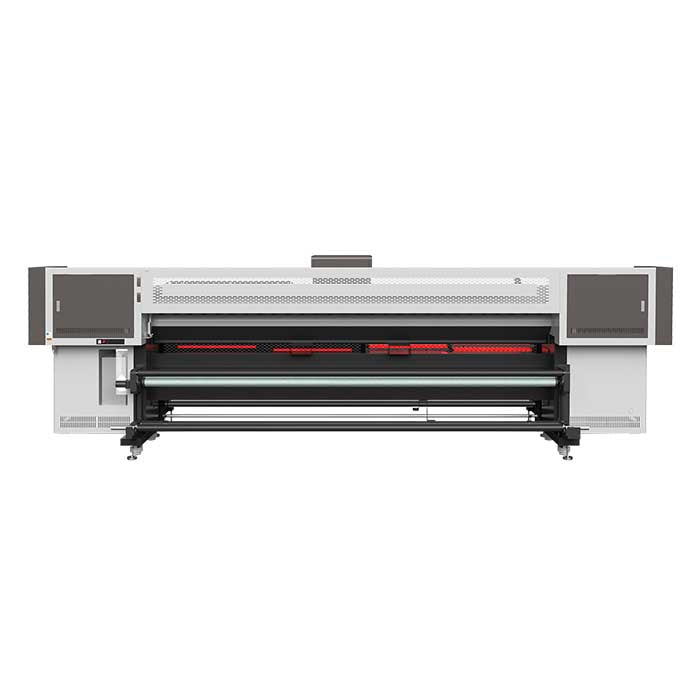

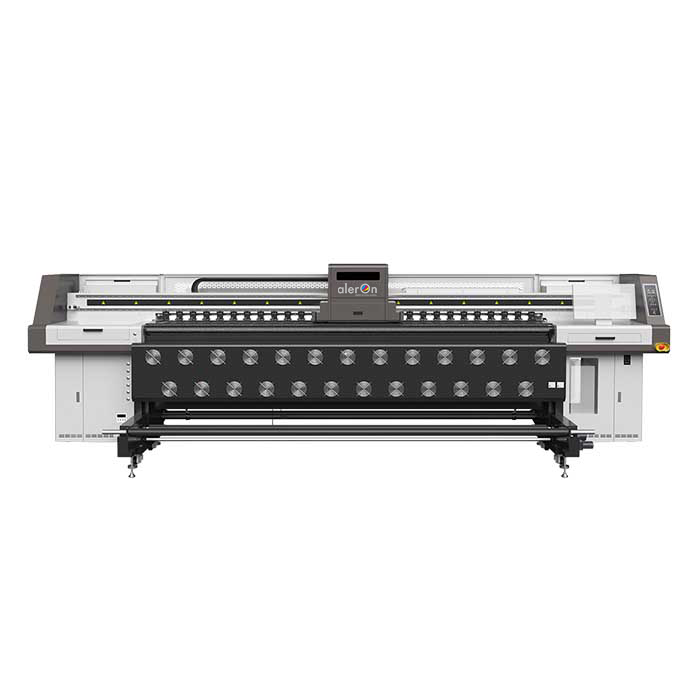

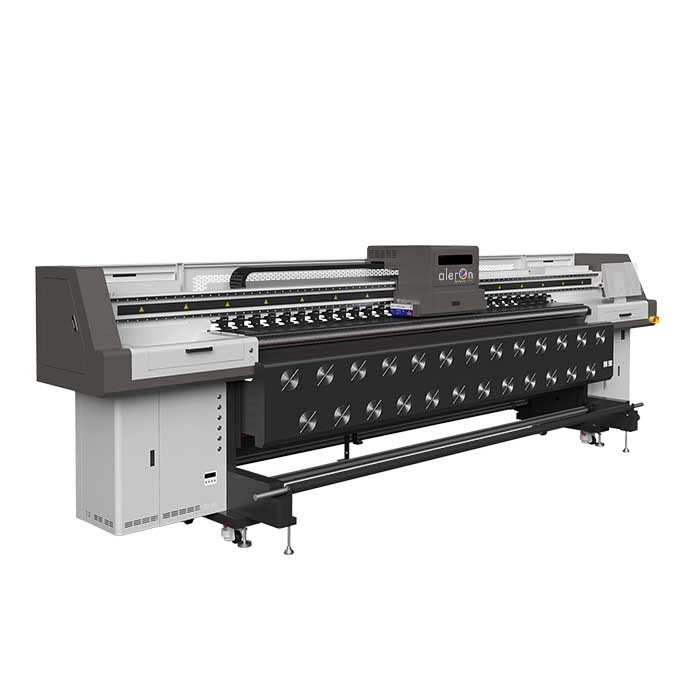

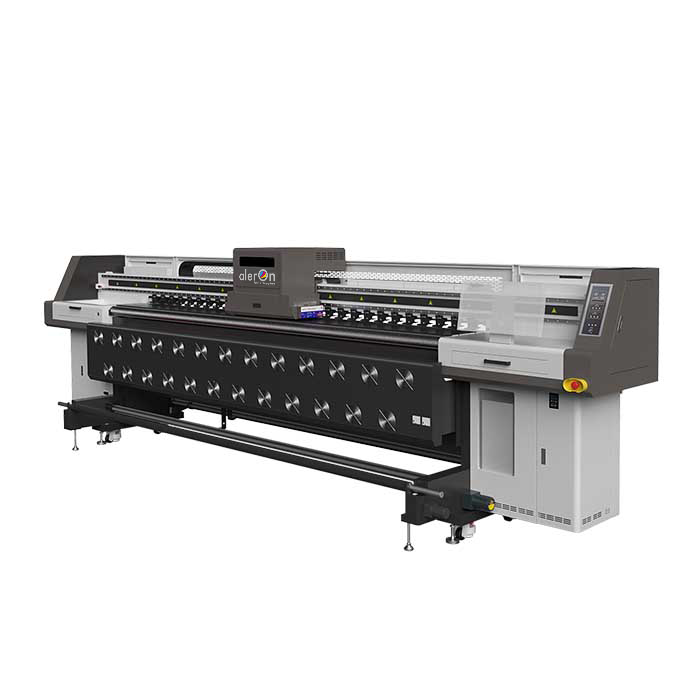

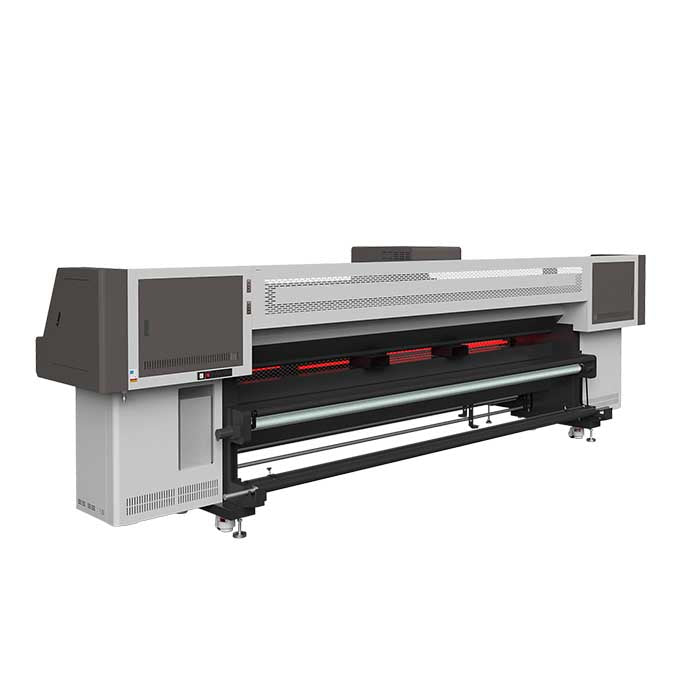

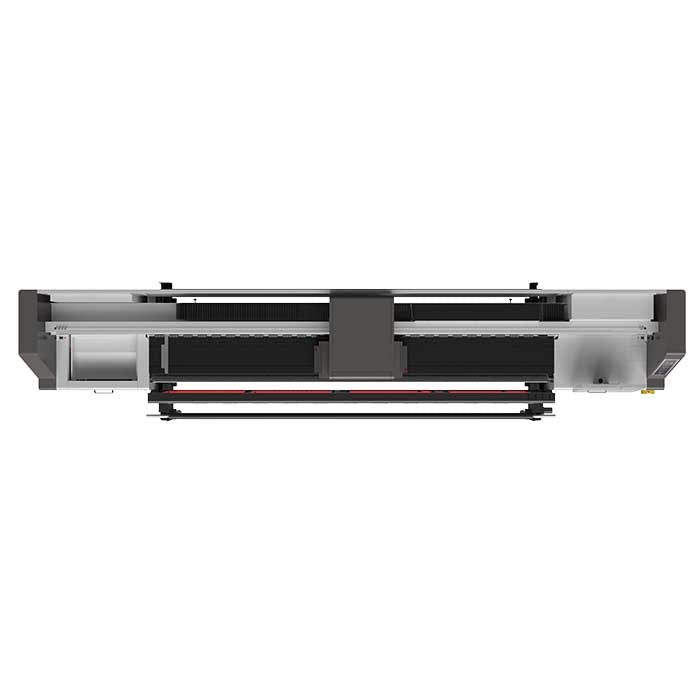

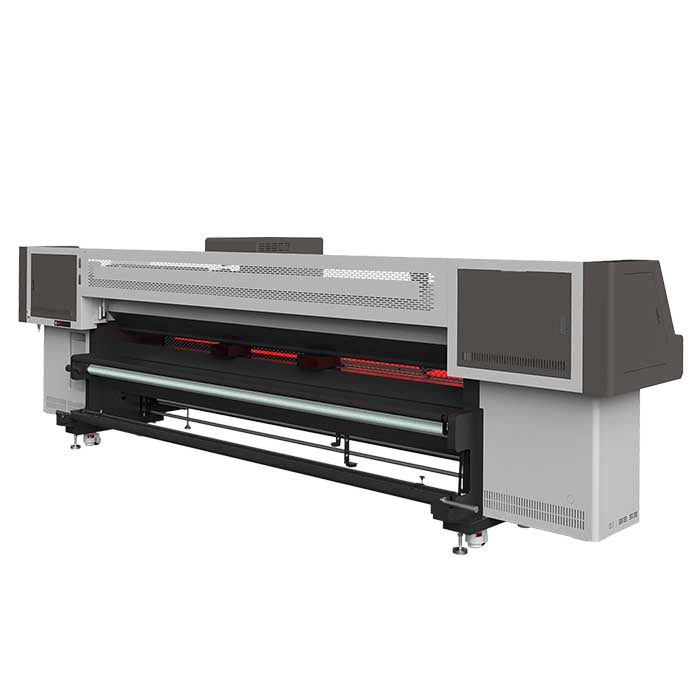

Ultra Star 3306 advertisement printing machine digital solvent printer（linear motor）

Ultra Star 3306 advertisement printing machine digital solvent printer（linear motor）

by Aleron Digital Printing System

Over 10 Hours working time, No need special maintainence.

6heads 2pass: 330sqm/h (360*200dpi 25pl).

Carbon Fiber drying system.

Anti-Crash System.

Mutil-Choice feeding system & Independent take-up system.

New Designed controlling system.

Request a quote
Chat with us

UltraStar 3306 Advertisement Printing Machine Digital Solvent Printer

Over 10 Hours working time, No need special maintainence.6heads 2pass: 330sqm/h (360*200dpi 25pl).Carbon Fiber drying system.Anti-Crash System.Mutil-Choice feeding system & Independent take-up system.New Designed controlling system.

Ultra Star 3306 Specifications
Model Ultra Star 3306
Printing Technology Solvent Printing
Print Head Star Fire 1024 (10/25PL Optional), Konica1024i 4/8/12H
Acceptable Media Type: Outdoor Solvent/Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.)
Width: ≦3200mm
Ink Type CMYK 25PL Solvent Ink / 10PL Eco-Solvent
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon
Color: CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop (standard), Photoprint / Print Factory (optional)
Printing Resolution Maximum
Printing Speed - Star Fire
Mode 2H 4H 6H
2PASS 110㎡/h 240㎡/h 310㎡/h
3PASS 80㎡/h 170㎡/h 220㎡/h
4PASS 60㎡/h 120㎡/h 150㎡/h
Printing Speed - Konica
Mode 4H 8H 12H
2PASS 240㎡/h 480㎡/h 720㎡/h
3PASS 130㎡/h 260㎡/h 380㎡/h
4PASS 80㎡/h 174㎡/h 240㎡/h
Ink Drying Method Infrared Heater Drying
Control System Win10
Power 8000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L: 197.25 x W: 44.49 x H: 69.30 (1 Inch = 25.4 mm)
L: 157.48 x W: 17.72 x H: 27.17 (1 Inch = 25.5 mm)

Meter:
L: 5.01m x W: 1.13m x H: 1.76m
Individual Media Feeding Roll: L: 4m x W: 0.45m x H: 0.69m
Printer Dimension Inch:
L: 188.98 x W: 44.49 x H: 61.42 (1 Inch = 25.4 mm)
L: 149.61 x W: 13.78 x H: 23.23 (1 Inch = 25.4 mm)

Meter:
L: 4.8m x W: 1.13m x H: 1.56m
Individual Media Feeding Roll: L: 3.8m x W: 0.35m x H: 0.59m
Weight N.W 2090 lb. / 950kg (1kg = 2.2 lb.)
G.W 2398 lb. / 1090kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified
Get The Best Price

Brand new High Performance Solvent printer:1. Adopted 2/4 pcs American Spectra StarFire 1024 Industrial Printhead.2. 1024 Nozzels,10/25 PL Drop Volume,Imcomparable Printing Performance.3. Amazing 10 Years' Using Life of Printhead.Less Investment with High Payback.4. Max. Printing Speed:100 sqm/h.5. Automatica Medai Feeding and Take-up System.6. Infrard Heating and Drying System.7. With Redijet Technology,the automatic Ink Circulation System Guaranted the Smooth Continous Printing.8. Dual feeding & take-up system.9. The best printing effects on back-lit material and soft film material.Applications: Ultra Star 3302 has large applications for outdoor media:Flex, Vinyl, Backlit, Banner, soft film.etc.

Ultra Star 3306 advertisement printing machine digital solvent printer（linear motor）

· Billboards

· Car stickers

· Applications:

· Outdoor advertising

· Vehicle personalization

· Branding

· Decorative purposes

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)
