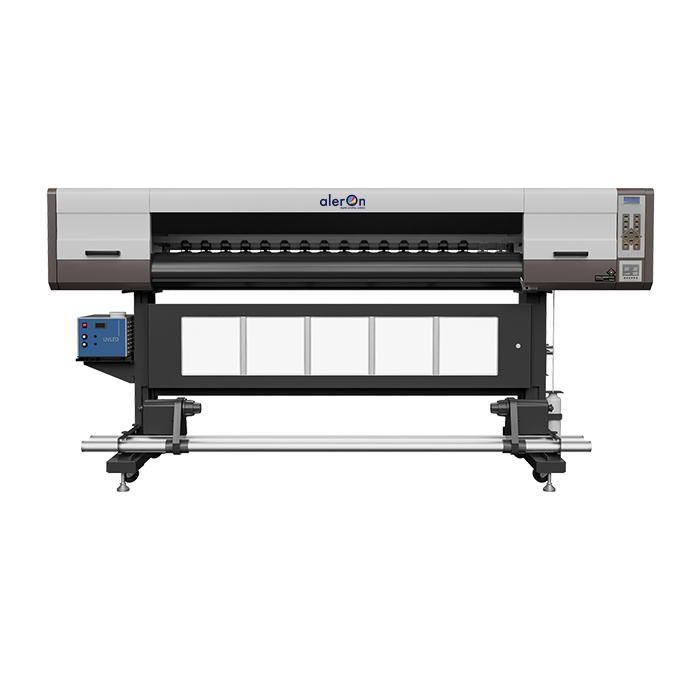

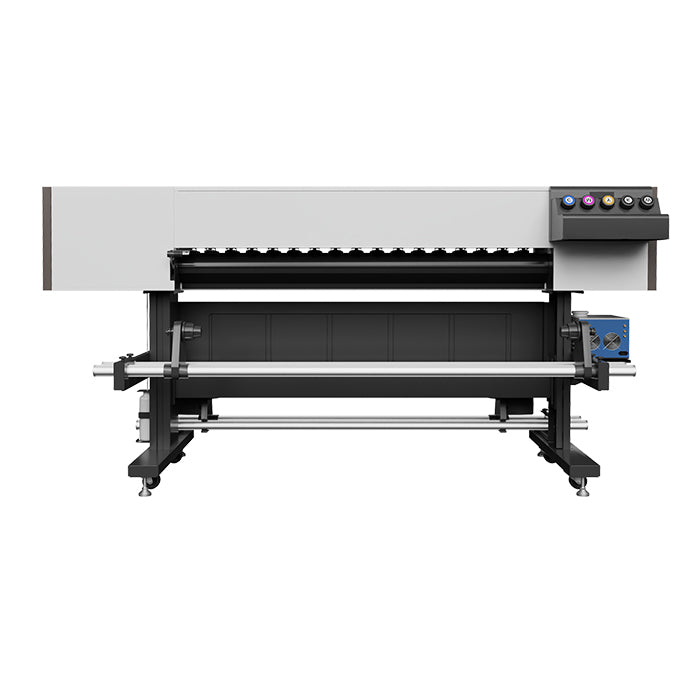

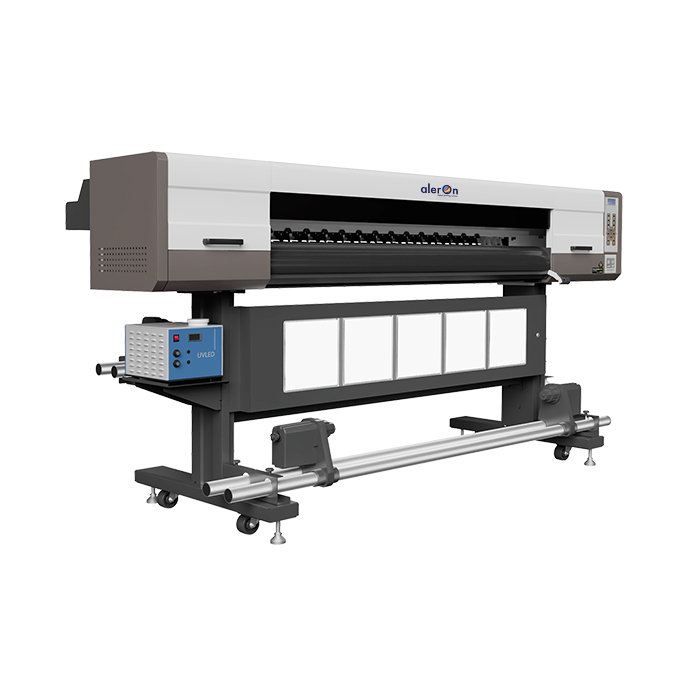

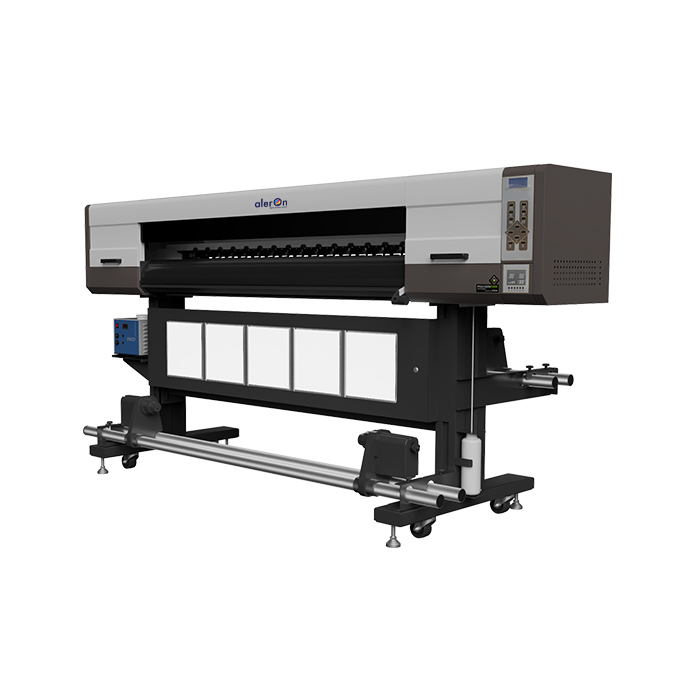

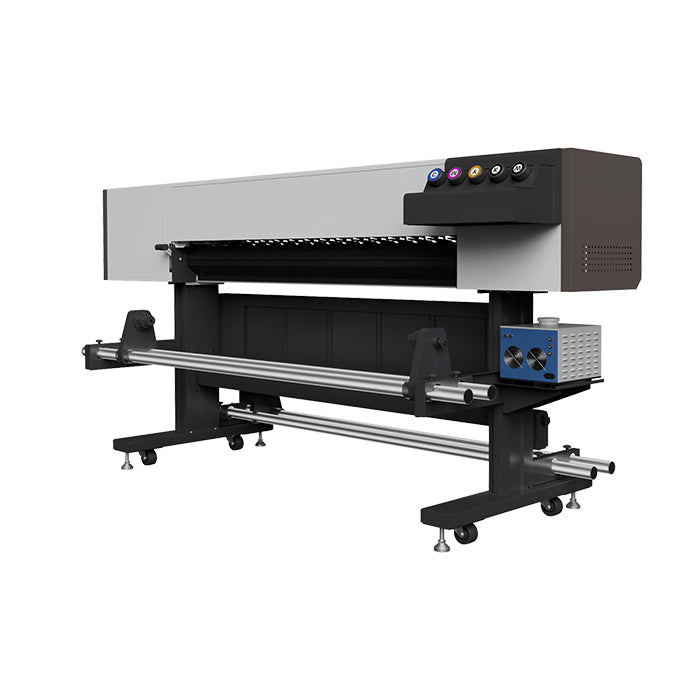

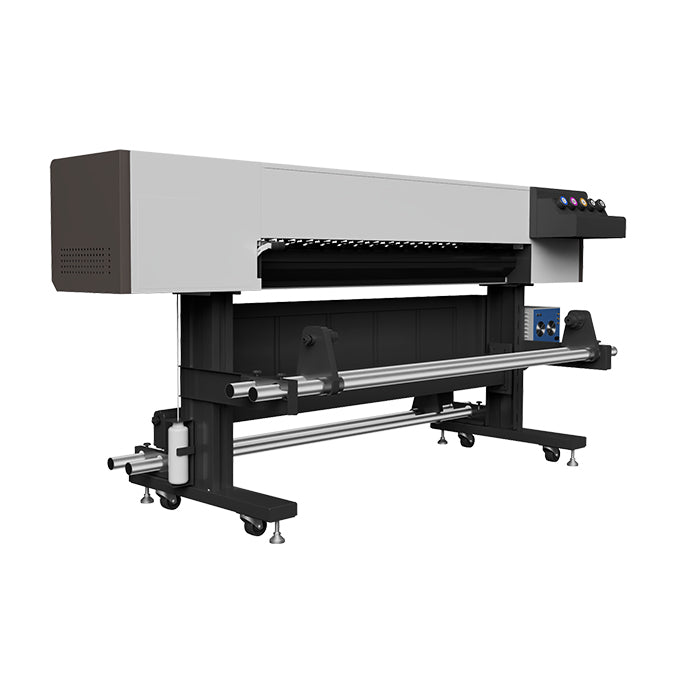

Aleronr Latest Multicolor Digital R2R UV Printing Machine Ultra i3200 1702

Printing Width: 1.6m

Print Head: Epson i3200

Print Head Quantity: 1/2pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color NEW Design UV printer Ulltra i3200 1702

For All Advertising Images Use with High Resolution 1. Epson i3200 Print head2. Max Printing Width is 1.6m3. High Quality !  High Resolution Better Pefermance!

UV Ultra i3200 1702/4 Specifications
Model UV Ultra i3200 1702/4
Printing Technology UV Printing
Print Head EPSON i3200
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl, etc.
Width: ≦1620mm
Ink Type UV Ink: CMYK + LCLM + W + V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop (standard), Photoprint / Print Factory (optional)
Printing Resolution Maximum
Printing Speed
Mode 2H 4H
3 Pass 33㎡/h 62㎡/h
4 Pass 21㎡/h 48㎡/h
6 Pass 11㎡/h 33㎡/h
Ink Drying Method UV Drying
Control System Win10
Power 6100W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L: 125.99 x W: 44.10 x H: 43.31 (1 Inch = 25.4 mm)

Meter:
L: 3.2m x W: 1.12m x H: 1.1m
Printer Dimension Inch:
L: 114.18 x W: 39.38 x H: 66.93 (1 Inch = 25.4 mm)

Meter:
L: 2.9m x W: 1m x H: 1.7m
Weight G.W: 1078 lb. / 490kg (1kg = 2.2 lb.)
N.W: 880 lb. / 400kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified

High Configuration

In addition to its exceptional performance, our High Configuration Integrated Intelligent Control System is also designed with user convenience in mind. The intuitive interface and user-friendly controls make it easy to operate, allowing users to maximize the full potential of the system without the need for extensive training or technical expertise.

Print Your Imagination

Whether you are in the printing business, graphic design industry, or any other field that requires high-quality printing, our High Configuration Integrated Intelligent Control System is the ultimate solution for all your printing needs. Experience the power of advanced technology and elevate your printing capabilities to new heights with our innovative system. Choose our High Configuration Integrated Intelligent Control System and take your printing experience to the next level. Join the ranks of satisfied users who have already embraced the future of printing technology.

i3200 Print Head

Equipped with the state-of-the-art Epson i3200 greyscale printhead, our printing system offers a level of precision and speed that is unmatched in the market. The use of this advanced printhead ensures that the printing speed is significantly faster, while also delivering a more uniform and high-quality inkjet output. This means that you can now achieve superior printing results in a fraction of the time, making it an ideal solution for businesses and professionals who require efficient and high-quality printing.

Intelligent Design

The integrated intelligent control system further enhances the performance of our printing technology. This system is designed to optimize the printing process, ensuring seamless operation and consistent output quality. With intelligent control features, users can experience greater efficiency, reduced downtime, and improved overall productivity.

Aleronr Latest Multicolor Digital R2R UV Printing Machine Ultra i3200 1702

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
