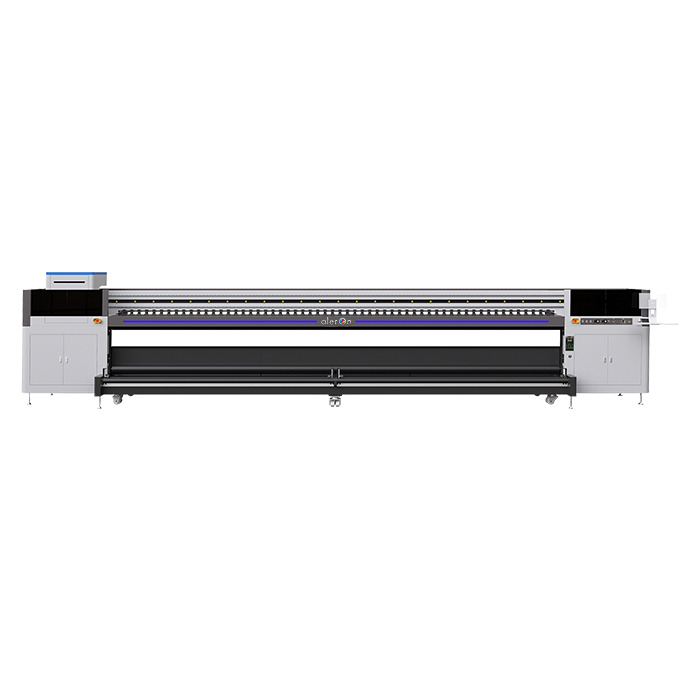

Aleron UVIP 6800 Roll to Roll UV Printer

Printing Width:6.6m

Print Head: Konica 1024a 、Konica 1024i、RICOH G6

Print Head Quantity: 4~24 pcs

Inks: UV ink

RIP Software: Flexiprint(Standard)    Print Factory+Onyx+CALDERA(Optional)

Request a quote
Chat with us

Wit-Color UV printer UVIP 6800

For All Advertising Images Use with High Resolution 1. Konica 1024a Print head2.Max Printing Width 6.6m3. One roll 6.2m banner, or two rolls 3.2m banners. 3.High Quality !  High Resolution!  Better Performance!

UVIP6800 Specifications
Model UVIP6800
Printing Technology UV Printing
Print Head Ricoh / Kyocera / Konica
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Width: One Roll ≦6200mm | Two Rolls ≦3200mm
Thickness: ≦3mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) / PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed
Print Head Mode In-line Staggered Triple Rows Quadruple Rows
Speed
Gen6 Production Mode 40㎡/h 75㎡/h 110㎡/h 150㎡/h
Standard Mode 30㎡/h 60㎡/h 90㎡/h 120㎡/h
High Resolution Mode 20㎡/h 40㎡/h 60㎡/h 80㎡/h
Kyocera Production Mode 70㎡/h 140㎡/h N/A N/A
Standard Mode 50㎡/h 100㎡/h N/A N/A
High Resolution Mode 25㎡/h 50㎡/h N/A N/A
Konica Production Mode N/A 65㎡/h 100㎡/h N/A
Standard Mode N/A 55㎡/h 85㎡/h N/A
High Resolution Mode N/A 40㎡/h 60㎡/h N/A
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 8000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:381.89 x W:82.68 x H:88.58 (1 Inch = 25.4 mm)

Meter:
L:9.7m x W:2.1m x H:2.25m
Printer Dimension Inch:
L:374.02 x W:70.86 x H:80.71 (1 Inch = 25.4 mm)

Meter:
L:9.5m x W:1.8m x H:2.05m
Weight N.W: 2772.73 lb. / 6100kg (1kg = 2.2 lb.)
G.W: 3090.91 lb. / 6800kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified

Super Wide Printing Area

With a maximum printing area of 6.6 meters, the UVIP  6800 is designed to effortlessly handle large-scale projects, making it an ideal choice for businesses aiming to create impactful advertising materials. Its high-resolution capabilities ensure superior performance, enabling the production of stunning, detailed images that captivate your audience.

Printhead Flexibility

Printheads of Konica 1024a or 1024i or RICOH G6 are optional.

High Configuration

Featuring high configuration and advanced technology, this printer offers unmatched stability and reliability, delivering consistent, high-quality results with every print. Its versatile application range makes it suitable for various industries, from signage and displays to promotional materials and beyond.

Intelligent Design

Equipped with an automatic cleaning system, the UVIP Gen6 3300 simplifies maintenance and ensures optimal performance at all times. The user-friendly operation panel facilitates easy control and monitoring of the printing process, while the intelligent ink detection system minimizes wastage and streamlines ink management.

Eco-Friendly, High-Resolution Printing

With its odorless operation and reduced environmental impact, the Wit-Color UVIP 6800  is designed to be both user-friendly and eco-friendly. Ideal for both printing professionals and business owners looking to execute their advertising visions, this UV printer offers unparalleled high-resolution and high-performance printing, making it the top choice for those who prioritize quality and sustainability.

Front-lit & Back-lit Effects 2 in 1

This printer could realize front-lit & back-lit effects two in one. The cost is much less than double side printing, the back-lit image color saturation is sharp but not dark comparing with traditional back-lit printing mode. And while the lights was turned on, the image color will not be light, so we called this application as Single Side Printing with Double Sides Printing Effects.

Aleron UVIP 6800 Roll to Roll UV Printer

· Super Wide Materials

· Traffic system signage

· Banners

· Posters

· Displays

· Commercial exhibits

· Personalized car stickers

· Various substrates (e.g., vinyl, plastic, metal)
