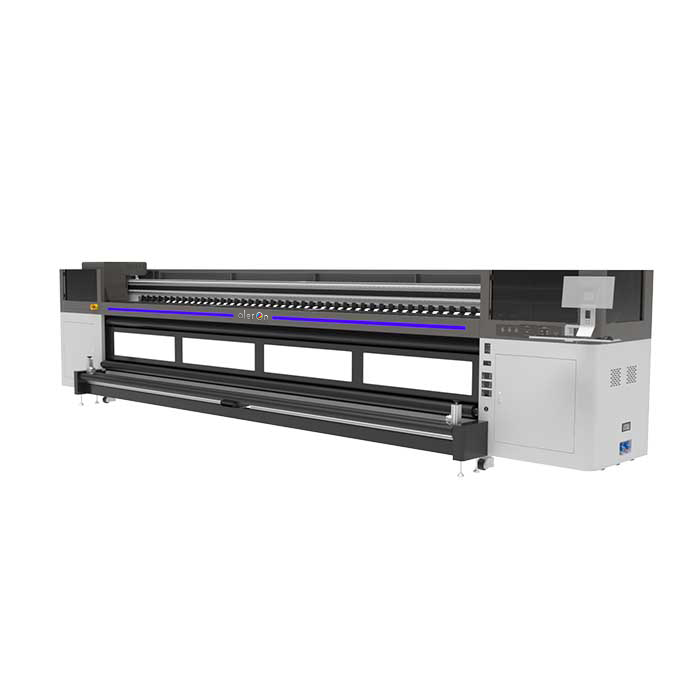

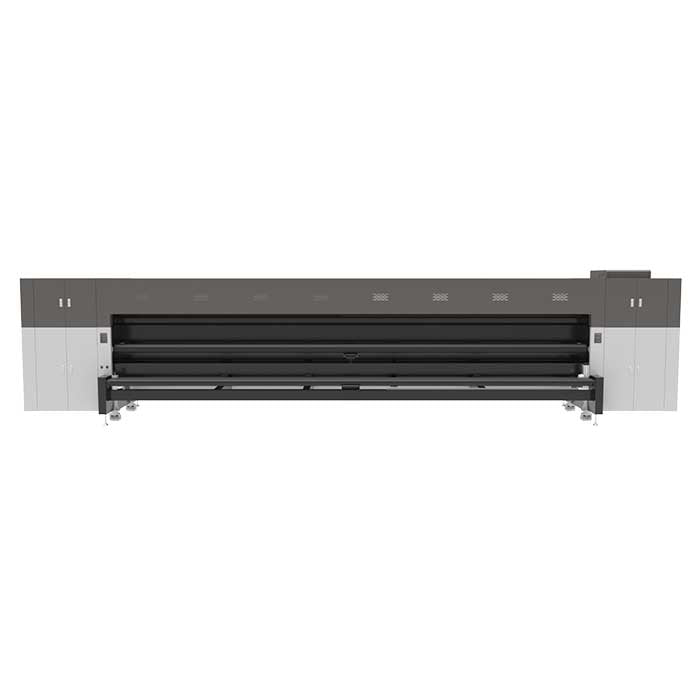

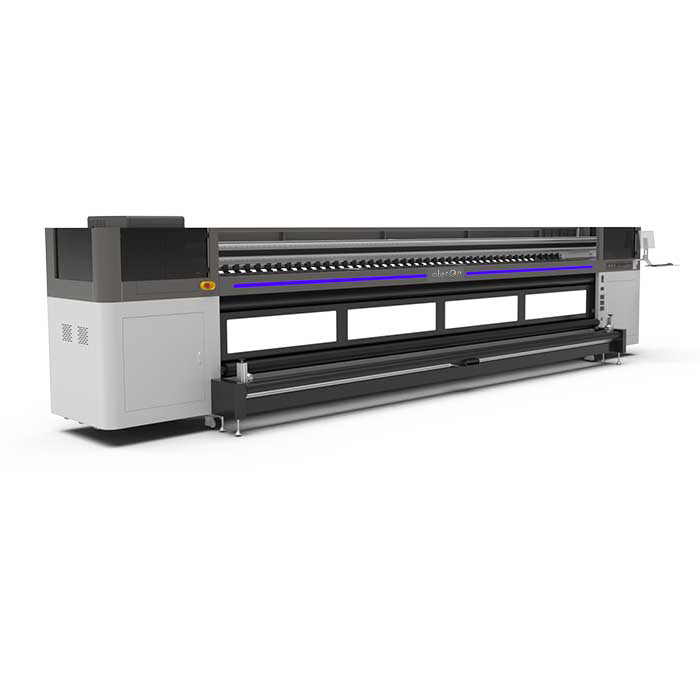

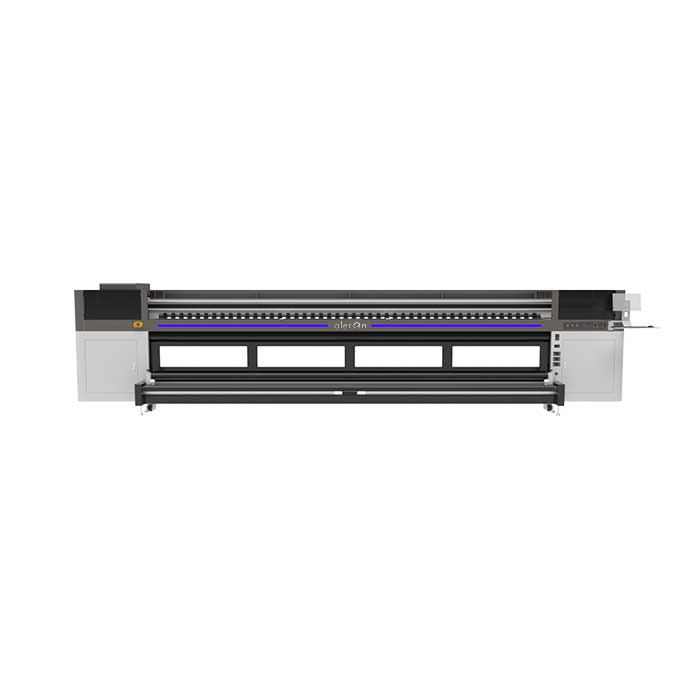

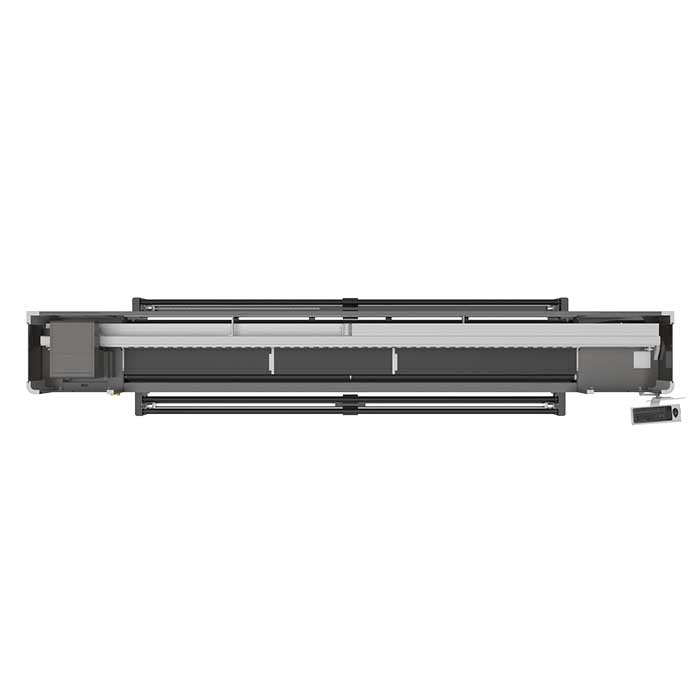

Aleron UVIP 5518 Roll to Roll UV Printer
Printing Width:5.3m
Print Head: Konica 1024a 、Konica 1024i
Print Head Quantity: 4~24 pcs
Inks: UV ink
RIP Software: Flexiprint(Standard) Print Factory+Onyx+CALDERA(Optional)
Printing Width:5.3m
Print Head: Konica 1024a 、Konica 1024i
Print Head Quantity: 4~24 pcs
Inks: UV ink
RIP Software: Flexiprint(Standard) Print Factory+Onyx+CALDERA(Optional)
| UVIP 5518 Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | UVIP 5518 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Technology | UV Printing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Print Head | RICOH / Kyocera / Konica | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Acceptable Media |
Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc. Width: One Roll ≦5300mm Thickness: ≦3mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Type | UV Ink: CMYK LCLM W V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon + White ink auto-stirring Color: CMYK + LC + LM + W + Varnish |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RIP Software | Photoprint(Standard) / PrintFactory / Onyx / Caldera(optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Resolution | Maximum | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Speed |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Curing Method | Dual UV LED Lights | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Control System | Win10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | 4500W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | Gigabit Ethernet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| UPS | 3KVA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Air Source | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packing Dimension |
Inch: L:298.43 x W:66.93 x H:82.68 (1 Inch = 25.4 mm) Meter: L:7.58m x W:1.7m x H:2.1m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printer Dimension |
Inch: L:311.02 x W:70.86 x H:77.17 (1 Inch = 25.4 mm) Meter: L:7.9m x W:1.8m x H:1.96m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
N.W: 1636.36 lb. / 3600kg (1kg = 2.2 lb.) G.W: 1909.09 lb. / 4200kg (1kg = 2.2 lb.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity:35 to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity:35 to 80% (No Condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Certification | CE Certified | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
