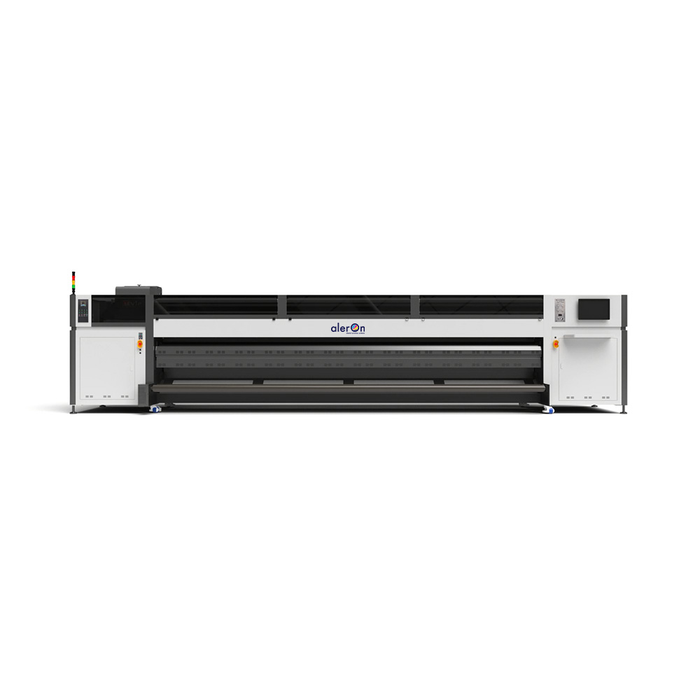

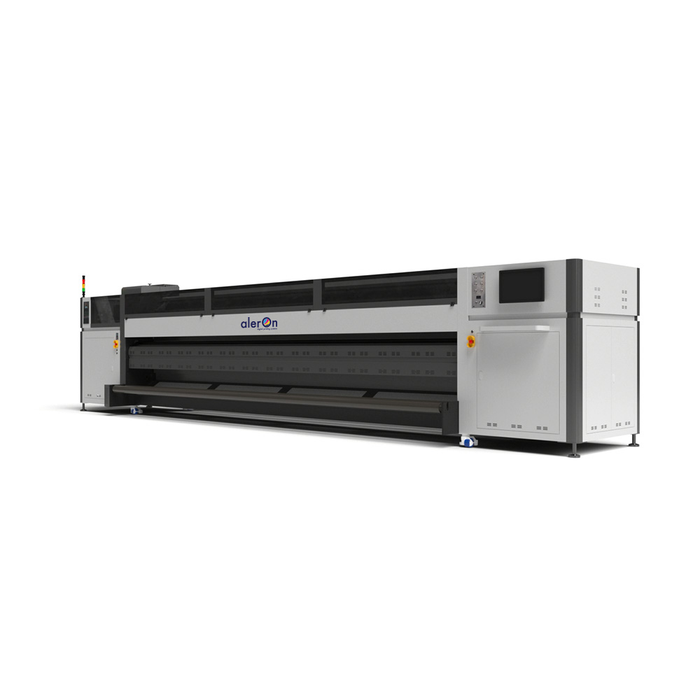

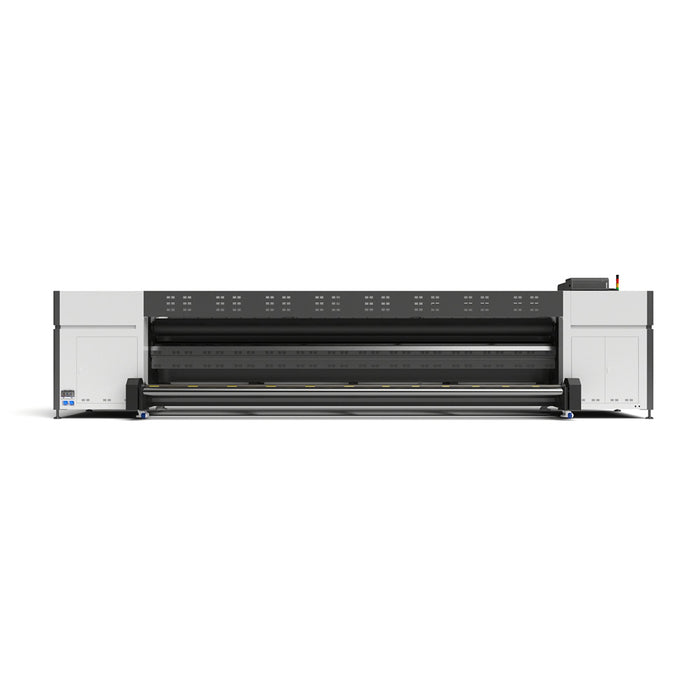

Aleron Rubber Roller Multicolor Digital R2R UV Printing Machine UVIP Gen6 5300

Printing Width: 5.2m

Print Head: Ricoh Gen6

Print Head Quantity: 6~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color UV printer UVIP Gen6 5300

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 5.2m3. High Quality!  High Resolution Better Pefermance!

UVIP R5300 Specifications
Model UVIP R5300
Printing Technology UV Printing
Print Head Ricoh Gen6
Acceptable Media Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc.
Width: ≦5300mm
Thickness: ≦130mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed
Mode In-line Staggered Triple Rows
Production Mode 40㎡/h 75㎡/h 110㎡/h
Standard Mode 30㎡/h 60㎡/h 90㎡/h
High Resolution Mode 20㎡/h 40㎡/h 60㎡/h
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 3000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:180.31 x W:89.76 x H:65.75 (1 Inch = 25.4 mm)

Meter:
L:4.58m x W:2.28m x H:1.67m
Printer Dimension Inch:
L:185.04 x W:123.62 x H:66.93 (1 Inch = 25.4 mm)

Meter:
L:4.7m x W:3.14m x H:1.7m
Weight N.W: 1872.2 lb. / 851kg (1kg = 2.2 lb.)
G.W: 2624.6 lb. / 1193kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified

Enhanced ConfigurationFeaturing an integrated intelligent control system and employing the Gen6 greyscale printhead, our printer achieves swifter printing speeds and ensures more uniform inkjet distribution.Advanced MachineryConstructed with high-quality guide rails and drag chains, our printer boasts enhanced durability and reduced noise levels. Experience smoother operation and superior printing quality.Unrivaled StabilityWith a robust hard oxidation and segmented adsorption platform, alongside an all-steel welded frame, our printer guarantees unmatched stability throughout the printing process, resulting in superior printing quality.Versatile ApplicationsCapable of printing on a wide array of materials, our printer offers unparalleled versatility to meet diverse printing needs.

Automated Cleaning SystemEquipped with an automatic nozzle cleaning feature, our printer prevents ink residue buildup, ensuring consistent printing quality and accuracy.Intuitive OperationFeaturing a user-friendly operation panel with clear interface and single-click functionality, our printer enables efficient and hassle-free printing processes.Intelligent Ink MonitoringOur printer incorporates a real-time ink detection system, allowing continuous monitoring of ink levels to prevent downtime and production interruptions.Efficient CuringUtilizing UV LED lamps for curing, our printer eliminates the need for preheating, achieving rapid curing and exceptional durability, ensuring immediate usability of printed materials.



Aleron Rubber Roller Multicolor Digital R2R UV Printing Machine UVIP Gen6 5300

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
