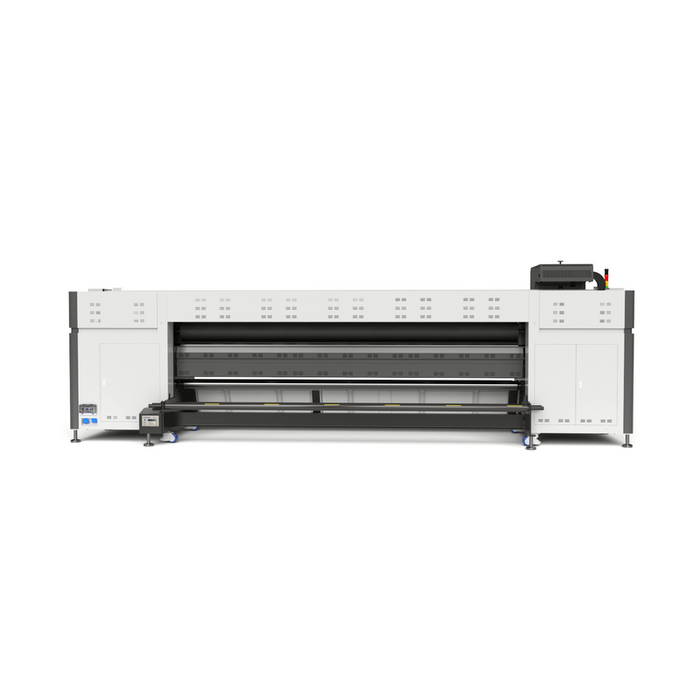

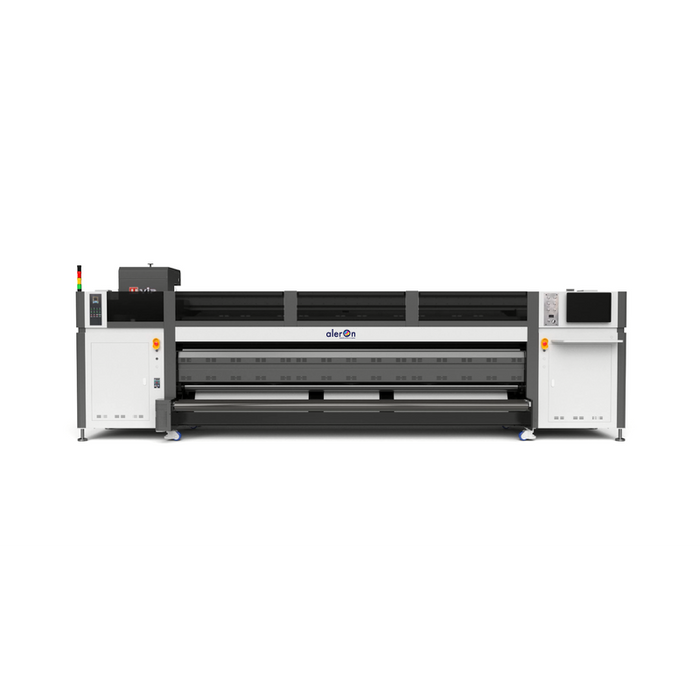

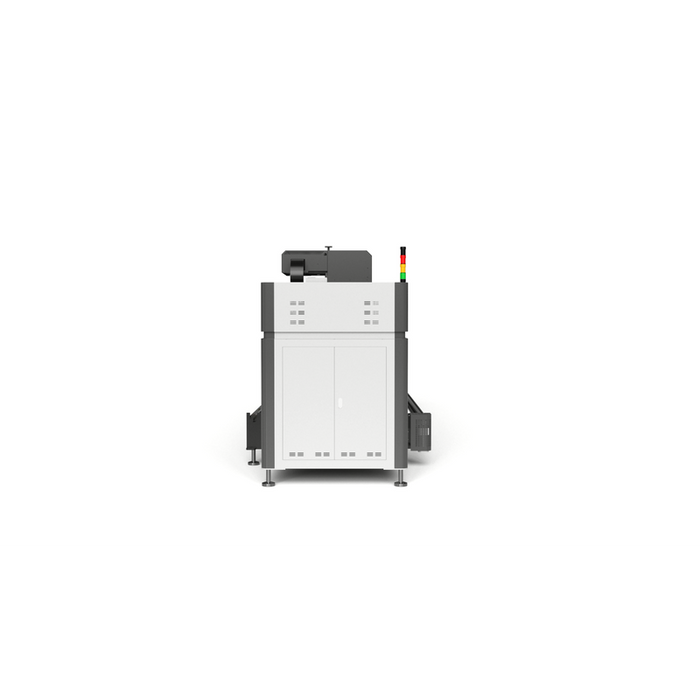

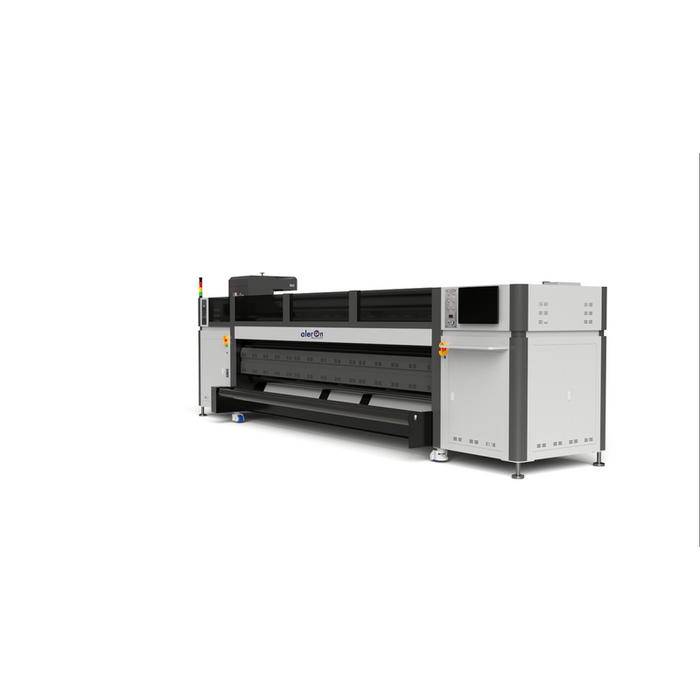

Aleron Rubber Roller Multicolor Digital R2R UV Printing Machine UVIP Gen6 3300

Aleron Rubber Roller Multicolor Digital R2R UV Printing Machine UVIP Gen6 3300

by Aleron Digital Printing System

Printing Width: 3.2m

Print Head: Ricoh Gen6

Print Head Quantity: 2~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color UV printer UVIP Gen6 3300

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 3.2m3. High Quality !  High Resolution Better Pefermance!

UVIP 3300 (Ricoh Gen6) Specifications
Model UVIP 3300
Printing Technology UV Printing
Print Head Ricoh Gen6
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Width: ≦3200mm
Thickness: ≦70mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed
Mode In-line Staggered Triple Rows
Production Mode 40㎡/h 75㎡/h 110㎡/h
Standard Mode 30㎡/h 60㎡/h 90㎡/h
High Resolution Mode 20㎡/h 40㎡/h 60㎡/h
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 5000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:228.35 x W:71.65 x H:70.87
L:125.98 x W:18.11 x H:50.39
L:28.34 x W:22.05 x H:37.01
(1 Inch = 25.4 mm)

Meter:
L:5.80m x W:1.82m x H:1.80m
L:3.20m x W:0.46m x H:1.28m
L:0.72m x W:0.56m x H:0.94m
Printer Dimension Inch:
L:220.47 x W:145.67 x H:64.57 (1 Inch = 25.4 mm)

Meter:
L:5.6m x W:3.7m x H:1.64m
Weight N.W: 4686 lb. / 2130kg (1kg = 2.2 lb.)
G.W: 6050 lb. / 2750kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified


UVIP 3300 (Kyocera) Specifications
Model UVIP 3300
Printing Technology UV Printing
Print Head Kyocera
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Width: ≦3200mm
Thickness: ≦70mm
Ink Type UV Ink: CMYK LCLM W
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed
Mode In-line Staggered Triple Rows
Production Mode 70㎡/h 140㎡/h 210㎡/h
Standard Mode 50㎡/h 100㎡/h 150㎡/h
High Resolution Mode 25㎡/h 50㎡/h 75㎡/h
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 5000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:228.35 x W:71.65 x H:70.87
L:125.98 x W:18.11 x H:50.39
L:28.34 x W:22.05 x H:37.01
(1 Inch = 25.4 mm)

Meter:
L:5.80m x W:1.82m x H:1.80m
L:3.20m x W:0.46m x H:1.28m
L:0.72m x W:0.56m x H:0.94m
Printer Dimension Inch:
L:220.47 x W:145.67 x H:64.57 (1 Inch = 25.4 mm)

Meter:
L:5.6m x W:3.7m x H:1.64m
Weight N.W: 968.18 lb. / 2130kg (1kg = 2.2 lb.)
G.W: 1250 lb. / 2750kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified
Get The Best Price

Print Your Imagination

The UVIP Gen6 3300 boasts a maximum printing area of 3.2 meters, Discover the future of printing technology with the High Configuration Inkjet Printer. It's time to unleash the full potential of your printing operations and achieve remarkable results with every print job.

High Configuration

Equipped with top-tier features and state-of-the-art technology, this printer ensures remarkable stability and dependability, consistently producing high-quality prints. Its adaptability makes it ideal for diverse applications across various industries, such as signage, displays, promotional materials, and beyond.

Intelligent Design

The UVIP Gen6 3300 comes equipped with an automatic cleaning system, which simplifies maintenance and ensures optimal performance at all times. The user-friendly control panel allows for easy operation and monitoring of the printing process, while the intelligent ink detection system helps to prevent waste and streamline ink management.

Eco-Friendly, High-Resolution Printing

With its odorless operation and reduced environmental impact, the Wit-Color UVIP Gen6 3300 is designed to be both user-friendly and eco-friendly. Ideal for both printing professionals and business owners looking to execute their advertising visions, this UV printer offers unparalleled high-resolution and high-performance printing, making it the top choice for those who prioritize quality and sustainability.



Aleron Rubber Roller Multicolor Digital R2R UV Printing Machine UVIP Gen6 3300

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
