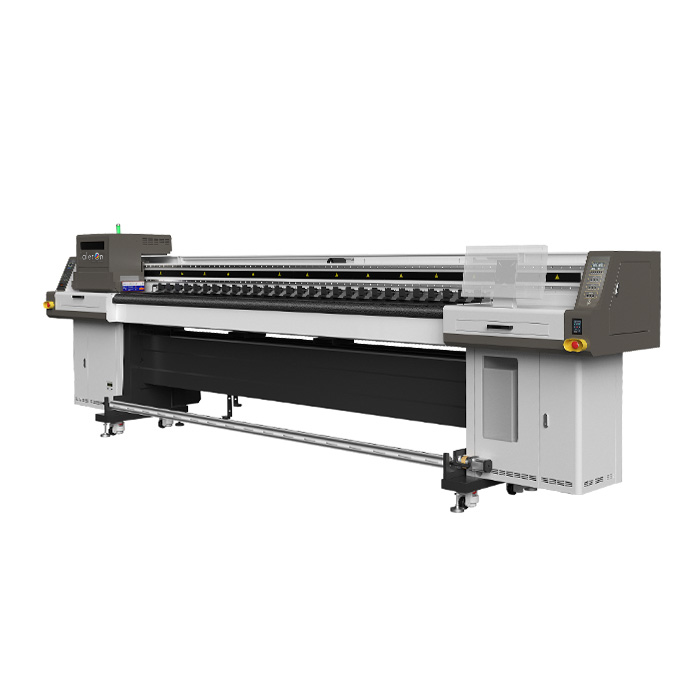

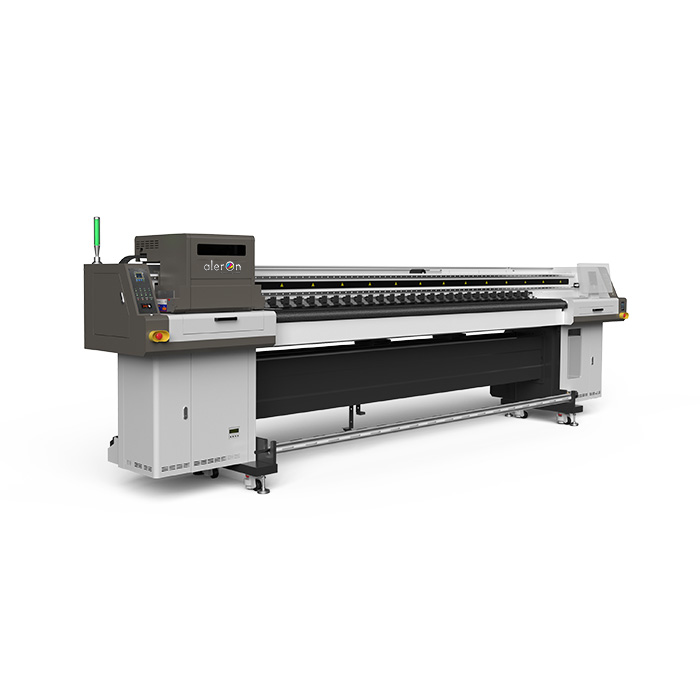

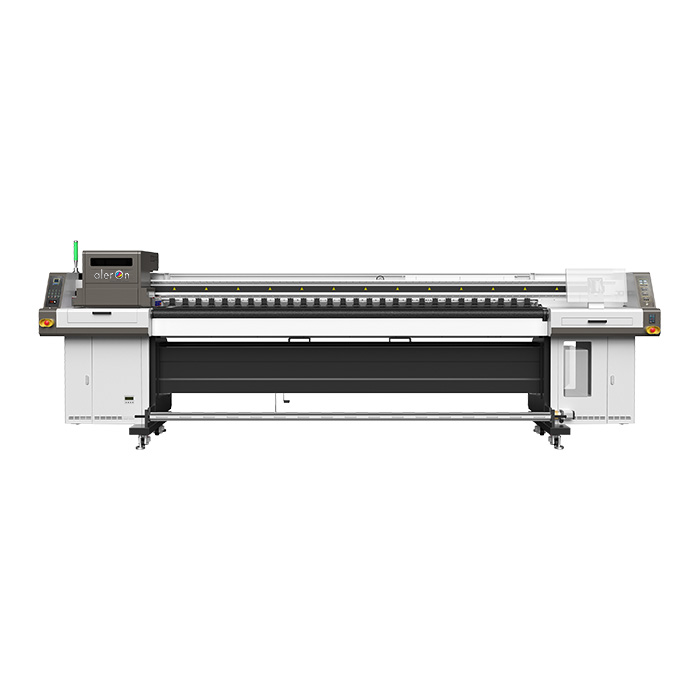

Aleron Pinch Roller R2R LED UV Printer UVIP 3308

Printing Width: 3.2m

Print Head: Ricoh Gen6

Print Head Quantity: 2~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color UV printer UVIP Gen6 3300

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 3.2m3. High Quality !  High Resolution Better Pefermance!

Wit-Color Pinch Roller R2R LED UV Printer UVIP 3300 Specifications
Model Wit-Color Pinch Roller R2R LED UV Printer UVIP 3300
Printing Technology UV Printing
Print Head Ricoh Gen6 (Kyocera, Konica Optional)
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Width: ≦3300mm
Thickness: ≦10mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC + LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed Gen6
Mode In-line Staggered Triple Rows Quadruple Rows
Production Mode 40㎡/h 75㎡/h 110㎡/h 150㎡/h
Standard Mode 30㎡/h 60㎡/h 90㎡/h 120㎡/h
High Resolution Mode 20㎡/h 40㎡/h 60㎡/h 80㎡/h
Kyocera
Mode In-line Staggered Triple Rows Quadruple Rows
Production Mode 70㎡/h 140㎡/h N/A N/A
Standard Mode 50㎡/h 100㎡/h N/A N/A
High Resolution Mode 25㎡/h 50㎡/h N/A N/A
Konica
Mode In-line Staggered Triple Rows Quadruple Rows
Production Mode N/A 65㎡/h 100㎡/h N/A
Standard Mode N/A 55㎡/h 85㎡/h N/A
High Resolution Mode N/A 40㎡/h 60㎡/h N/A
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 3600W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:227.17 x W:74.80 x H:78.74 (1 Inch = 25.4 mm)

Meter:
L:5.77m x W:1.90m x H:2.00m
Printer Dimension Inch:
L:216.54 x W:51.57 x H:71.65 (1 Inch = 25.4 mm)

Meter:
L:5.5m x W:1.31m x H:1.82m
Weight N.W: 5280 lb. / 2400kg (1kg = 2.2 lb.)
G.W: 6600 lb. / 3000kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified

Extensive Printing AreaWith a maximum printing area of 3.2 meters, the UVIP Gen6 3300 is designed to effortlessly handle large-scale projects, making it an ideal choice for businesses aiming to create impactful advertising materials. Its high-resolution capabilities ensure superior performance, enabling the production of stunning, detailed images that captivate your audience.High ConfigurationFeaturing high configuration and advanced technology, this printer offers unmatched stability and reliability, delivering consistent, high-quality results with every print. Its versatile application range makes it suitable for various industries, from signage and displays to promotional materials and beyond.Intelligent DesignEquipped with an automatic cleaning system, the UVIP Gen6 3300 simplifies maintenance and ensures optimal performance at all times. The user-friendly operation panel facilitates easy control and monitoring of the printing process, while the intelligent ink detection system minimizes wastage and streamlines ink management.Eco-Friendly, High-Resolution PrintingWith its odorless operation and reduced environmental impact, the Wit-Color UVIP Gen6 3300 is designed to be both user-friendly and eco-friendly. Ideal for both printing professionals and business owners looking to execute their advertising visions, this UV printer offers unparalleled high-resolution and high-performance printing, making it the top choice for those who prioritize quality and sustainability.

Aleron Pinch Roller R2R LED UV Printer UVIP 3308

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
