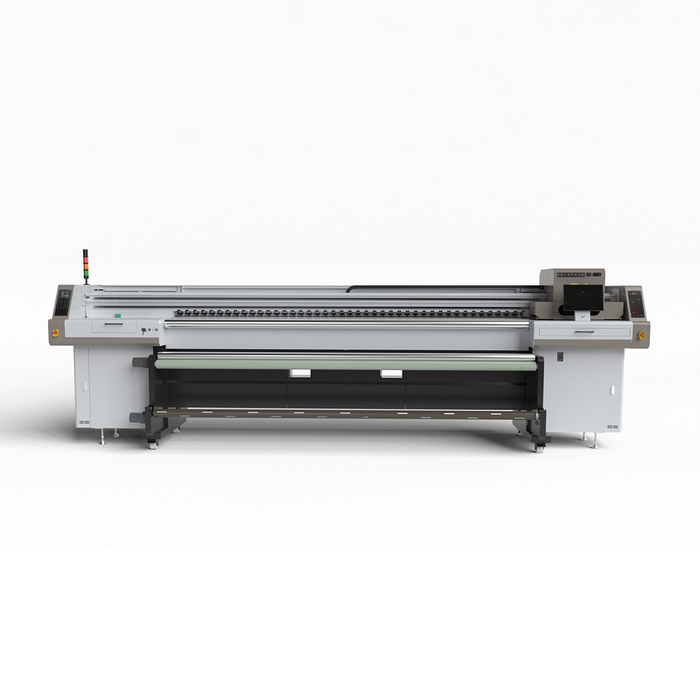

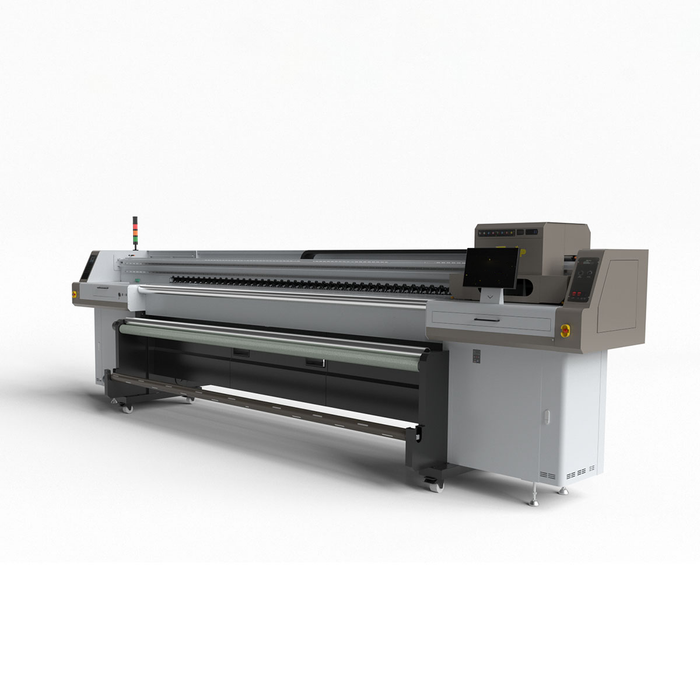

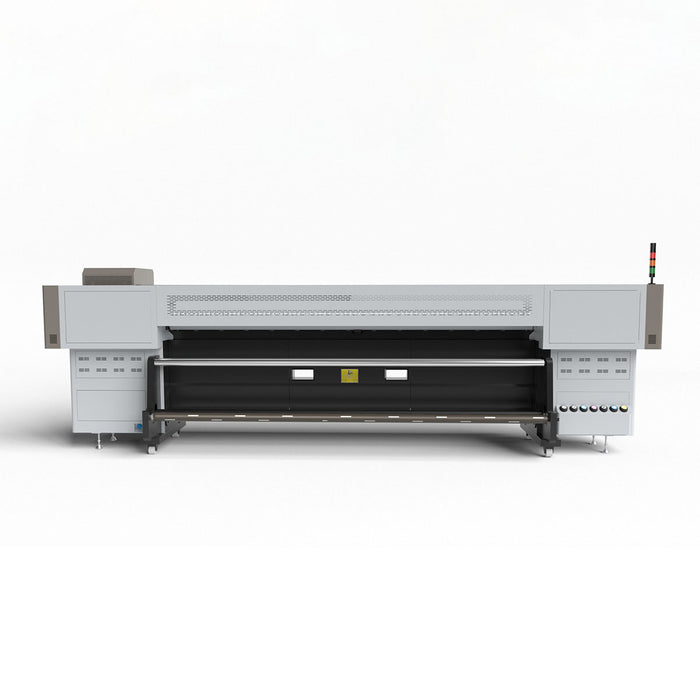

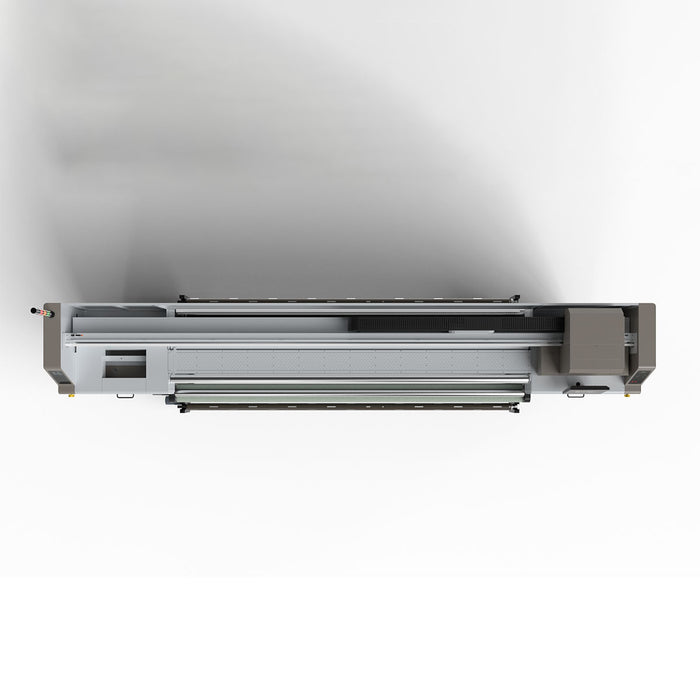

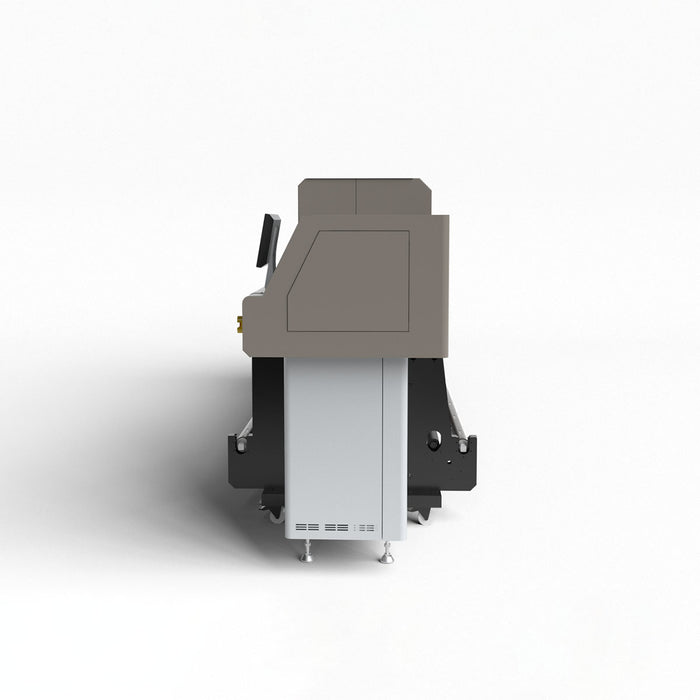

Aleron Pinch Roller R2R LED UV Printer UVIP 3300
Printing Width: 3.2m
Print Head: Ricoh Gen6
Print Head Quantity: 2~16 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
Printing Width: 3.2m
Print Head: Ricoh Gen6
Print Head Quantity: 2~16 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
| Wit-Color Pinch Roller R2R LED UV Printer UVIP 3300 Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Wit-Color Pinch Roller R2R LED UV Printer UVIP 3300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Technology | UV Printing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Print Head | Ricoh Gen6 (Kyocera, Konica Optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Acceptable Media |
Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc. Width: ≦3300mm Thickness: ≦10mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Type | UV Ink: CMYK LCLM W V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon + White ink auto-stirring Color: CMYK + LC + LM + W + Varnish |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RIP Software | Photoprint(Standard) PrintFactory / Onyx / Caldera(optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Resolution | Maximum | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printing Speed |
Ricoh Gen6
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ink Curing Method | Dual UV LED Lights | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Control System | Win10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | 3600W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | Gigabit Ethernet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| UPS | 3KVA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Air Source | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packing Dimension |
Inch: L:227.17 x W:74.80 x H:78.74 (1 Inch = 25.4 mm) Meter: L:5.77m x W:1.90m x H:2.00m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Printer Dimension |
Inch: L:216.54 x W:51.57 x H:71.65 (1 Inch = 25.4 mm) Meter: L:5.5m x W:1.31m x H:1.82m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
N.W: 5280 lb. / 2400kg (1kg = 2.2 lb.) G.W: 6600 lb. / 3000kg (1kg = 2.2 lb.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity:35 to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity:35 to 80% (No Condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Certification | CE Certified | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
