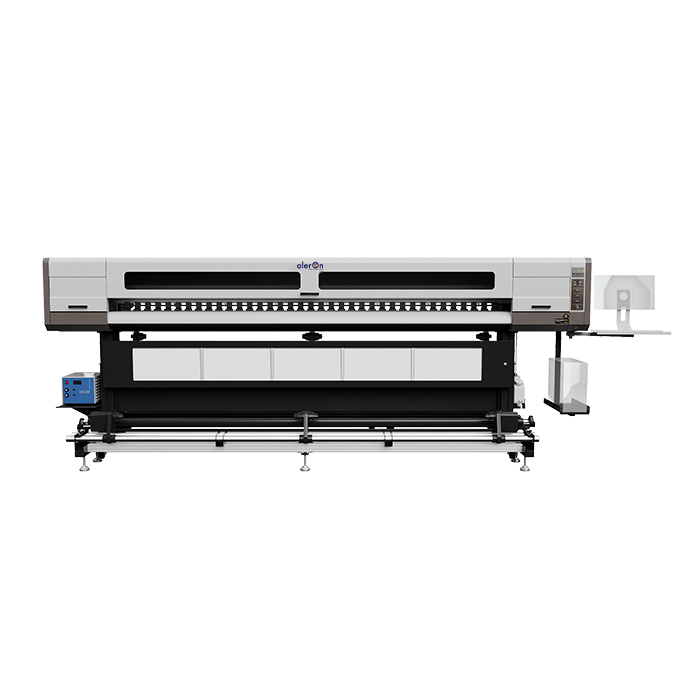

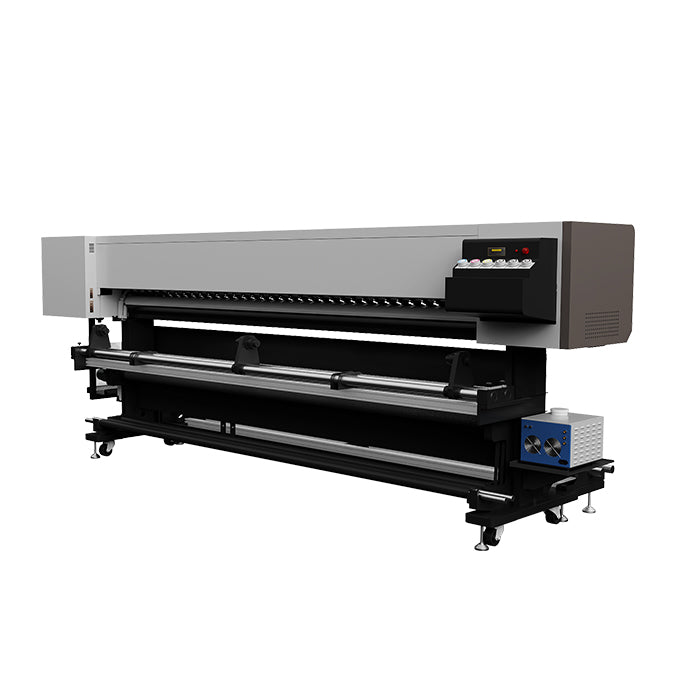

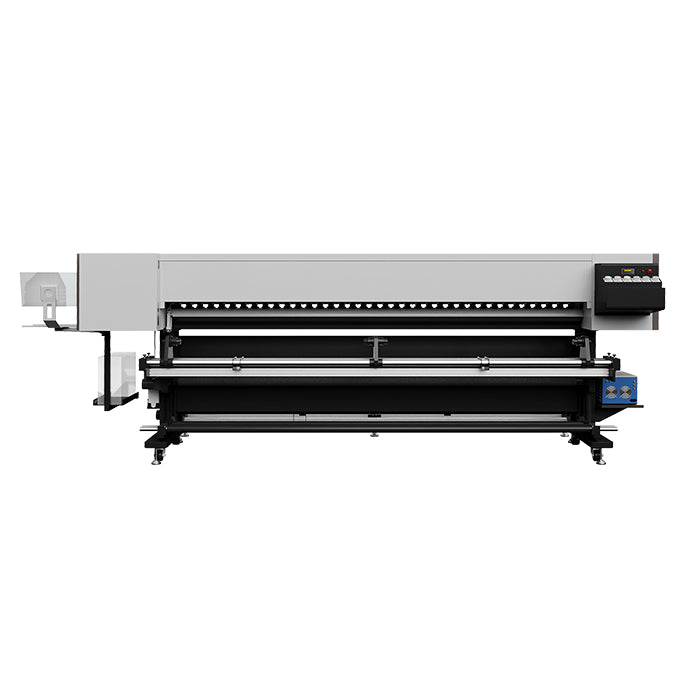

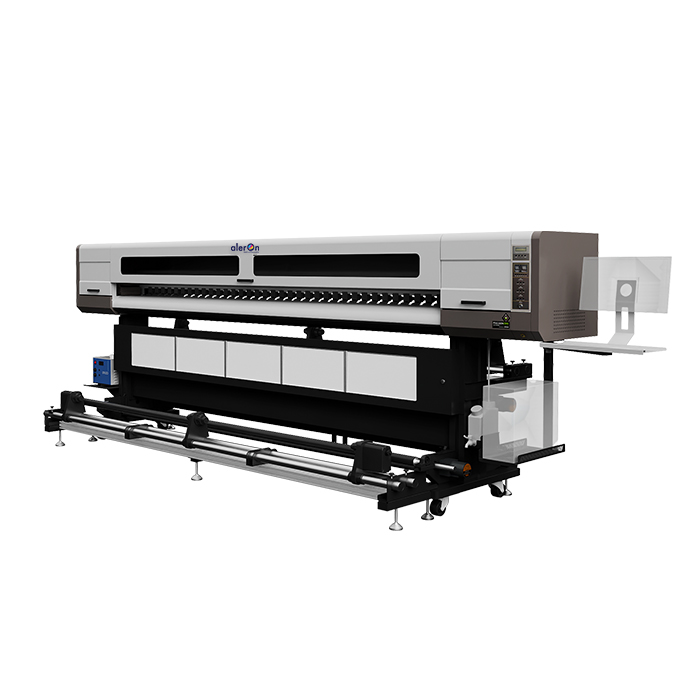

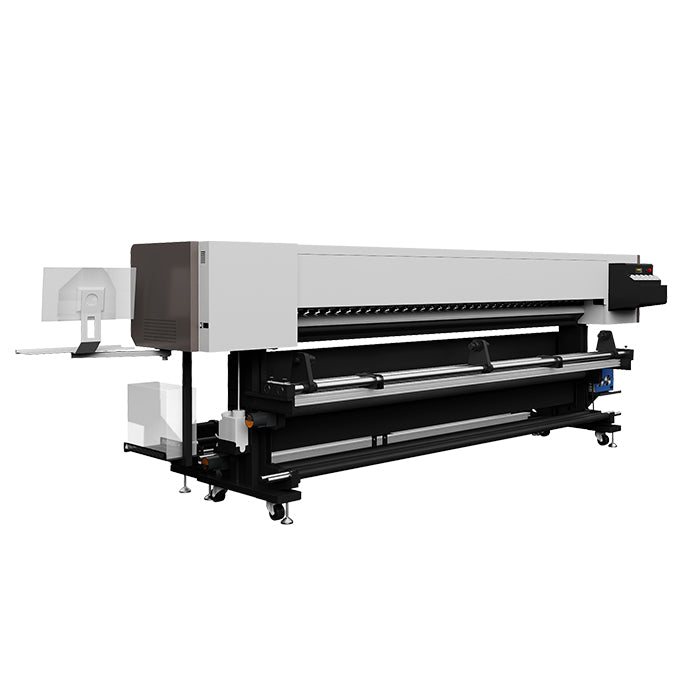

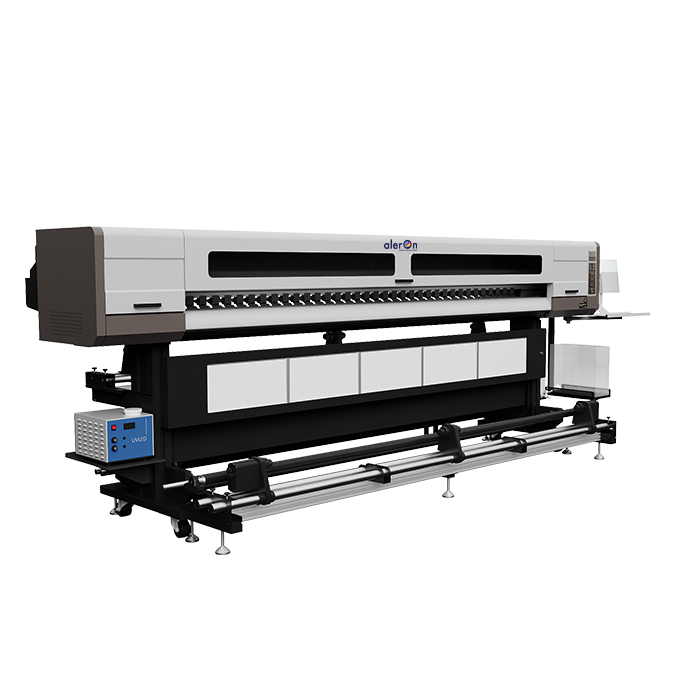

Aleron Multicolor Digital UV Printing Machine Ultra i3200 3304-DMFT
Printing Width: 3.2m
Print Head: Epson i3200
Print Head Quantity: 4 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
Printing Width: 3.2m
Print Head: Epson i3200
Print Head Quantity: 4 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
| Ultra i3200 3302/4 UV Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Ultra i3200 3302/4 | ||||||||||||
| Printing Technology | UV Printing | ||||||||||||
| Print Head | EPSON i3200 | ||||||||||||
| Acceptable Media |
Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.) Width: ≦3200mm |
||||||||||||
| Ink Type | CMYK UV Ink | ||||||||||||
| Ink Supply | Siphon ink supply | ||||||||||||
| Ink Cartridges |
Capacity: Color Siphon Color: CMYK |
||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||
| RIP Software | Maintop(standard) Photoprint / Print Factory(optional) | ||||||||||||
| Printing Resolution | Maximum | ||||||||||||
| Printing Speed |
|
||||||||||||
| Ink Drying Method | UV Drying | ||||||||||||
| Control System | Win10 | ||||||||||||
| Power | 1250W | ||||||||||||
| Interface | USB3.0 / Gigabit Ethernet | ||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||
| UPS | 3KVA | ||||||||||||
| Packing Dimension |
Inch: L:138.59 x W:44.10 x H:43.31 (1 Inch = 25.4 mm) Meter: L:3.52m x W:1.12m x H:1.1m |
||||||||||||
| Printer Dimension |
Inch: L:192.92 x W:51.19 x H:69.69 (1 Inch = 25.4 mm) Meter: L:4.9m x W:1.3m x H:1.77m |
||||||||||||
| Weight |
G.W: 1760 lb. / 880kg (1kg = 2.2 lb.) N.W: 1560 lb. / 780kg (1kg = 2.2 lb.) |
||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity:35 to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity:35 to 80% (No Condensation) |
||||||||||||
| Safety Certification | Safety Certification | ||||||||||||
