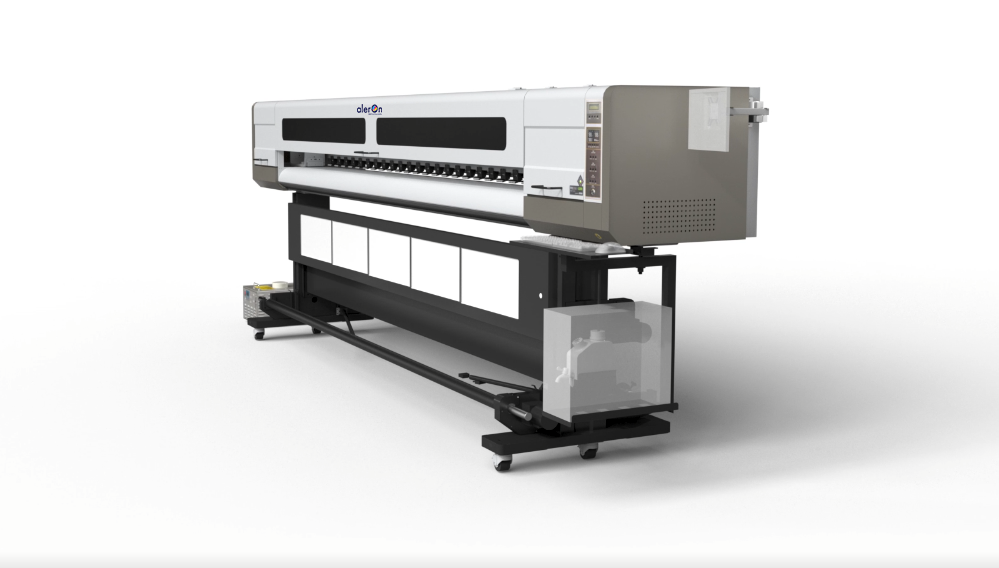

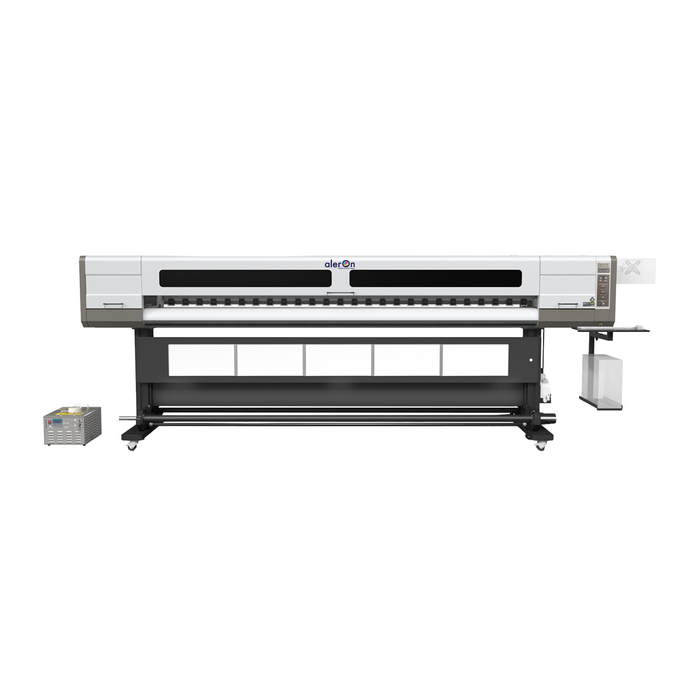

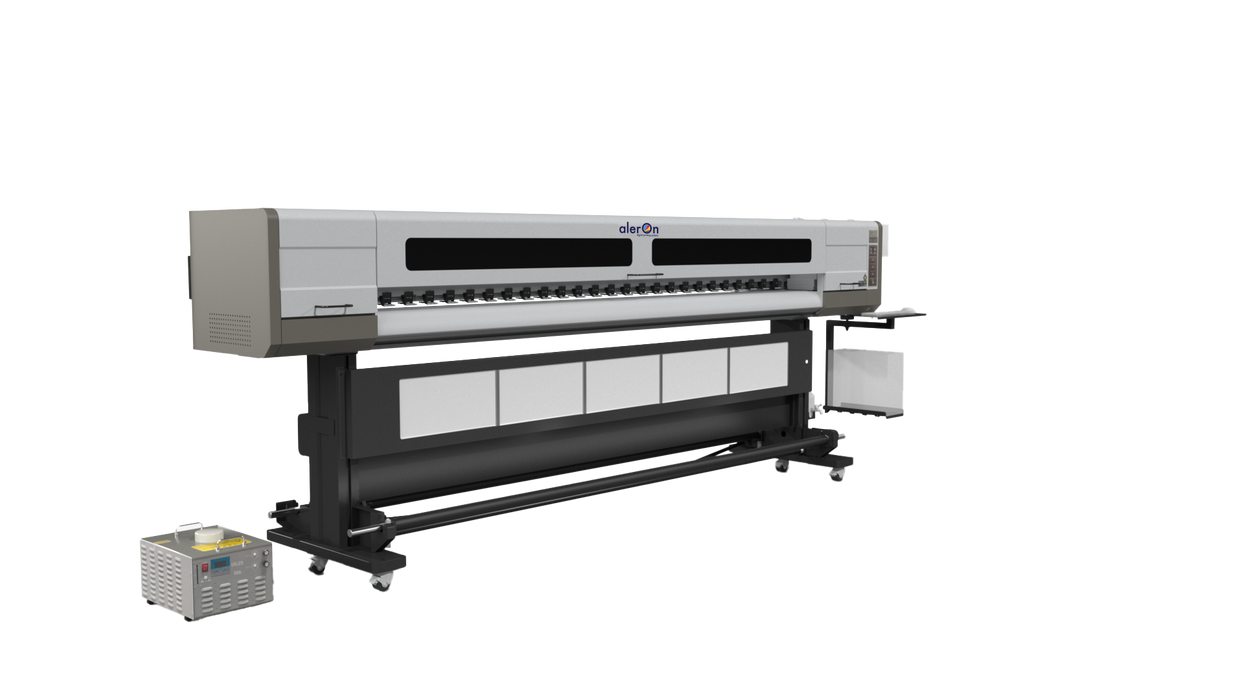

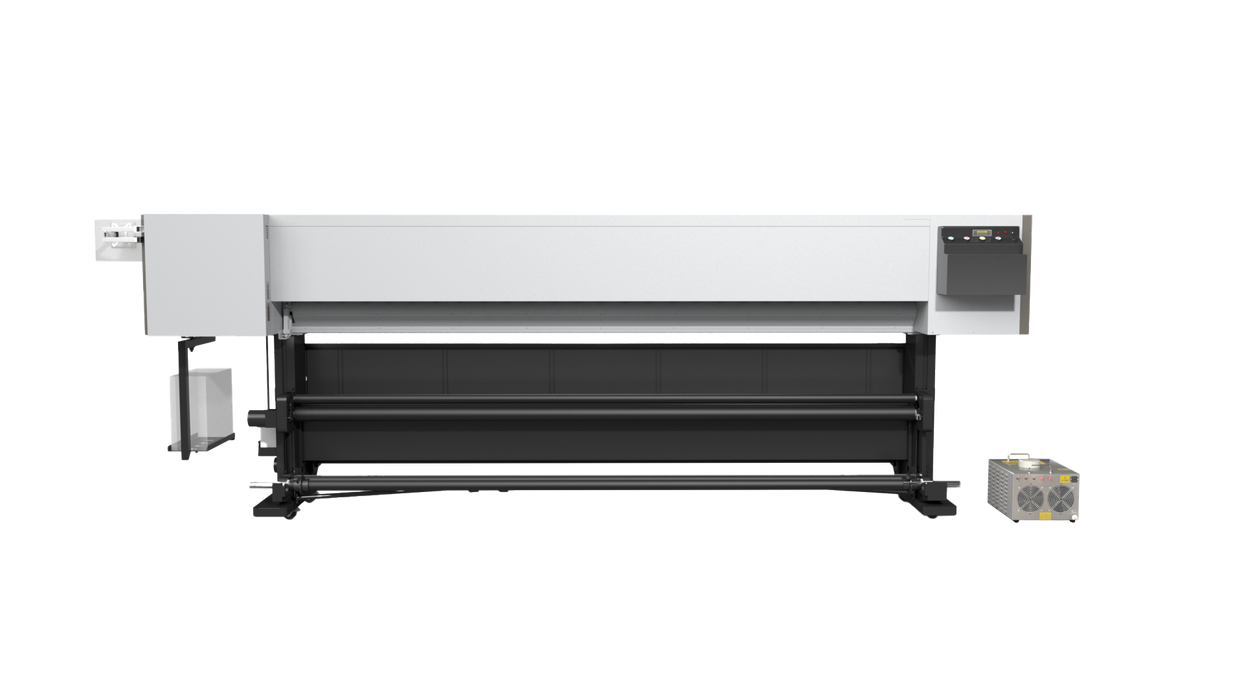

Aleron Multicolor Digital UV Printing Machine Ultra i3200 3304

Printing Width: 3.2m

Print Head: Epson i3200

Print Head Quantity: 4 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color UV printer Ultra i3200 3304

For All Advertising Images Use with High Resolution 1. Epson i3200 Print head2. Max Printing Area is 3.2m3. High Quality !  High Resolution Better Pefermance!

Ultra i3200 3302/4 UV Specifications
Model Ultra i3200 3302/4
Printing Technology UV Printing
Print Head EPSON i3200
Acceptable Media Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.)
Width: ≦3200mm
Ink Type CMYK UV Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity: Color Siphon
Color: CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop(standard) Photoprint / Print Factory(optional)
Printing Resolution Maximum
Printing Speed
Mode 2H 4H
3 Pass 25㎡/h 48㎡/h
4 Pass 18㎡/h 32㎡/h
6 Pass 12㎡/h 22㎡/h
Ink Drying Method UV Drying
Control System Win10
Power 1250W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L:138.59 x W:44.10 x H:43.31 (1 Inch = 25.4 mm)

Meter:
L:3.52m x W:1.12m x H:1.1m
Printer Dimension Inch:
L:192.92 x W:51.19 x H:69.69 (1 Inch = 25.4 mm)

Meter:
L:4.9m x W:1.3m x H:1.77m
Weight G.W: 1760 lb. / 880kg (1kg = 2.2 lb.)
N.W: 1560 lb. / 780kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification Safety Certification

High ConfigurationFeaturing an integrated intelligent control system and employing Gen6 greyscale printheads, the printer achieves faster printing speeds and more uniform inkjet results.Advanced EquipmentEquipped with high-quality guide rails and drag chains, the printer offers enhanced wear resistance and reduced noise levels. This ensures smoother operation and superior printing quality.High StabilityUtilizing a robust hard oxidation and segmented adsorption platform, along with an all-steel welded frame, the printer delivers exceptional stability during printing, resulting in consistently high printing quality.Wide ApplicationCapable of printing on a variety of materials, the printer demonstrates versatility across different applications.Operation PanelFeaturing a user-friendly interface with clear operation pages and buttons, the printer enables efficient operation with simple one-click printing processes.Intelligent Ink Detection SystemThe printer includes a real-time ink detection system to monitor ink levels, preventing downtime and interruptions due to ink depletion. This feature ensures continuous production without delays.

Aleron Multicolor Digital UV Printing Machine Ultra i3200 3304

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
