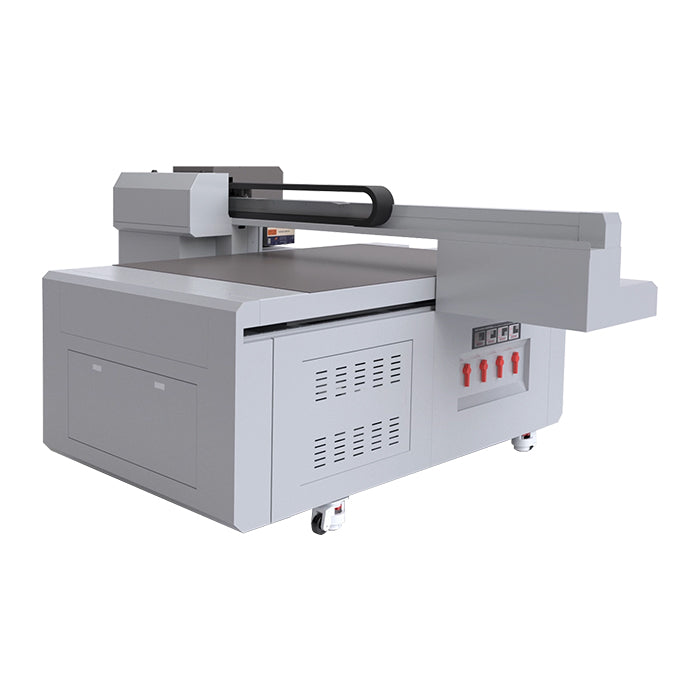

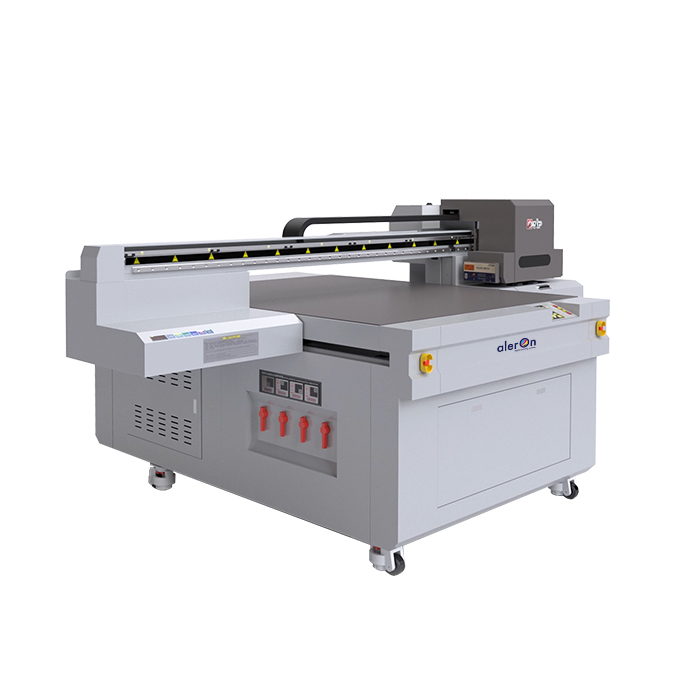

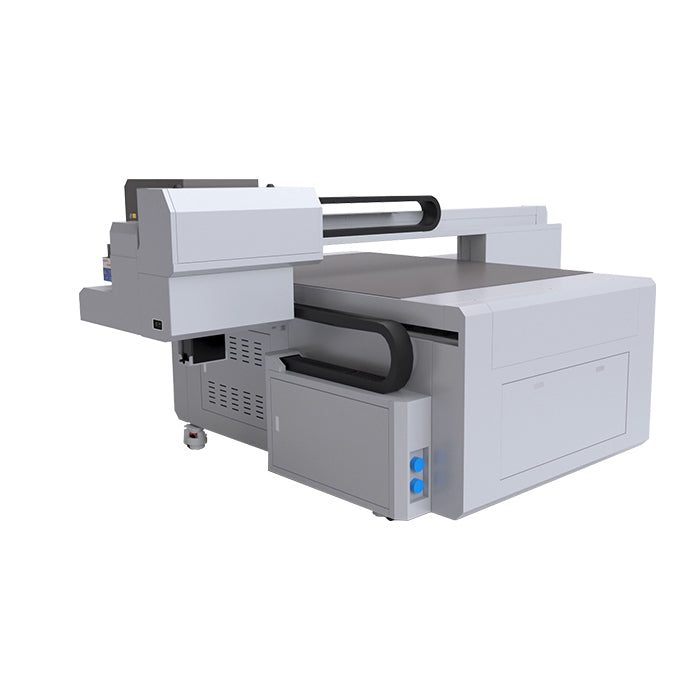

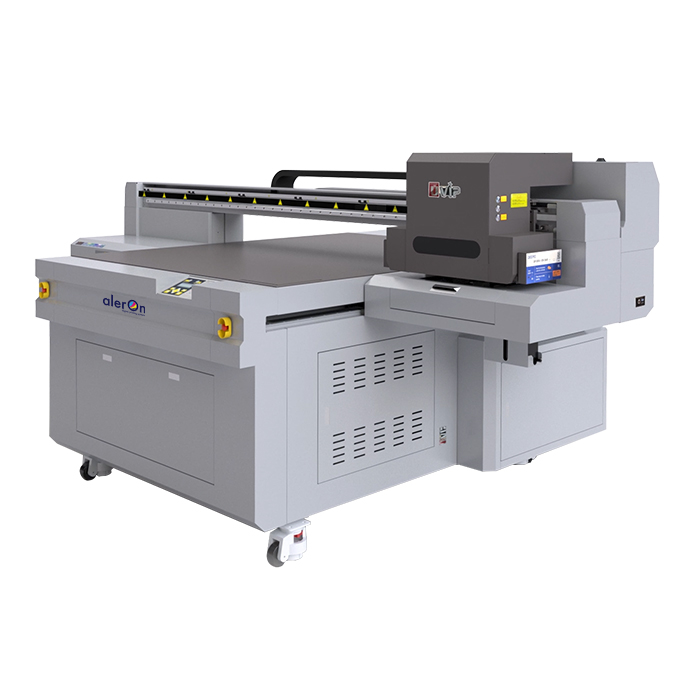

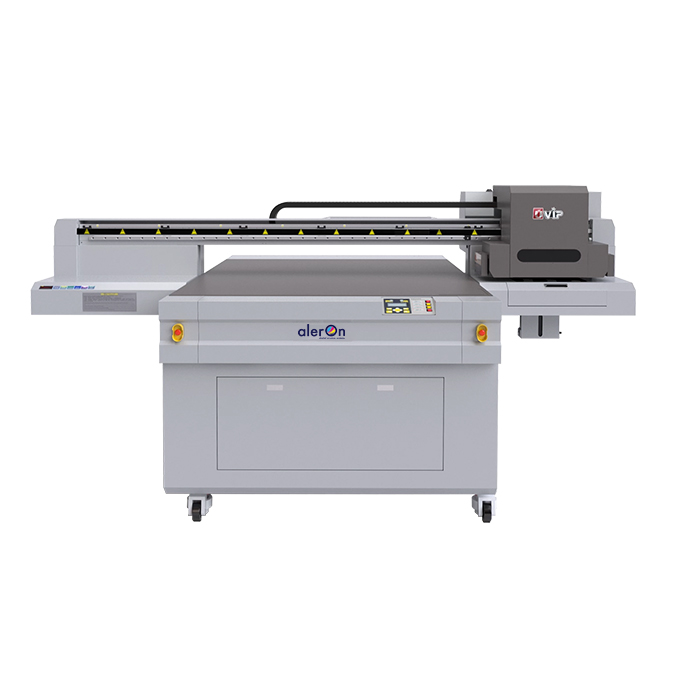

Aleron Multicolor Digital Printing Machine Ultra i3200 1316 Flatbed LED UV Printer with Linear Motor

Aleron Multicolor Digital Printing Machine Ultra i3200 1316 Flatbed LED UV Printer with Linear Motor

by Aleron Digital Printing System

Printing Width: 1.3m*1.6m

Print Head: Epson i3200

Print Head Quantity: 3/4 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

    Request a quote
    Chat with us

    Wit-Color UV printer UVIP i3200 1316

    For All Advertising Images Use with High Resolution 1. EPSON i3200  Print head2. Max Printing area is 1.3m*1.6m3. High Quality! High Resolution Better Pefermance!

    UVIP 1316 Specifications
    Model UVIP 1316
    Printing Technology UV Printing
    Print Head i3200
    Acceptable Media Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc.
    Width: ≦1300 × 1600mm
    Thickness: ≦130mm
    Ink Type UV Ink: CMYK LCLM W V
    Ink Supply Negative Pressure Ink Supply
    Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
    Color: CMYK + LC, LM + W + Varnish
    Image Format Tiff, JPEG, EPS, PDF
    RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
    Printing Resolution Maximum
    Printing Speed
    Mode Full Color W+C W+C+V
    High Resolution Mode 18㎡/h 12㎡/h 6㎡/h
    Standard Mode 27㎡/h 18㎡/h 9㎡/h
    Production Mode 36㎡/h 24㎡/h 12㎡/h
    Ink Curing Method Dual UV LED Lights
    Control System Win10
    Power 3000W
    Interface Gigabit Ethernet
    Power Supply AC 220V±10%, 50/60 HZ
    UPS 3KVA
    Air Source N/A
    Packing Dimension Inch:
    L:80.71 x W:89.76 x H:63.78 (1 Inch = 25.4 mm)

    Meter:
    L:2.05m x W:2.28m x H:1.62m
    Printer Dimension Inch:
    L:137.80 x W:90.55 x H:66.93 (1 Inch = 25.4 mm)

    Meter:
    L:3.5m x W:2.3m x H:1.7m
    Weight N.W: 880 lb. / 400kg (1kg = 2.2 lb.)
    G.W: 1144 lb. / 520kg (1kg = 2.2 lb.)
    Environment Power On:
    Temperature 59℉ to 90℉ [15℃ to 32℃]
    Humidity:35 to 80% (No Condensation)

    Power Off:
    Temperature 41℉ to 104℉ [5℃ to 40℃]
    Humidity:35 to 80% (No Condensation)
    Safety Certification CE Certified
    Get The Best Price

    High Quality Components

    The Wit-Color UVIP i3200 1316 is equipped with high-quality guide rails and drag chains, ensuring superior wear resistance and reduced noise levels. This results in a smoother machine operation and enhanced printing quality, making it an ideal choice for businesses seeking precision and reliability in their printing processes.

    High Configuration

    In addition to its advanced equipment, the UVIP i3200 1316 boasts high stability features that set it apart from other UV printers on the market. With a strong hard oxidation and segmented adsorption platform, as well as an all-steel welding frame square, this printer offers unparalleled stability during the printing process. The result is consistently high-quality prints that meet the exacting standards of professional printing applications.

    Advanced Technology

    Whether you are in the signage, packaging, or industrial printing industry, the Wit-Color UVIP i3200 1316 is designed to elevate your printing capabilities. Its combination of advanced equipment and high stability ensures that you can achieve superior printing results, regardless of the complexity of your projects.

    Print Your Imagination

    With the Wit-Color UVIP i3200 1316, you can expect exceptional performance, reliability, and efficiency, making it a valuable addition to any printing operation. Experience the difference that advanced equipment and high stability can make in your printing processes with the Wit-Color UVIP i3200 1316.

    Aleron Multicolor Digital Printing Machine Ultra i3200 1316 Flatbed LED UV Printer with Linear Motor

    · Large materials:

    ∙ Glass panels

    ∙ Metal sheets

    ∙ Wood boards

    ∙ Acrylic sheets

    · Applications:

    ∙ Billboards

    ∙ Trade show displays

    ∙ Interior decoration panels

    ∙ Large-scale signage

    ∙ Architectural models

    · Smaller items:

    ∙ Mobile phone cases

    ∙ Ceramic tiles
