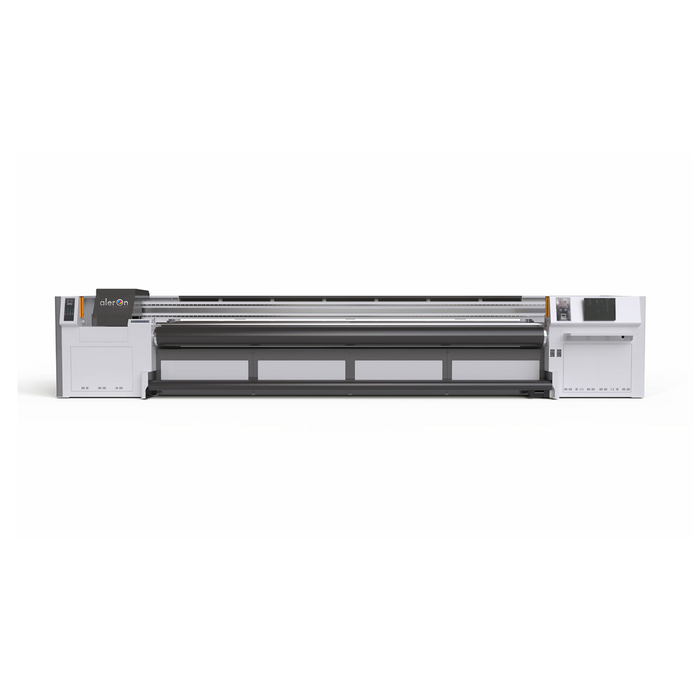

Aleron Multicolor Digital Hybrid UV Printing Machine UVIP Gen6 5500

Printing Width: 5.4m

Print Head: Ricoh Gen6

Print Head Quantity: 6~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color Multicolor Digital Hybrid UV Printing Machine UVIP Gen6 5500

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 3.2m3. High Quality! High Resolution Better Pefermance!

UVIP 5500 Specifications (Ricoh Gen6)
Model UVIP 5500
Printing Technology UV Printing
Print Head Ricoh Gen6
Acceptable Media Type:
Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Foam boards, PVC boards and other non-heavy duty boards

Width: ≦5300mm
Thickness: ≦70mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint(Standard) PrintFactory / Onyx / Caldera(optional)
Printing Resolution Maximum
Printing Speed
Mode In-line Staggered Triple Rows
Production Mode 40㎡/h 75㎡/h 110㎡/h
Standard Mode 30㎡/h 60㎡/h 90㎡/h
High Resolution Mode 20㎡/h 40㎡/h 60㎡/h
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 8000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L:317.72 x W:88.58 x H:76.77
L:35.43 x W:22.05 x H:31.50
1 Inch = 25.4 mm

Meter:
L:8.07m x W:2.25m x H:1.95m
L:0.90m x W:0.56m x H:0.80m
Printer Dimension Inch:
L:64.96 x W:49.21 x H:59.84 (1 Inch = 25.4 mm)

Meter:
L:7.80m x W:2.10m x H:1.80m
Weight N.W: 12980 lb. / 5900kg
G.W: 14201 lb. / 6455kg
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity:35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified

High ConfigurationIntegrated intelligent control system and using Gen6 greyscale printhead, printing speed is faster and inkjet is more uniform.Advanced EquipmentHigh quality guide rails and drag chains are used, which are more wear-resistant and have lower noise. The machine runs more smoothly and the printing quality is better.High StabilityUsing strong hard oxidation and segmented adsorption platform,all-steel welding frame square, the printing process is more stable and the printing quality is higher.
Wide ApplicationIt can print on a variety of materials, making it more versatile.Automatic Cleaning SystemThe nozzle can be automatically cleaned to prevent ink residue from clogging the nozzle channels and improve printing quality and accuracy.Operation PanelEquipped with clear operation pages and buttons, each printing process can be operated with one click, making printing efficient and convenient.Intelligent Ink Detection SystemThe remaining amount of ink in the printer can be monitored in real time to avoid downtime and production interruptions caused by running out of ink.Curing SystemUsing UV LED lamp for curing, it can be used immediately without preheating time, achieving high-speed curing and strong durability.


Aleron Multicolor Digital Hybrid UV Printing Machine UVIP Gen6 5500

·   Large materials:

·  Floor mats

·  Door panels

·  Wall panels

·  Metal sheets

·   Materials:

·  Fabrics

·  Plastics

·  Cardboard

·  Leather

·   Applications:

·  Textile printing

·  Packaging

·  Promotional items

·  Fashion accessories

·  Industrial labeling

·   Additional items:

·  Customized gifts
