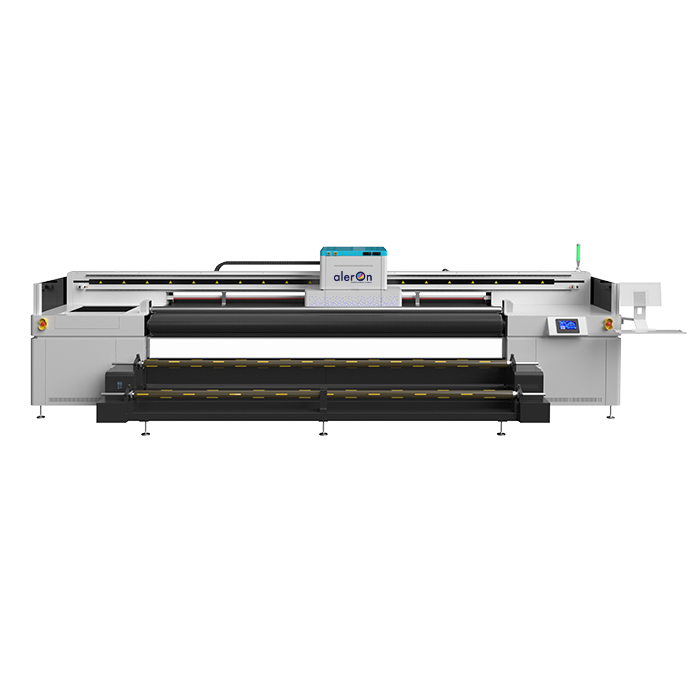

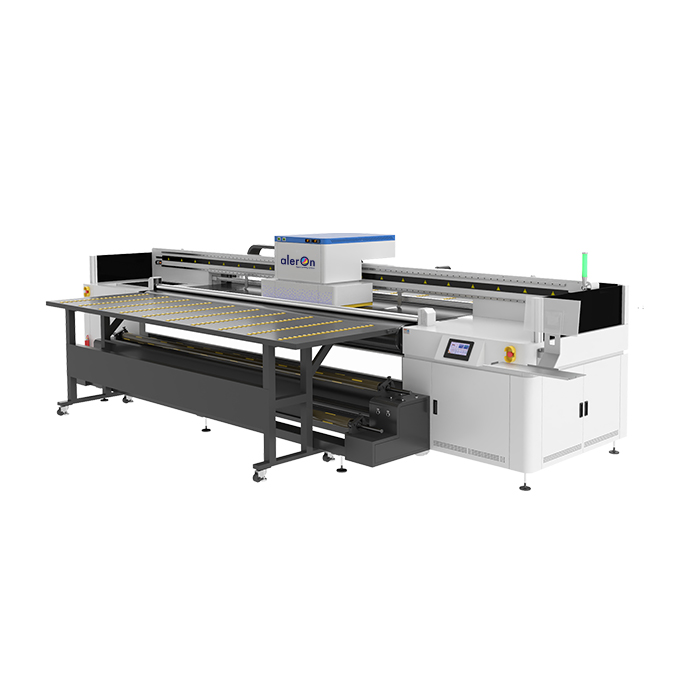

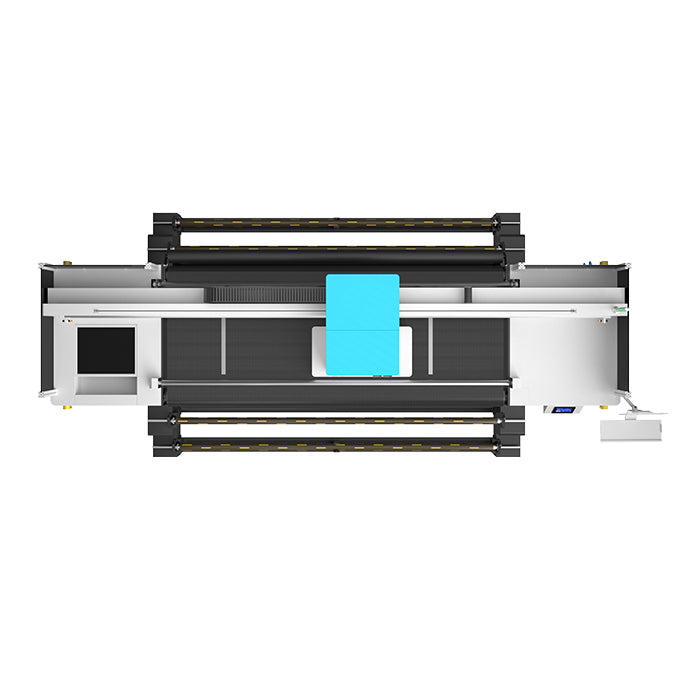

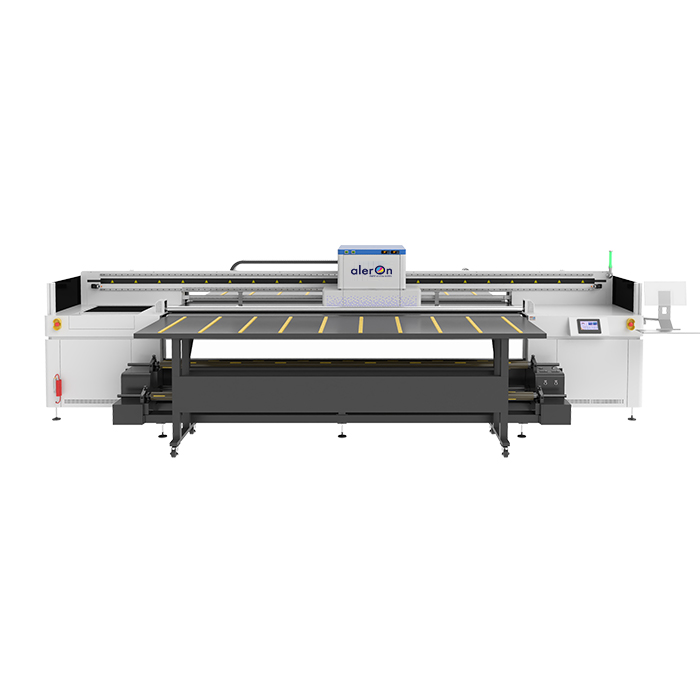

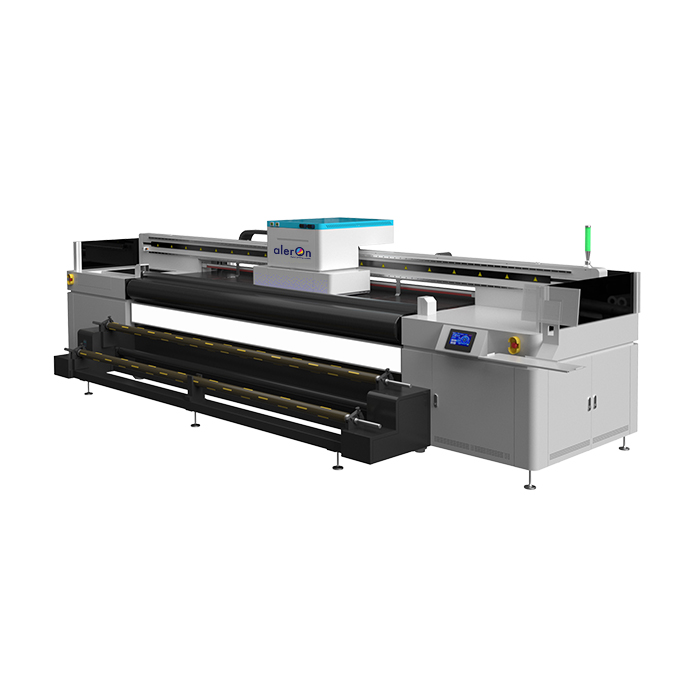

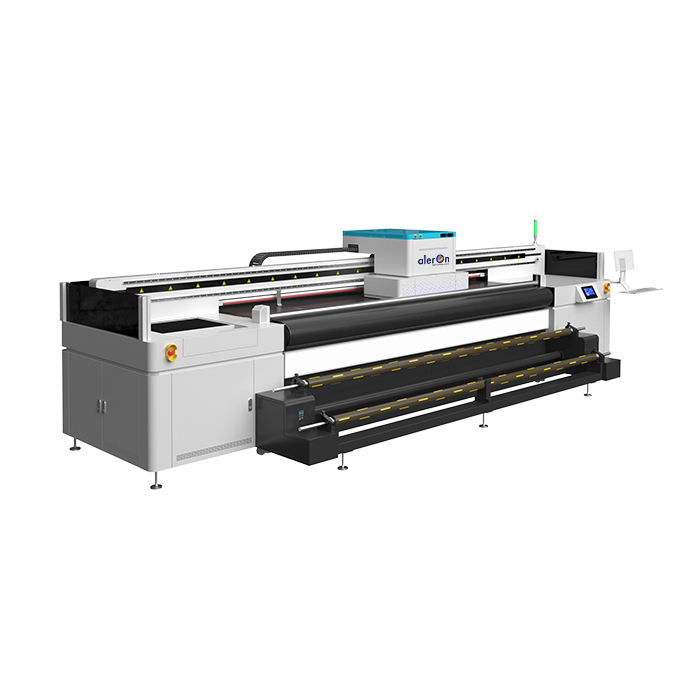

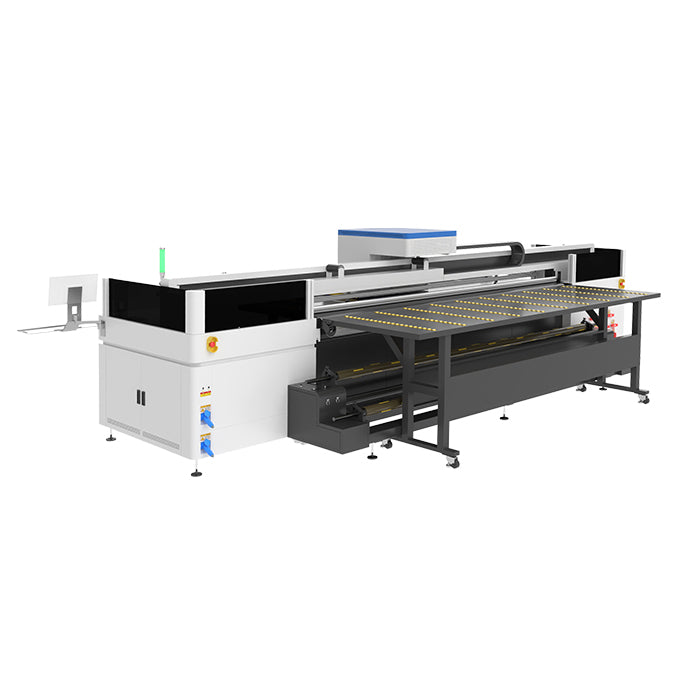

Aleron Multicolor Digital Hybrid UV Printing Machine UVIP Gen6 3300
Printing Width: 3.2m
Print Head: Ricoh Gen6
Print Head Quantity: 2~16 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
Printing Width: 3.2m
Print Head: Ricoh Gen6
Print Head Quantity: 2~16 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
| UVIP 3300 Specifications (Ricoh Gen6) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | UVIP 3300 | ||||||||||||||||
| Printing Technology | UV Printing | ||||||||||||||||
| Print Head | Ricoh Gen6 | ||||||||||||||||
| Acceptable Media |
Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc. Foam boards, PVC boards and other non-heavy duty boards Width: ≦3200mm Thickness: ≦70mm |
||||||||||||||||
| Ink Type | UV Ink: CMYK LCLM W V | ||||||||||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon + White ink auto-stirring Color: CMYK + LC, LM + W + Varnish |
||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||||||
| RIP Software | Photoprint(Standard) PrintFactory / Onyx / Caldera(optional) | ||||||||||||||||
| Printing Resolution | Maximum | ||||||||||||||||
| Printing Speed |
|
||||||||||||||||
| Ink Curing Method | Dual UV LED Lights | ||||||||||||||||
| Control System | Win10 | ||||||||||||||||
| Power | 5000W | ||||||||||||||||
| Interface | Gigabit Ethernet | ||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||||||
| UPS | 3KVA | ||||||||||||||||
| Air Source | N/A | ||||||||||||||||
| Packing Dimension |
Inch: L:228.35 x W:71.65 x H:70.87 L:125.98 x W:18.11 x H:50.39 L:28.34 x W:22.05 x H:37.01 1 Inch = 25.4 mm Meter: L:5.80m x W:1.82m x H:1.80m L:3.20m x W:0.46m x H:1.28m L:0.72m x W:0.56m x H:0.94m |
||||||||||||||||
| Printer Dimension |
Inch: L:220.47 x W:145.67 x H:64.57 (1 Inch = 25.4 mm) Meter: L:5.6m x W:3.7m x H:1.64m |
||||||||||||||||
| Weight |
N.W: 4686 lb. / 2130kg G.W: 6050 lb. / 2750kg |
||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity:35 to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity:35 to 80% (No Condensation) |
||||||||||||||||
| Safety Certification | CE Certified | ||||||||||||||||
