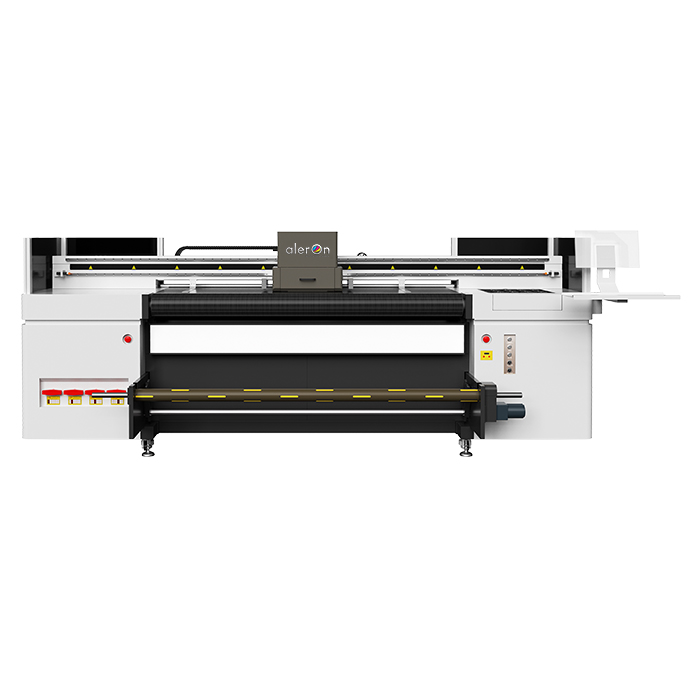

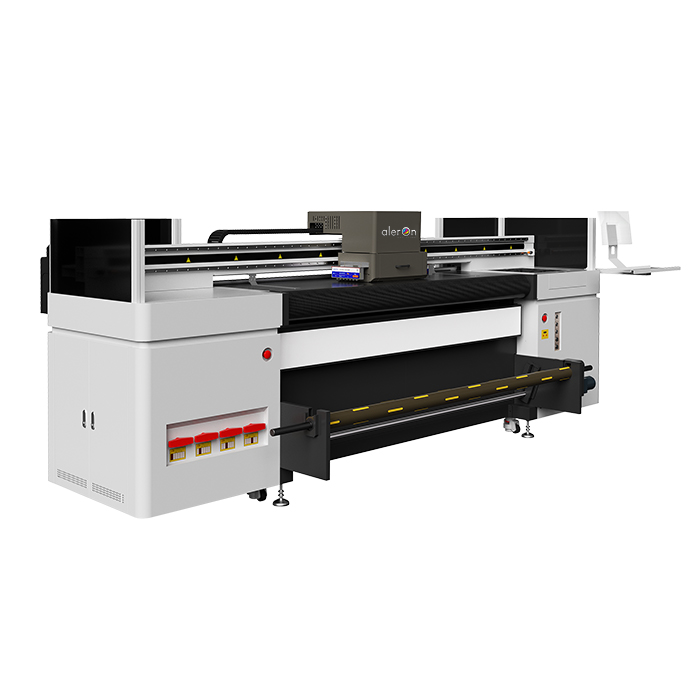

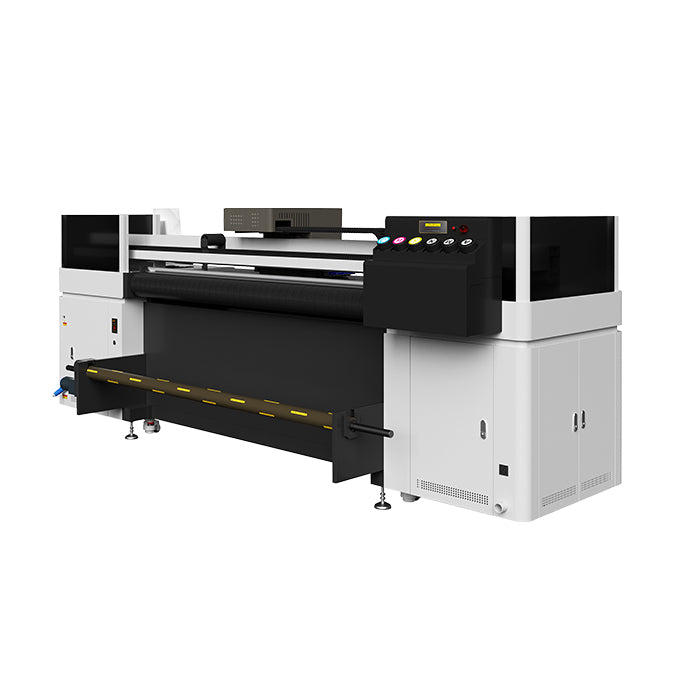

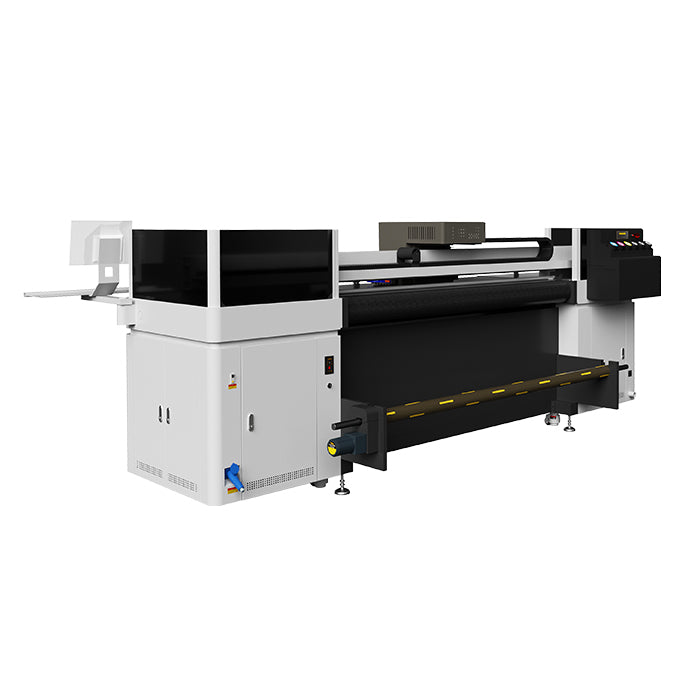

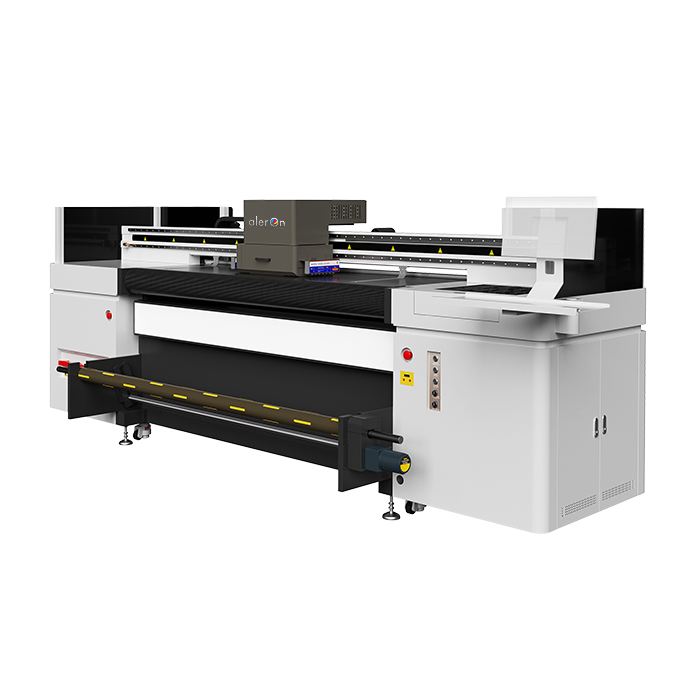

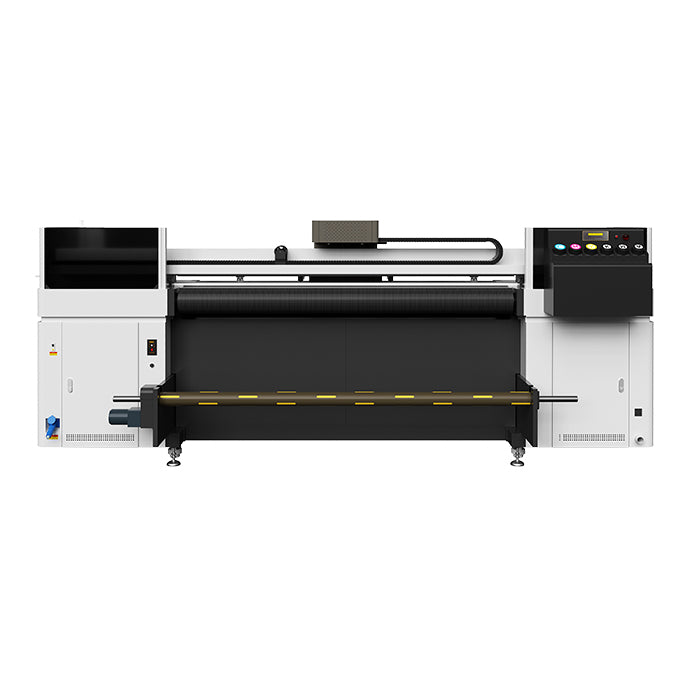

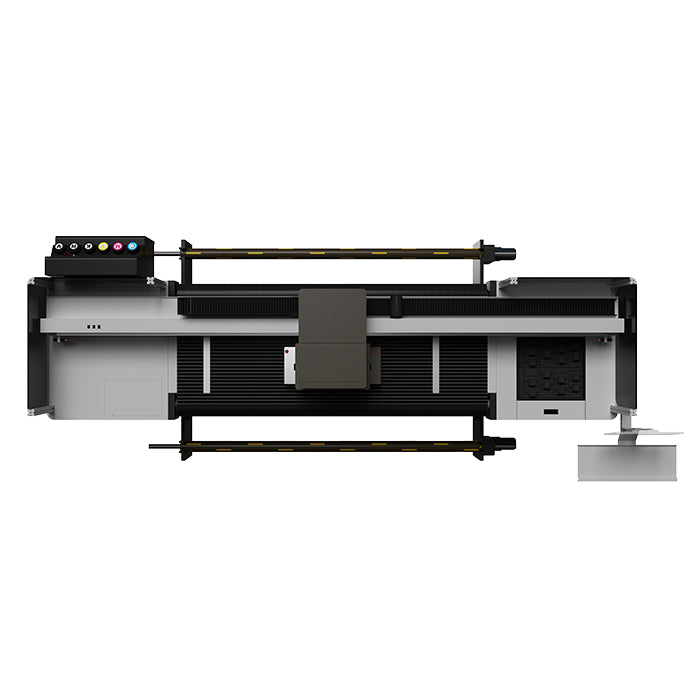

Name: Aleron Multicolor Digital Hybrid UV Printing Machine Ultra i3200 1906
Brand: Aleron Digital Printing System
Price: 12.0 USD
Availability: InStock

Aleron Multicolor Digital Hybrid UV Printing Machine Ultra i3200 1906

by Aleron Digital Printing System

Printing Width: 1.9m

Print Head: EPSON i3200

Print Head Quantity: 6 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Chat with us

Wit-Color Ultra i3200 1906-Mesh Belt UV Printer

For All Advertising Images Use with High Resolution 1. EPSON i3200 Print head2. Max Printing Width is 1.82m3. High Quality! High Resolution Better

Ultra i3200 1906-Mesh Belt UV Printer Specifications

Model

Ultra i3200 1906-Mesh Belt UV Printer

Printing Technology

UV Printing

Print Head

EPSON i3200

Acceptable Media

Type:
Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl etc.
Foam boards, PVC boards and other non-heavy duty boards

Width: ≦1820mm
Thickness: ≦70mm

Ink Type

UV Ink: CMYK W

Ink Supply

Negative Pressure Ink Supply

Ink Cartridges

Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + W

Image Format

Tiff, JPEG, EPS, PDF

RIP Software

Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)

Printing Resolution

Maximum

Printing Speed

Mode	In-line	Staggered	Triple Rows
Production Mode	40㎡/h	75㎡/h	110㎡/h
Standard Mode	30㎡/h	60㎡/h	90㎡/h
High Resolution Mode	20㎡/h	40㎡/h	60㎡/h

Ink Curing Method

Dual UV LED Lights

Control System

Win10

Power

3000W

Interface

Gigabit Ethernet

Power Supply

AC 220V±10%, 50/60 HZ

UPS

3KVA

Air Source

N/A

Packing Dimension

Inch:
L:164.17 x W:64.96 x H:70.87 (1 Inch = 25.4 mm)

Meter:
L:4.17m x W:1.65m x H:1.80m

Printer Dimension

Inch:
L:146.85 x W:86.61 x H:64.57 (1 Inch = 25.4 mm)

Meter:
L:3.73m x W:2.2m x H:1.64m

Weight

N.W: 1760 lb. / 800kg (1kg = 2.2 lb.)
G.W: 1980 lb. / 900kg (1kg = 2.2 lb.)

Environment

Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)

Safety Certification

CE Certified

Get The Best Price

High Configuration

Featuring an integrated intelligent control system and employing the Gen6 greyscale printhead, our printer achieves swifter printing speeds and ensures more uniform inkjet distribution.

High Quality Components

Beyond its impressive printing capabilities, the UVIP Gen6 1900 is constructed with advanced components to enhance overall performance. It utilizes high-quality guide rails and drag chains, which offer superior wear resistance and reduced noise levels. This ensures the machine operates smoothly and quietly, maintaining exceptional print quality and enabling a seamless printing process, allowing you to focus on delivering exceptional output without any disruptions.

Intelligent Design

Combining cutting-edge technology with robust construction, the Wit-Color UVIP Gen6 1900 is the ultimate solution for businesses seeking a reliable, high-performance UV printer. Ideal for the signage, packaging, and promotional materials industries, this printer is designed to meet the demands of a wide range of applications, making it a versatile and valuable addition to any printing operation.

Unleash Your Creativity

Experience precision, speed, and reliability with the Wit-Color UVIP Gen6 1900. Elevate your printing capabilities and take your business to new heights with this exceptional UV printer.

· Large materials:

· Floor mats

· Door panels

· Wall panels

· Metal sheets

· Materials:

· Fabrics

· Plastics

· Cardboard

· Leather

· Applications:

· Textile printing

· Packaging

· Promotional items

· Fashion accessories

· Industrial labeling

· Additional items:

· Customized gifts
