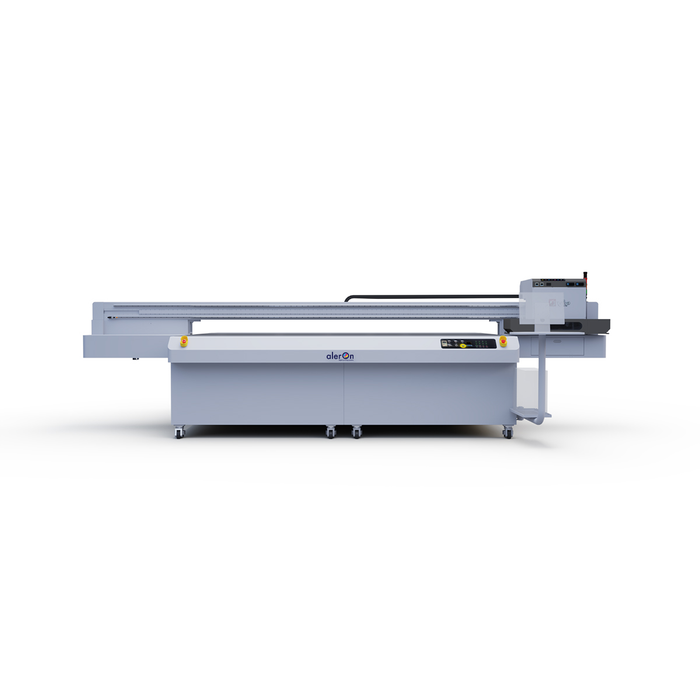

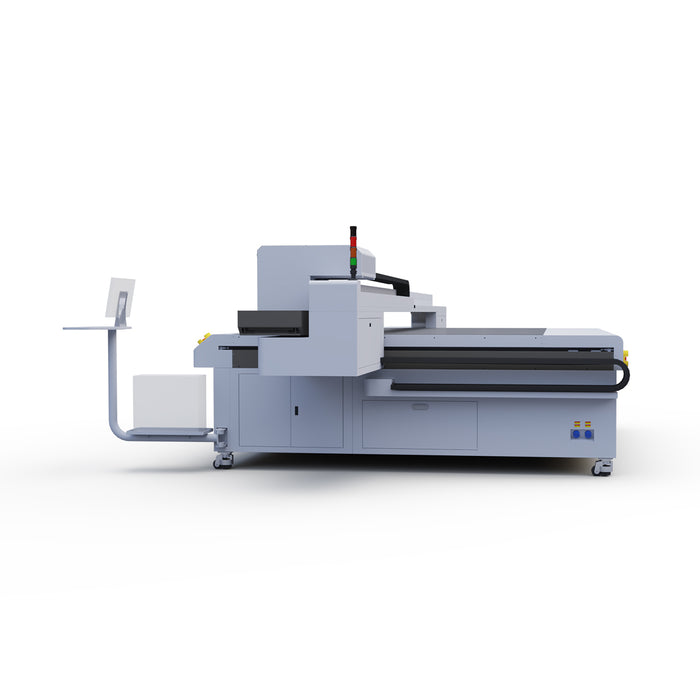

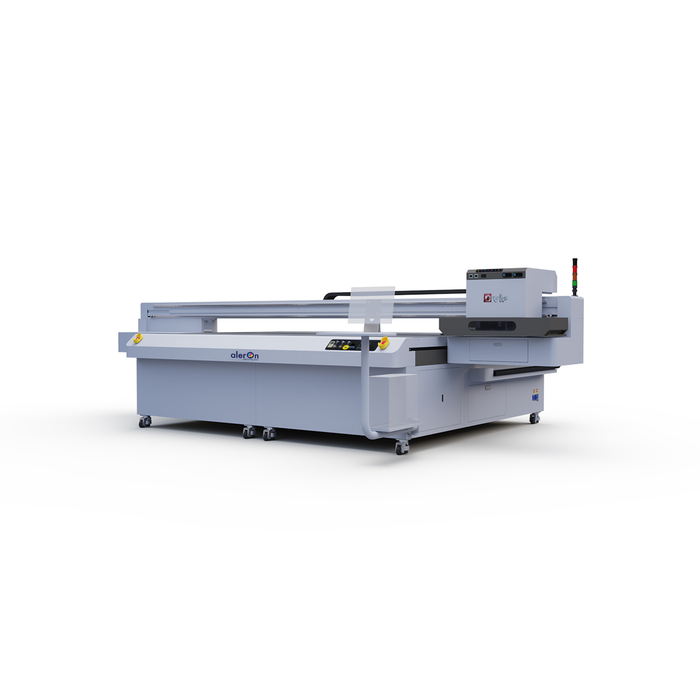

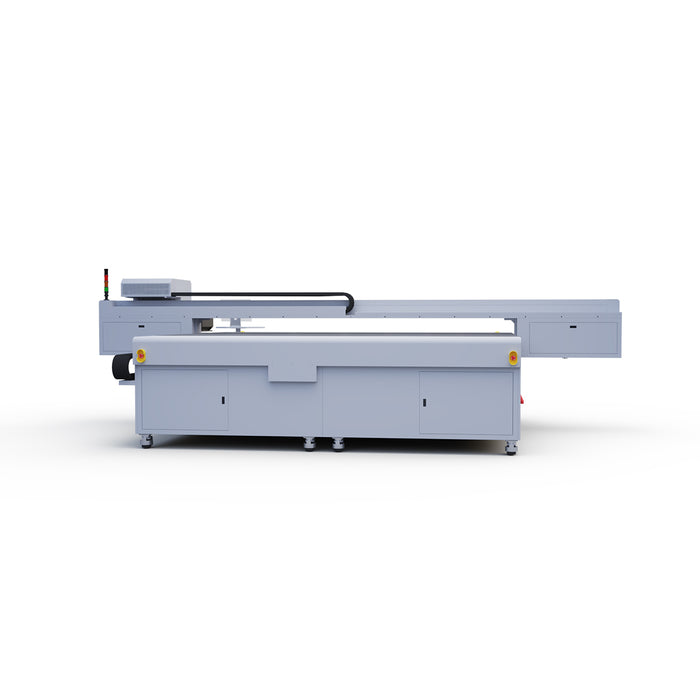

Name: Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 3220
Brand: Aleron Digital Printing System
Price: 12.0 USD
Availability: InStock

Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 3220

by Aleron Digital Printing System

Printing Area: 3.2m*2m

Print Head: Ricoh Gen6

Print Head Quantity: 3~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Chat with us

Wit-Color UV printer UVIP Gen6 3220

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 3.2m*2m3. High Quality ! High Resolution Better Pefermance!

UVIP 3220 Specifications

Model

UVIP 3220

Printing Technology

UV Printing

Print Head

Ricoh Gen6

Acceptable Media

Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc.
Width: ≦3200×2000mm
Thickness: ≦130mm

Ink Type

UV Ink: CMYK LCLM W V

Ink Supply

Negative Pressure Ink Supply

Ink Cartridges

Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish

Image Format

Tiff, JPEG, EPS, PDF

RIP Software

Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)

Printing Resolution

Maximum

Printing Speed

Mode	In-line	Staggered	Triple Rows
Production Mode	40㎡/h	75㎡/h	110㎡/h
Standard Mode	30㎡/h	60㎡/h	90㎡/h
High Resolution Mode	20㎡/h	40㎡/h	60㎡/h

Ink Curing Method

Dual UV LED Lights

Control System

Win10

Power

4500W

Interface

Gigabit Ethernet

Power Supply

AC 220V±10%, 50/60 HZ

UPS

3KVA

Air Source

N/A

Packing Dimension

Inch:
L:229.92 x W:89.76 x H:84.65 (1 Inch = 25.4 mm)

Meter:
L:5.84m x W:2.28m x H:2.15m

Printer Dimension

Inch:
L:208.66 x W:196.85 x H:66.93 (1 Inch = 25.4 mm)

Meter:
L:5.3m x W:5m x H:1.7m

Weight

N.W: 4400 lb. / 2000kg (1kg = 2.2 lb.)
G.W: 7480 lb. / 3400kg (1kg = 2.2 lb.)

Environment

Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35 to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35 to 80% (No Condensation)

Safety Certification

CE Certified

Get The Best Price

Huge Printing Area

With a maximum printing area of 3.2m*2m, this printer offers unparalleled versatility and the ability to handle large-scale printing with ease. Whether you're creating banners, signage, or any other advertising materials, the UVIP Gen6 3220 delivers outstanding results every time.

High Configuration

Thanks to its high configuration and advanced equipment, this printer offers superior stability and reliability, making it the perfect choice for businesses that demand precision and consistency in their printing processes. The automatic cleaning system and intelligent ink detection system further enhance its efficiency, while the curing system ensures fast drying and durable prints.

Wide Application

The UVIP Gen6 3220 is designed to meet the diverse needs of the advertising industry, offering a wide application range that includes printing on various materials such as PVC, acrylic, glass, and more. Its intuitive operation panel makes it easy to use, allowing for seamless control and management of the printing process.

Print Your Imagination

Whether you're a small business or a large-scale operation, this printer is a valuable asset that can elevate your printing capabilities to new heights. Experience the combination of high quality, high resolution, and exceptional performance with the Wit-Color UV printer UVIP Gen6 3220. It's time to take your advertising images to the next level.

· Large materials:

∙ Glass panels

∙ Metal sheets

∙ Wood boards

∙ Acrylic sheets

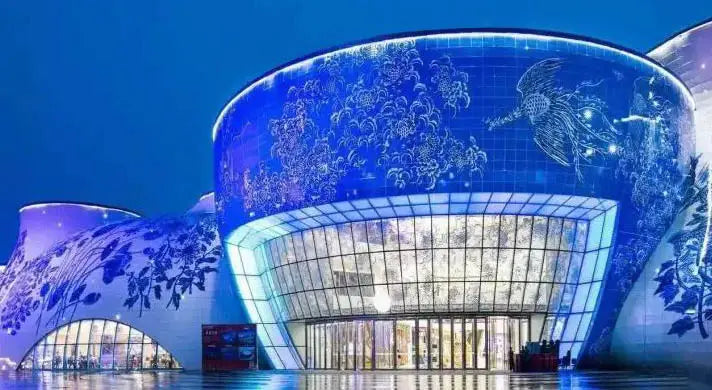

· Applications:

∙ Billboards

∙ Trade show displays

∙ Interior decoration panels

∙ Large-scale signage

∙ Architectural models

· Smaller items:

∙ Mobile phone cases

∙ Ceramic tiles

∙ Door panels
