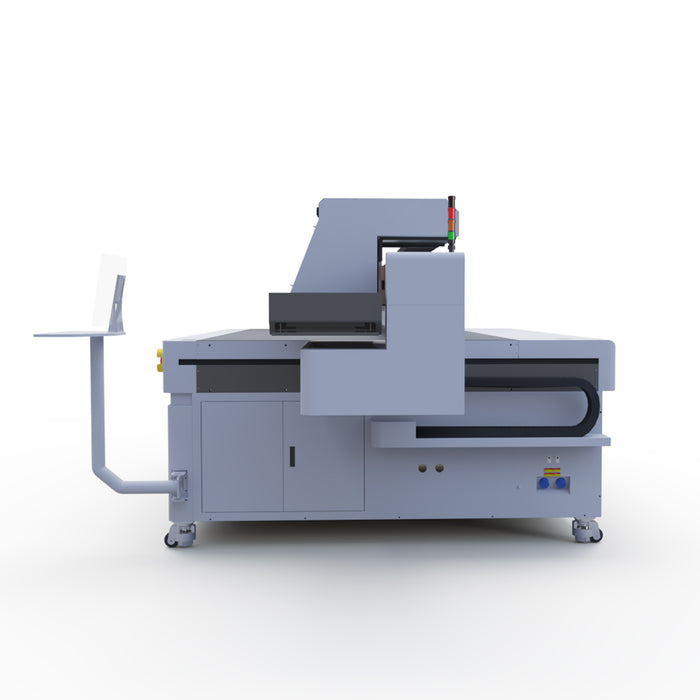

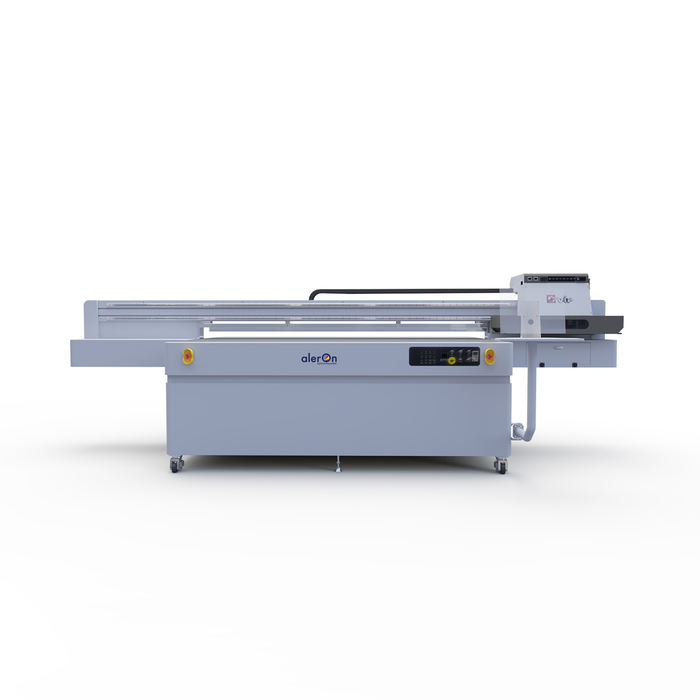

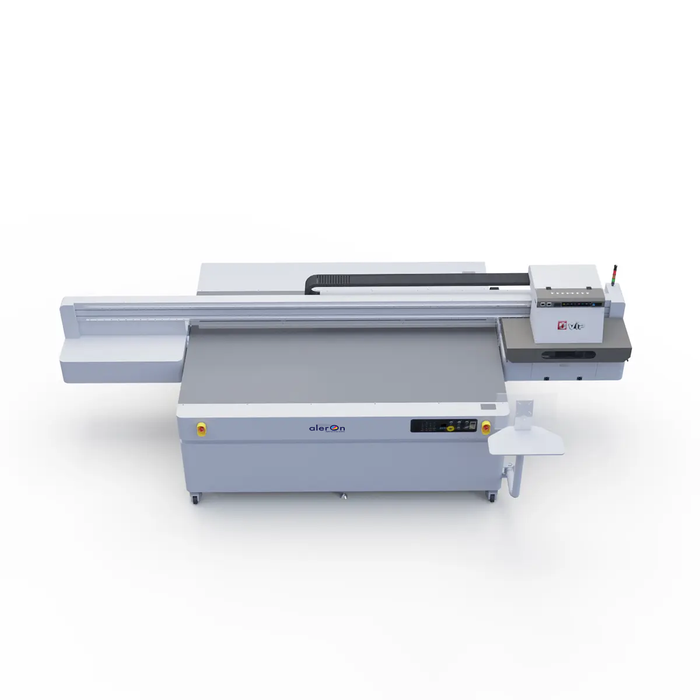

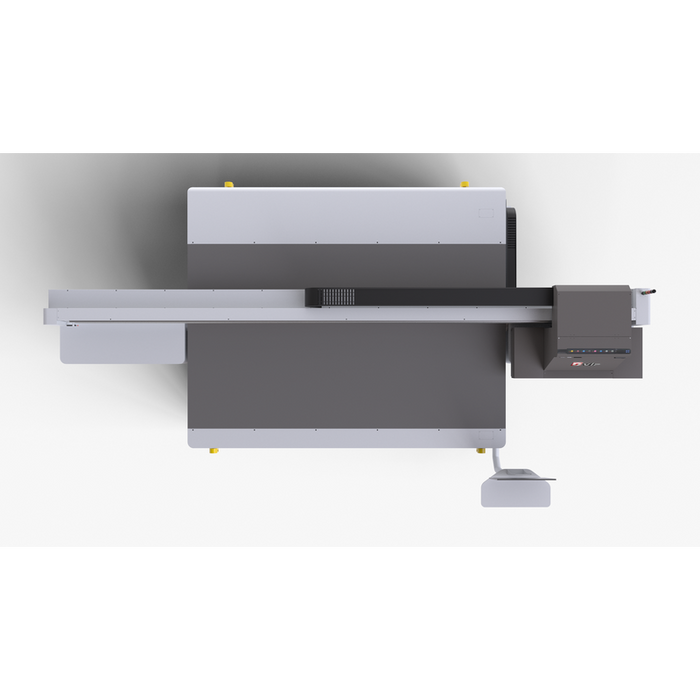

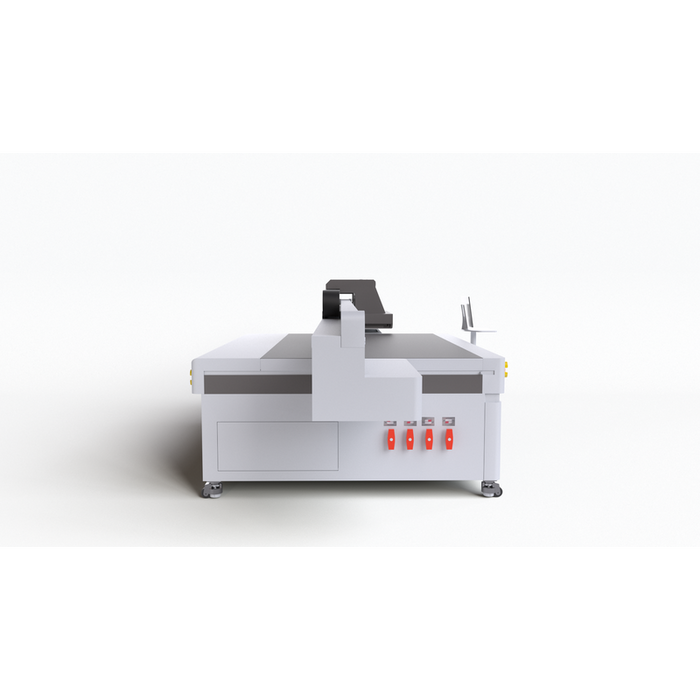

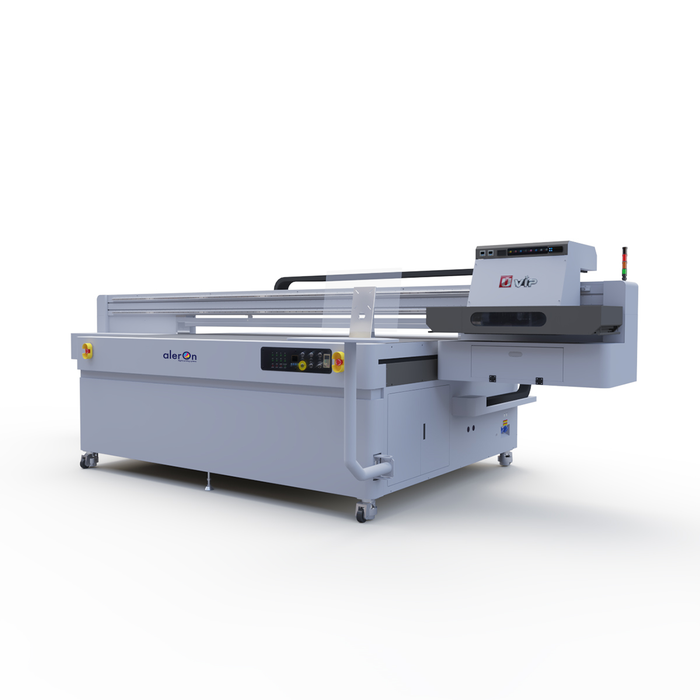

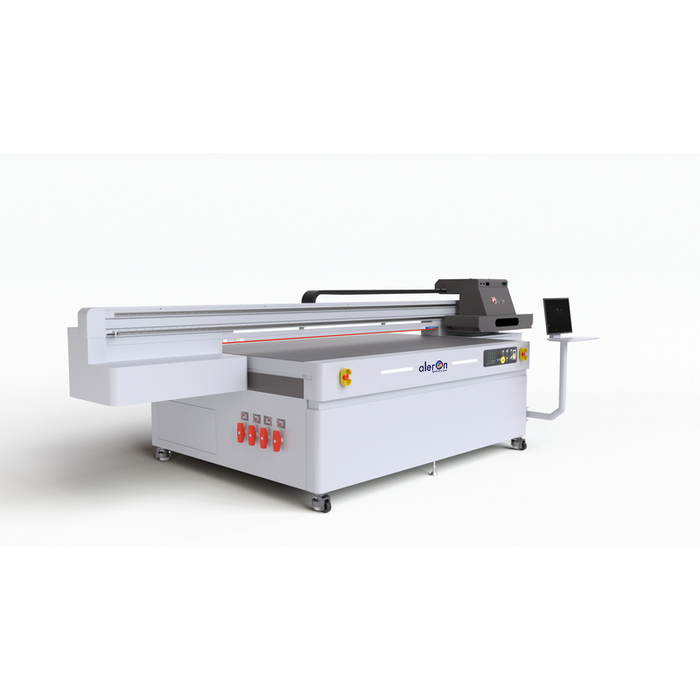

Name: Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 2513
Brand: Aleron Digital Printing System
Availability: InStock

Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 2513

by Aleron Digital Printing System

Printing Area: 2.5m*1.3m

Print Head: Ricoh Gen6

Print Head Quantity: 3~16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Chat with us

Wit-Color UV printer UVIP Gen6 2513

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing Area is 2.5m*1.3m3. High Quality ! High Resolution Better Pefermance!

UVIP 2513 Specifications

Model

UVIP 2513

Printing Technology

UV Printing

Print Head

Ricoh Gen6

Acceptable Media

Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers, etc.
Width: ≦2500 × 1300mm
Thickness: ≦130mm

Ink Type

UV Ink: CMYK LCLM W V

Ink Supply

Negative Pressure Ink Supply

Ink Cartridges

Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish

Image Format

Tiff, JPEG, EPS, PDF

RIP Software

Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)

Printing Resolution

Maximum

Printing Speed

Mode	In-line	Staggered	Triple Rows
Production Mode	40㎡/h	75㎡/h	110㎡/h
Standard Mode	30㎡/h	60㎡/h	90㎡/h
High Resolution Mode	20㎡/h	40㎡/h	60㎡/h

Ink Curing Method

Dual UV LED Lights

Control System

Win10

Power

3000W

Interface

Gigabit Ethernet

Power Supply

AC 220V±10%, 50/60 HZ

UPS

3KVA

Air Source

N/A

Packing Dimension

Inch:
L: 180.31 x W: 89.76 x H: 65.75 (1 Inch = 25.4 mm)

Meter:
L: 4.58m x W: 2.28m x H: 1.67m

Printer Dimension

Inch:
L: 185.04 x W: 123.62 x H: 66.93 (1 Inch = 25.4 mm)

Meter:
L: 4.7m x W: 3.14m x H: 1.7m

Weight

N.W 1872.2 lb. / 851kg (1kg = 2.2 lb.)
G.W 2624.6 lb. / 1193kg (1kg = 2.2 lb.)

Environment

Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)

Safety Certification

CE Certified

Get The Best Price

Advanced curing system

UVIP Gen6 2513 also features an advanced curing system that ensures UV inks cure quickly and efficiently, resulting in vibrant and durable prints. This makes it suitable for a wide range of applications, including signage, packaging, promotional materials and more.

Stable Printing

With its wide application capabilities, high stability and smart features, the Wit-Color UV Printer UVIP Gen6 2513 provides a versatile and reliable printing solution for businesses looking to enhance their printing capabilities. Whether you are a small business or a large commercial printer, this printer can meet your diverse printing needs with precision and efficiency.

High Stability

Wit-Color UV Printer UVIP Gen6 2513 is equipped with advanced technology to ensure high stability for consistent and reliable performance. Its automatic cleaning system simplifies maintenance, while the operator panel provides user-friendly controls for seamless operation.

Intelligent Ink Detection System

One of the printer's standout features is its intelligent ink detection system, which optimizes ink usage and ensures accurate color reproduction. This not only improves the quality of printouts but also reduces ink waste, making it a cost-effective solution for businesses.

· Large materials:∙

Glass panels∙

Metal sheets∙

Wood boards∙

Acrylic sheets·

Applications:∙

Billboards∙

Trade show displays∙

Interior decoration panels∙

Large-scale signage∙

Architectural models·

Smaller items:∙

Mobile phone cases∙

Ceramic tiles

∙ Door panels
