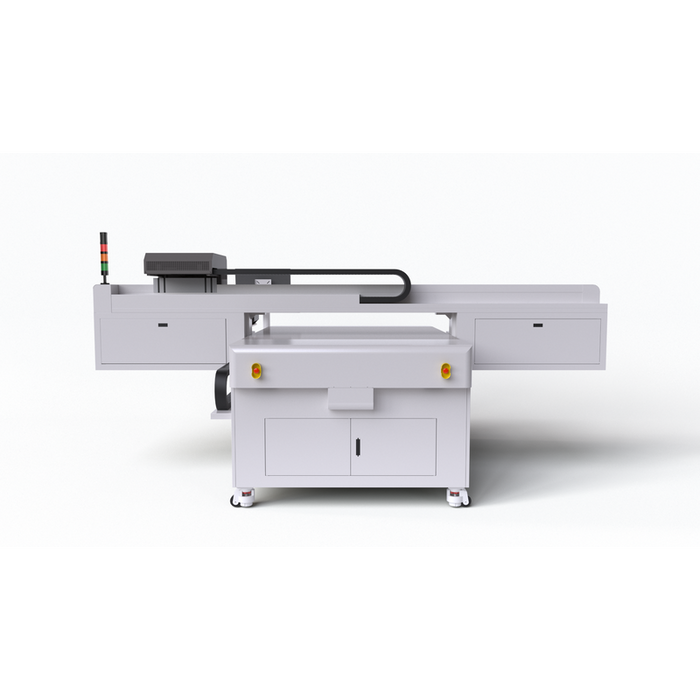

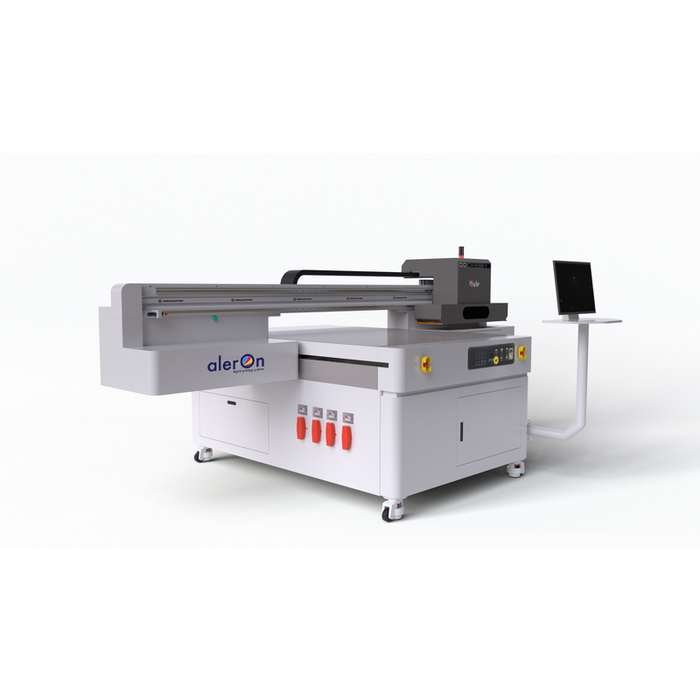

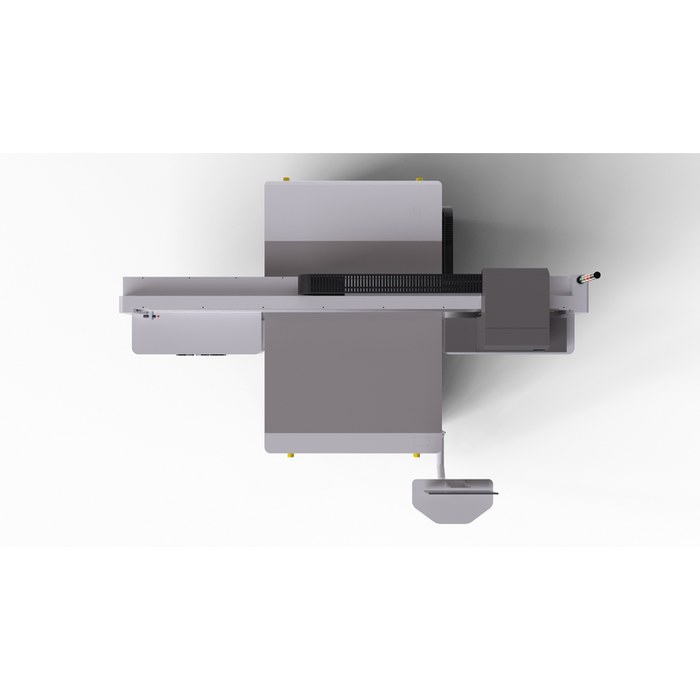

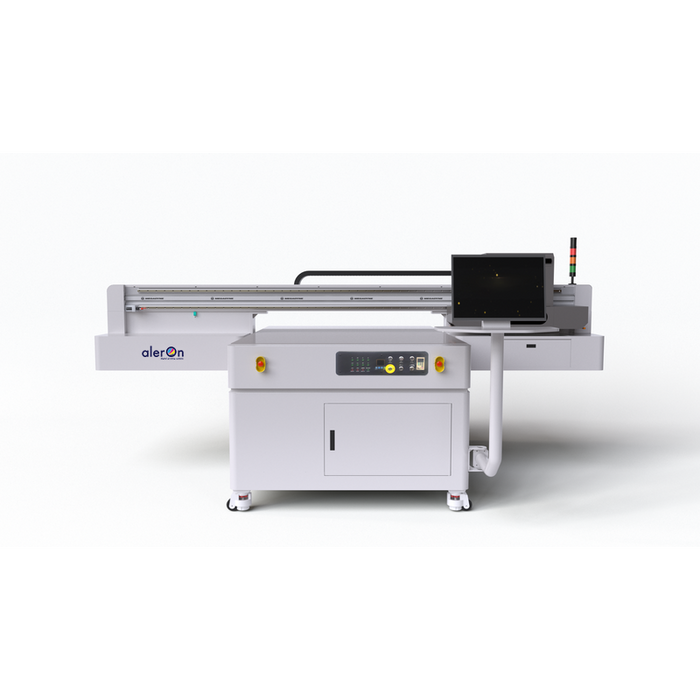

Name: Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 1313
Brand: Aleron Digital Printing System
Availability: InStock

Aleron Multicolor Digital Flatbed UV Printing Machine UVIP Gen6 1313

by Aleron Digital Printing System

Printing Width: 1.3m*1.3m

Print Head: Ricoh Gen6

Print Head Quantity: 3/4/5/6/7/8/12/16 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Chat with us

Wit-Color UV printer UVIP Gen6 1313

For All Advertising Images Use with High Resolution 1. Ricoh Gen6 Print head2. Max Printing area is 1.3m*1.3m3. High Quality ! High Resolution Better Pefermance!

UVIP 1313 Specifications

Model

UVIP 1313

Printing Technology

UV Printing

Print Head

Ricoh Gen6

Acceptable Media

Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers, etc.
Width: ≦1300 × 1300mm
Thickness: ≦130mm

Ink Type

UV Ink: CMYK LCLM W V

Ink Supply

Negative Pressure Ink Supply

Ink Cartridges

Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish

Image Format

Tiff, JPEG, EPS, PDF

RIP Software

Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)

Printing Resolution

Maximum

Printing Speed

Mode	In-line	Staggered	Triple Rows
Production Mode	40㎡/h	75㎡/h	110㎡/h
Standard Mode	30㎡/h	60㎡/h	90㎡/h
High Resolution Mode	20㎡/h	40㎡/h	60㎡/h

Ink Curing Method

Dual UV LED Lights

Control System

Win10

Power

3600W

Interface

Gigabit Ethernet

Power Supply

AC 220V±10%, 50/60 HZ

UPS

3KVA

Air Source

N/A

Packing Dimension

Inch:
L: 137.01 x W: 89.76 x H: 68.11 (1 Inch = 25.4 mm)

Meter:
L: 3.48m x W: 2.28m x H: 1.73m

Printer Dimension

Inch:
L: 137.80 x W: 90.55 x H: 66.93 (1 Inch = 25.4 mm)

Meter:
L: 3.5m x W: 2.3m x H: 1.7m

Weight

N.W 1672 lb. / 760kg (1kg = 2.2 lb.)
G.W 2200 lb. / 1000kg (1kg = 2.2 lb.)

Environment

Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)

Safety Certification

CE Certified

Get The Best Price

Ricoh Print Head

Equipped with the advanced Ricoh Gen6 print head, this UV printer ensures unparalleled precision and clarity in every print. The use of this state-of-the-art print head technology guarantees that your images will be reproduced with stunning detail and vibrant colors, capturing the attention of your target audience with ease.

1.3m Printing Width

With a maximum printing area of 1.3m x 1.3m, the Wit-Color UV printer UVIP Gen6 1313 offers ample space to bring your creative visions to life. Whether you need to print large banners, signage, or promotional displays, this printer provides the versatility and flexibility to accommodate a wide range of advertising applications.

High Quality

What sets this UV printer apart is its ability to deliver high-quality, high-resolution prints consistently. The combination of advanced print head technology and precision engineering ensures that every print reflects the professionalism and attention to detail that your brand represents. With better performance and exceptional results, this printer is a valuable asset for businesses seeking to elevate their advertising imagery.

· Mobile phone cases

· Advertising signs

· Ceramic tiles

· Door Panels

· Customized gifts:

∙ Photo frames

∙ Keychains

· Materials:

∙ Glass

∙ Metal

∙ Wood

∙ Acrylic
