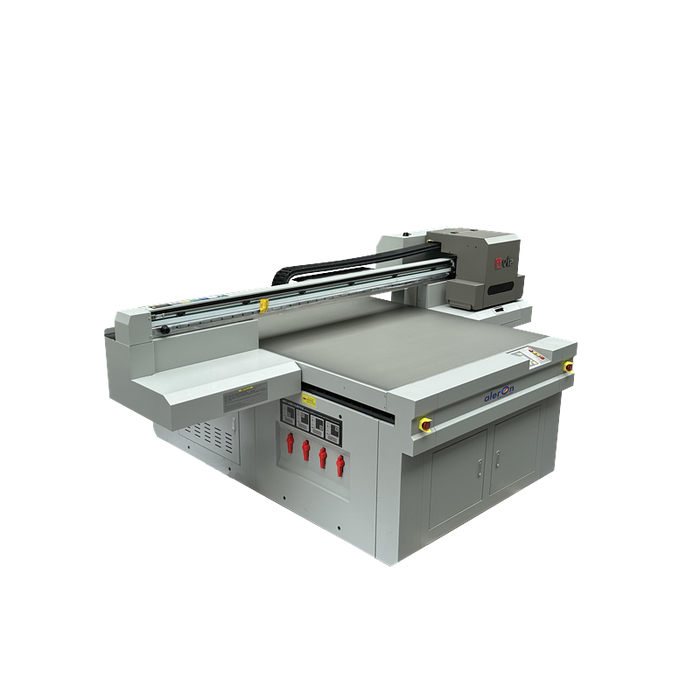

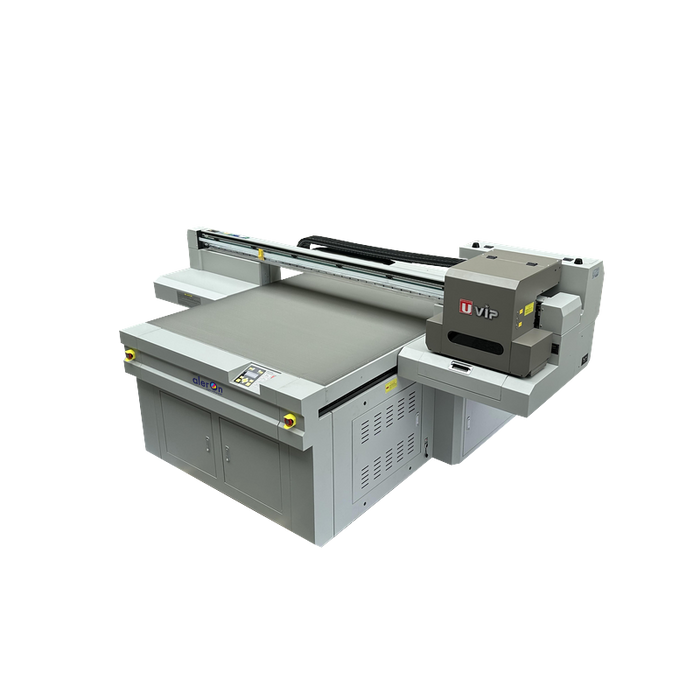

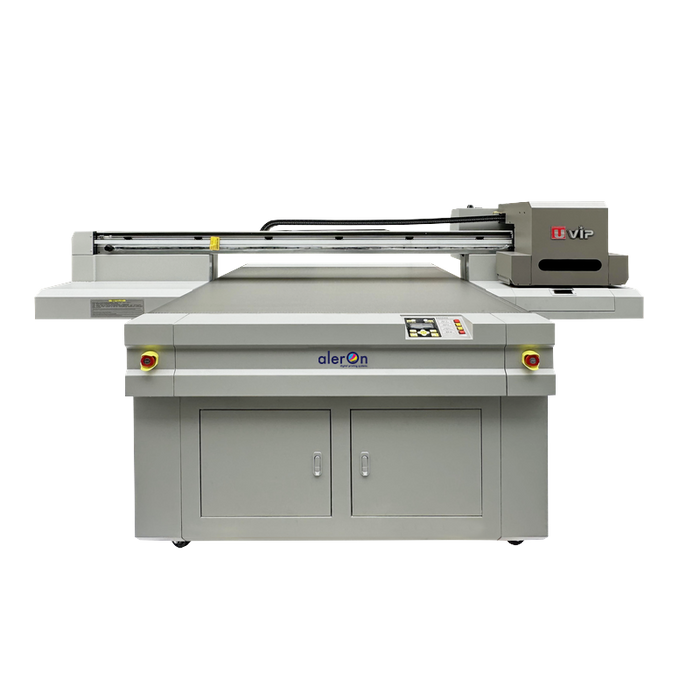

Aleron Multicolor Digital Flatbed UV Printing Machine Ultra i3200 1316 Flatbed LED UV Printer

Printing Width: 1.3m*1.6m

Print Head: Epson i3200

Print Head Quantity: 3/4 pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color UV printer UVIP i3200 1316

For All Advertising Images Use with High Resolution 1. EPSON i3200  Print head2. Max Printing area is 1.3m*1.6m3. High Quality! High Resolution Better Pefermance!

UVIP 1316 Specifications
Model UVIP 1316
Printing Technology UV Printing
Print Head i3200
Acceptable Media Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers, etc.
Width: ≦1300 × 1600mm
Thickness: ≦130mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)
Printing Resolution Maximum
Printing Speed
Mode Full Color W + C W + C + V
High Resolution Mode 18㎡/h 12㎡/h 6㎡/h
Standard Mode 27㎡/h 18㎡/h 9㎡/h
Production Mode 36㎡/h 24㎡/h 12㎡/h
Ink Curing Method Dual UV LED Lights
Control System Win10
Power 3000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L: 80.71 x W: 89.76 x H: 63.78 (1 Inch = 25.4 mm)

Meter:
L: 2.05m x W: 2.28m x H: 1.62m
Printer Dimension Inch:
L: 137.80 x W: 90.55 x H: 66.93 (1 Inch = 25.4 mm)

Meter:
L: 3.5m x W: 2.3m x H: 1.7m
Weight N.W 880 lb. / 400kg (1kg = 2.2 lb.)
G.W 1144 lb. / 520kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified

High Quality Components

The Wit-Color UVIP i3200 1316 is equipped with high-quality guide rails and drag chains, ensuring superior wear resistance and reduced noise levels. This results in a smoother machine operation and enhanced printing quality, making it an ideal choice for businesses seeking precision and reliability in their printing processes.

High Configuration

In addition to its advanced equipment, the UVIP i3200 1316 boasts high stability features that set it apart from other UV printers on the market. With a strong hard oxidation and segmented adsorption platform, as well as an all-steel welding frame square, this printer offers unparalleled stability during the printing process. The result is consistently high-quality prints that meet the exacting standards of professional printing applications.

Advanced Technology

Whether you are in the signage, packaging, or industrial printing industry, the Wit-Color UVIP i3200 1316 is designed to elevate your printing capabilities. Its combination of advanced equipment and high stability ensures that you can achieve superior printing results, regardless of the complexity of your projects.

Print Your Imagination

With the Wit-Color UVIP i3200 1316, you can expect exceptional performance, reliability, and efficiency, making it a valuable addition to any printing operation. Experience the difference that advanced equipment and high stability can make in your printing processes with the Wit-Color UVIP i3200 1316.



Aleron Multicolor Digital Flatbed UV Printing Machine Ultra i3200 1316 Flatbed LED UV Printer

· Large materials:

∙ Glass panels

∙ Metal sheets

∙ Wood boards

∙ Acrylic sheets

· Applications:

∙ Billboards

∙ Trade show displays

∙ Interior decoration panels

∙ Large-scale signage

∙ Architectural models

· Smaller items:

∙ Mobile phone cases

∙ Ceramic tiles
