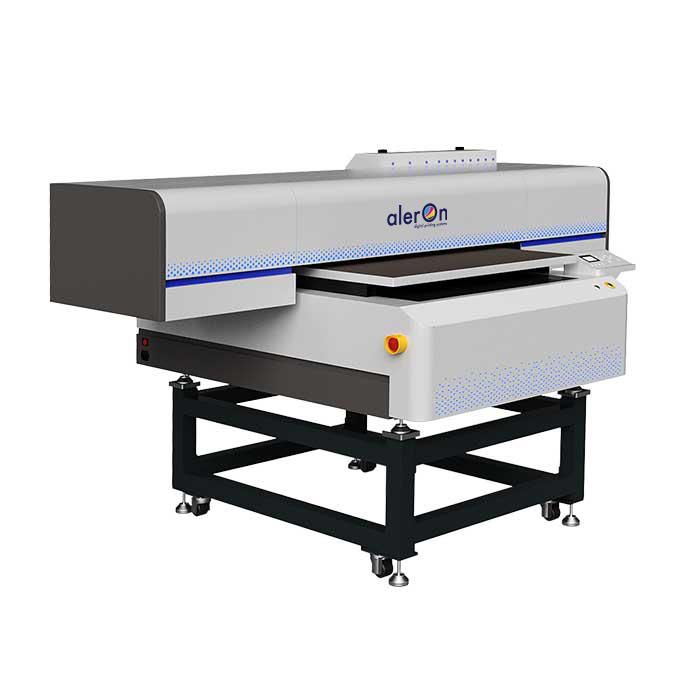

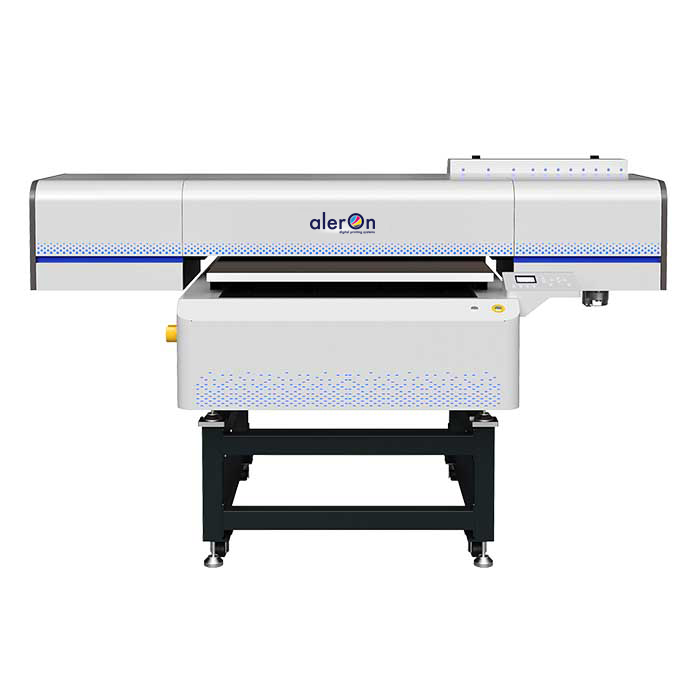

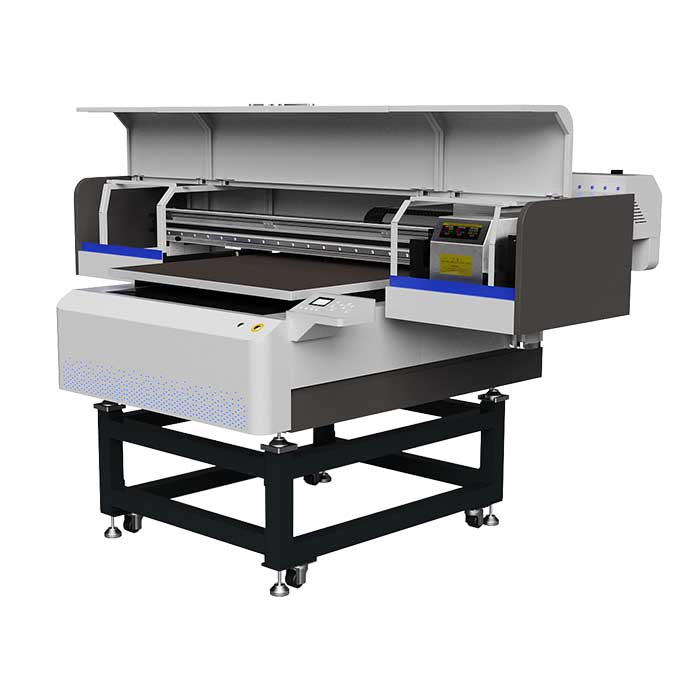

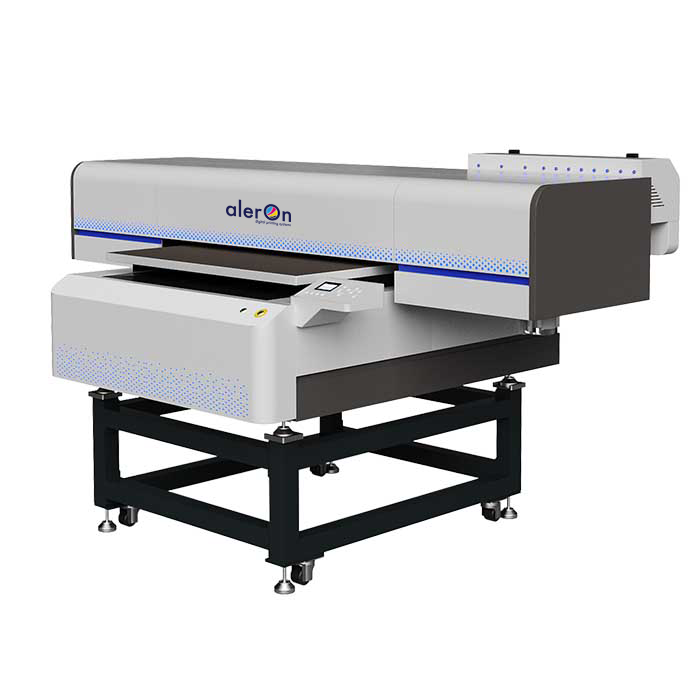

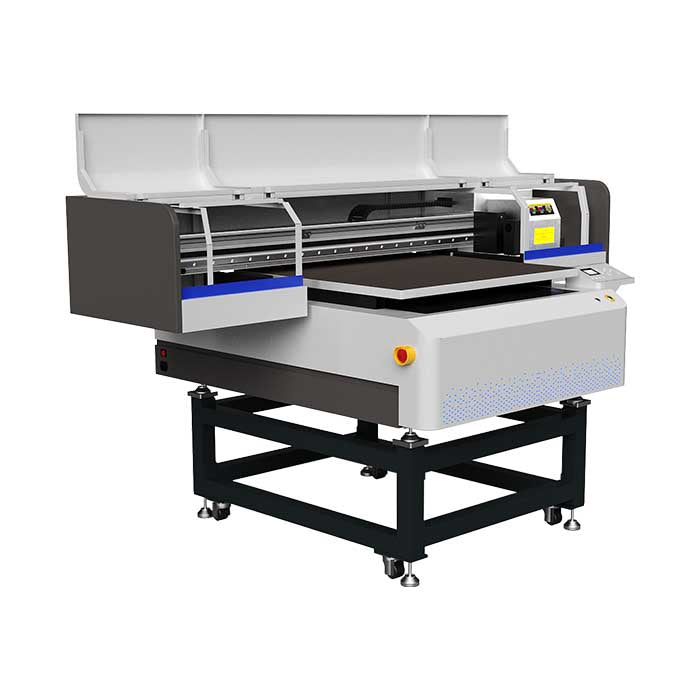

Aleron Multi-function Digital UV Printer Ultra i3200 9060-UV with Visual Positioning System
Printing Width: 0.9m*0.6m
Print Head: Epson i3200
Print Head Quantity: 3/4 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
Printing Width: 0.9m*0.6m
Print Head: Epson i3200
Print Head Quantity: 3/4 pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
| UVIP 6090 Specifications | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | UVIP 6090 | ||||||||||||||||
| Printing Technology | UV Printing | ||||||||||||||||
| Print Head | Epson i3200 | ||||||||||||||||
| Acceptable Media |
Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc. Width: ≦600 × 900mm Thickness: ≦200mm |
||||||||||||||||
| Ink Type | UV Ink: CMYK LCLM W V | ||||||||||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon + White ink auto-stirring Color: CMYK + LC + LM + W + Varnish |
||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||||||||||
| RIP Software | Photoprint(Standard) PrintFactory / Onyx / Caldera(optional) | ||||||||||||||||
| Printing Resolution | Maximum | ||||||||||||||||
| Printing Speed |
|
||||||||||||||||
| Ink Curing Method | Dual UV LED Lights | ||||||||||||||||
| Control System | Win10 | ||||||||||||||||
| Power | 3600W | ||||||||||||||||
| Interface | Gigabit Ethernet | ||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||||||||||
| UPS | 3KVA | ||||||||||||||||
| Air Source | N/A | ||||||||||||||||
| Packing Dimension |
Inch: L:88.58 x W:76.77 x H:37.40 (1 Inch = 25.4 mm) Meter: L:2.25m x W:1.95m x H:0.95m |
||||||||||||||||
| Printer Dimension |
Inch: L:84.25 x W:52.36 x H:48.43 (1 Inch = 25.4 mm) Meter: L:2.14m x W:1.33m x H:1.23m |
||||||||||||||||
| Weight |
N.W: 726 lb. / 330kg (1kg = 2.2 lb.) G.W: 990 lb. / 450kg (1kg = 2.2 lb.) |
||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity:35 to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity:35 to 80% (No Condensation) |
||||||||||||||||
| Safety Certification | CE Certified | ||||||||||||||||
