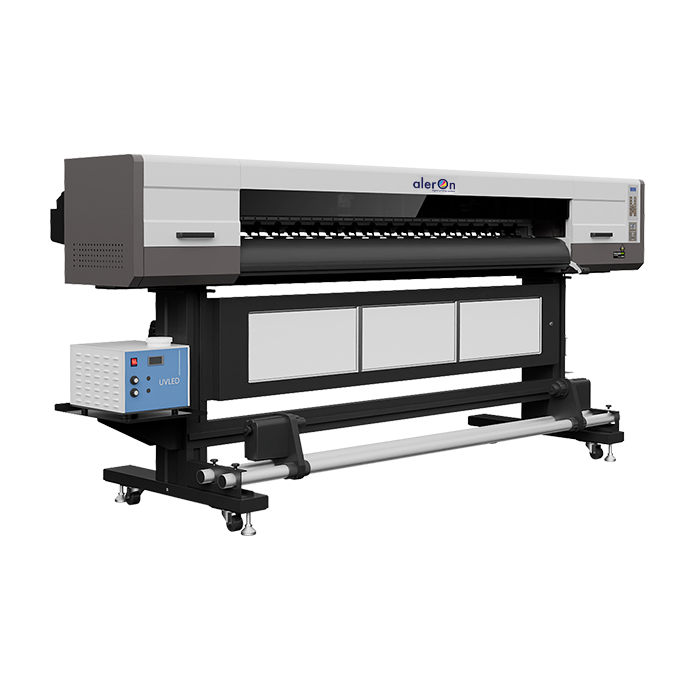

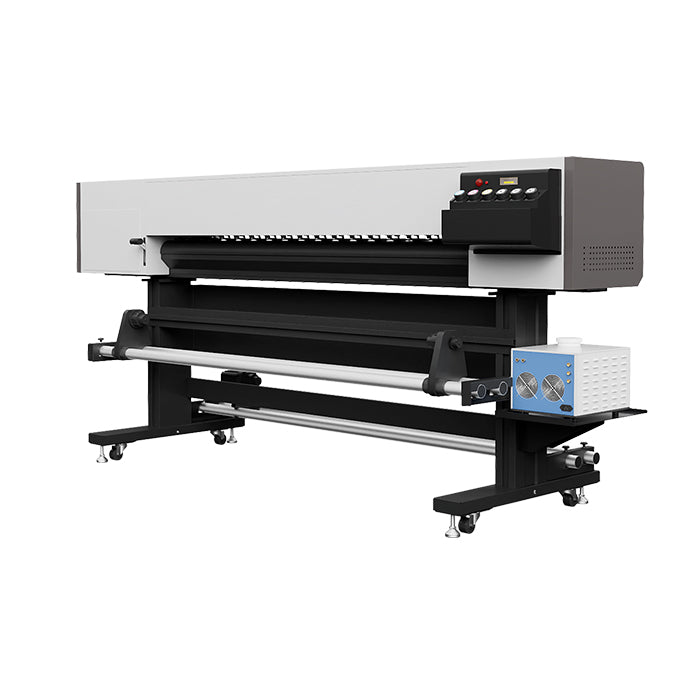

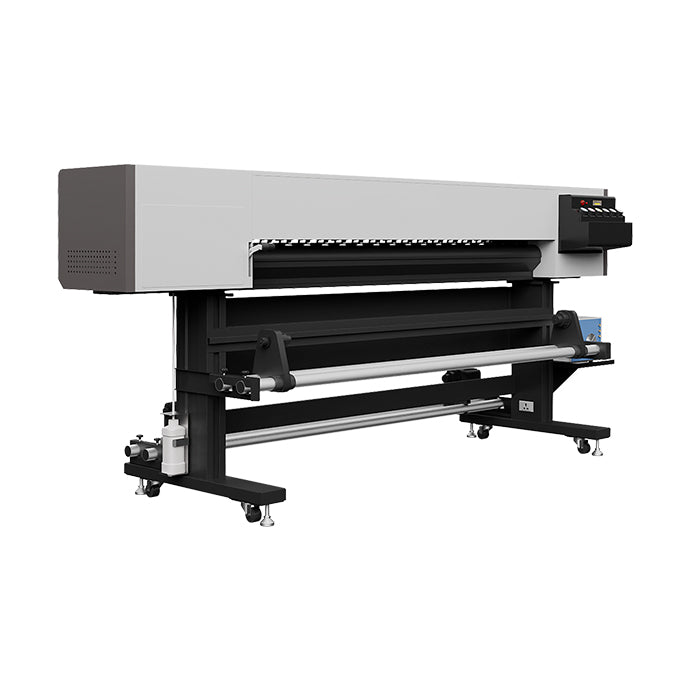

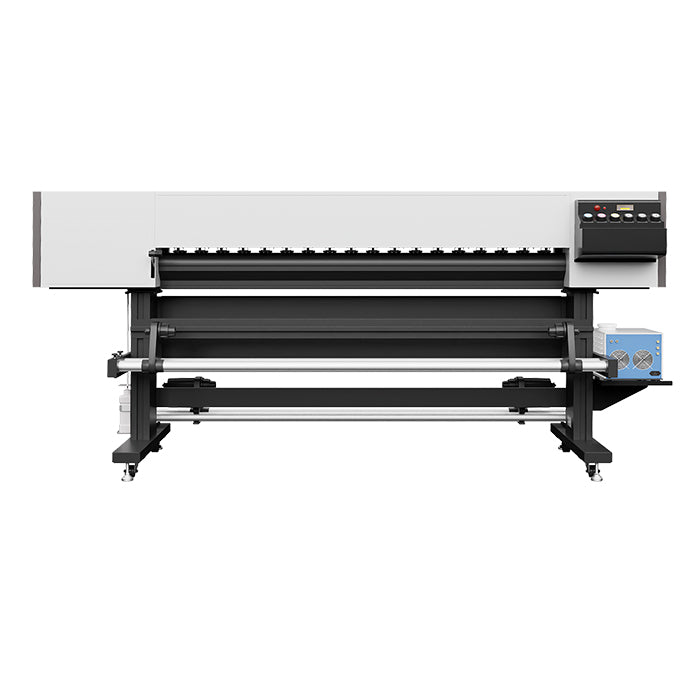

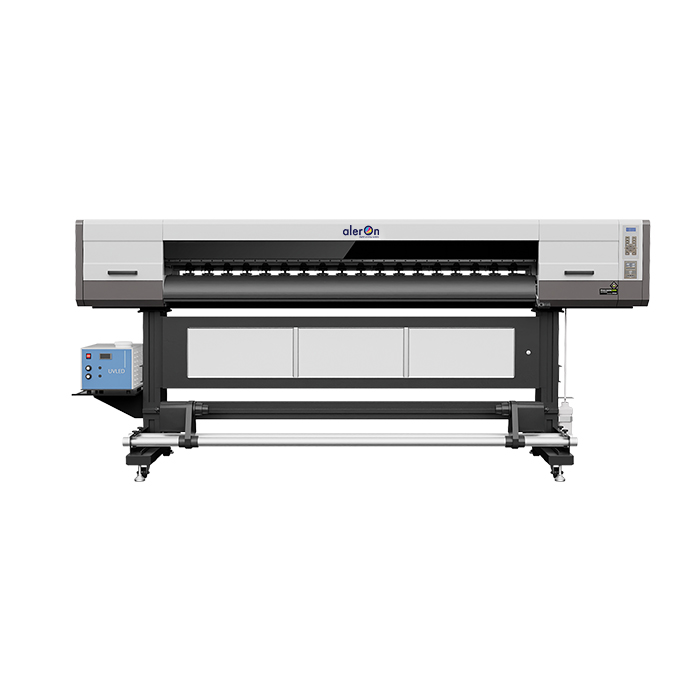

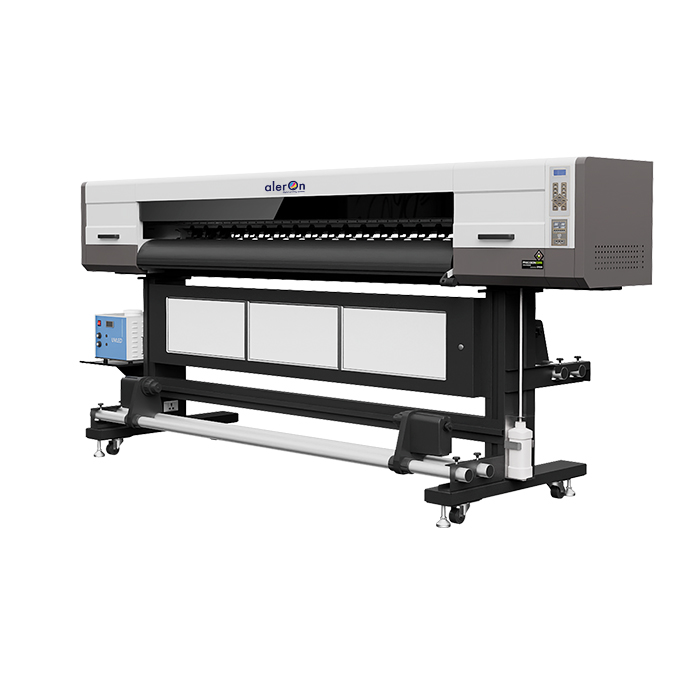

Aleron Latest Multicolor Digital R2R UV Printing Machine Ultra i3200 1902 UV
Printing Width: 1.82m
Print Head: Epson i3200
Print Head Quantity: 2pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
Printing Width: 1.82m
Print Head: Epson i3200
Print Head Quantity: 2pcs
Inks: UV ink
RIP Software: PhotoPrint or Print Factory
| UV Ultra i3200 1902 Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | UV Ultra i3200 1902 | ||||||||
| Printing Technology | UV Printing | ||||||||
| Print Head | EPSON i3200 | ||||||||
| Acceptable Media |
Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl, etc. Width: ≦1820mm |
||||||||
| Ink Type | UV Ink: CMYK LCLM W V | ||||||||
| Ink Supply | Negative Pressure Ink Supply | ||||||||
| Ink Cartridges |
Capacity: Color Siphon + White ink auto-stirring Color: CMYK + W |
||||||||
| Image Format | Tiff, JPEG, EPS, PDF | ||||||||
| RIP Software | Maintop (standard), Photoprint / Print Factory (optional) | ||||||||
| Printing Resolution | Maximum | ||||||||
| Printing Speed |
|
||||||||
| Ink Drying Method | UV Drying | ||||||||
| Control System | Win10 | ||||||||
| Power | 6100W | ||||||||
| Interface | USB3.0 / Gigabit Ethernet | ||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | ||||||||
| UPS | 3KVA | ||||||||
| Packing Dimension |
Inch: L: 138.59 x W: 44.10 x H: 43.31 (1 Inch = 25.4 mm) Meter: L: 3.52m x W: 1.12m x H: 1.1m |
||||||||
| Printer Dimension |
Inch: L: 129.93 x W: 39.38 x H: 70.87 (1 Inch = 25.4 mm) Meter: L: 3.3m x W: 1m x H: 1.8m |
||||||||
| Weight |
G.W: 1078 lb. / 690kg (1kg = 2.2 lb.) N.W: 880 lb. / 500kg (1kg = 2.2 lb.) |
||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity: 35% to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity: 35% to 80% (No Condensation) |
||||||||
| Safety Certification | CE Certified | ||||||||
