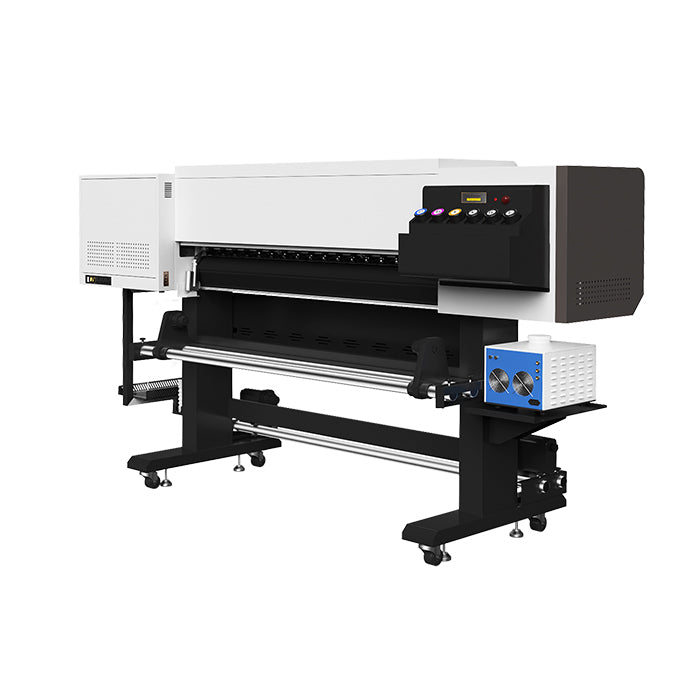

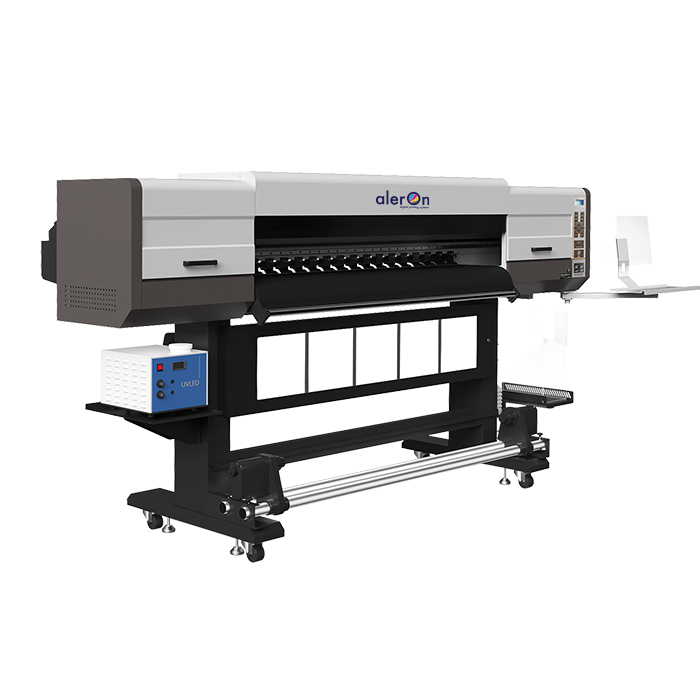

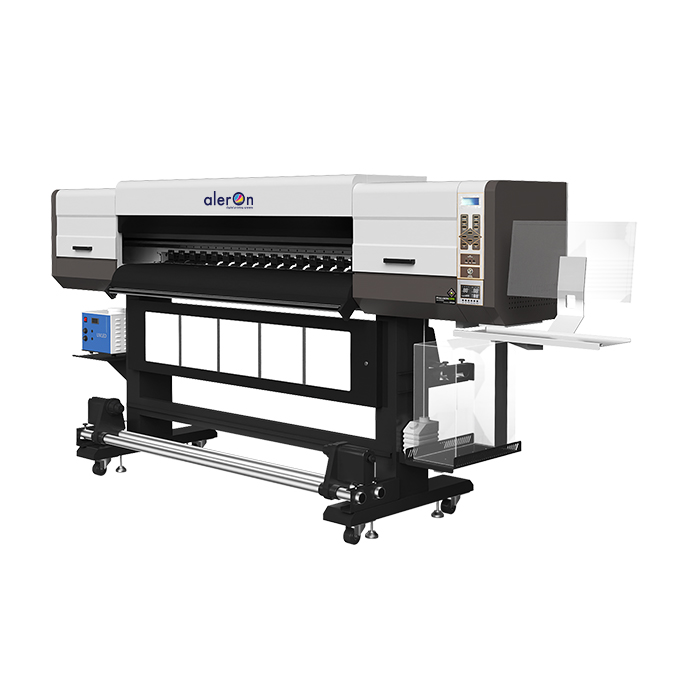

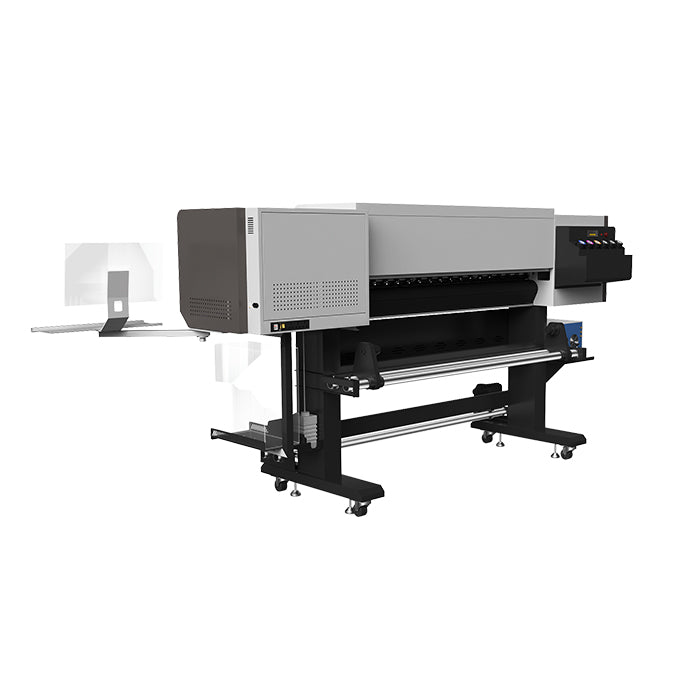

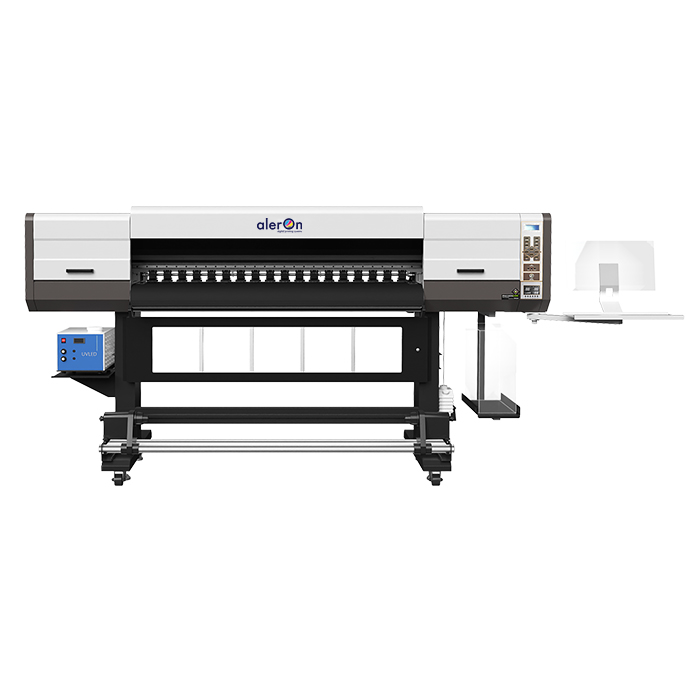

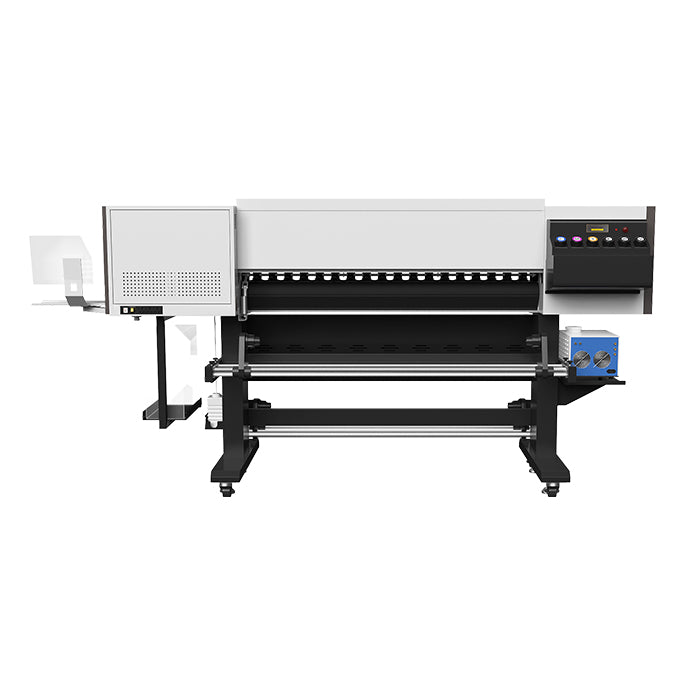

Aleron Latest Multicolor Digital R2R UV Printing Machine Ultra i3200 1704 UV

Printing Width: 1.6m

Print Head: Epson i3200

Print Head Quantity: 4pcs

Inks: UV ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color NEW Design UV printer Ulltra i3200 1704

For All Advertising Images Use with High Resolution 1. Epson i3200 Print head2. Max Printing Width is 1.6m3. High Quality !  High Resolution Better Pefermance!

UV Ultra i3200 1702/4 Specifications
Model UV Ultra i3200 1702/4
Printing Technology UV Printing
Print Head EPSON i3200
Acceptable Media Type: Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinyl, etc.
Width: ≦1620mm
Ink Type UV Ink: CMYK LCLM W V
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK + LC, LM + W + Varnish
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop (standard), Photoprint / Print Factory (optional)
Printing Resolution Maximum
Printing Speed
Mode 2H 4H
3 Pass 33㎡/h 62㎡/h
4 Pass 21㎡/h 48㎡/h
6 Pass 11㎡/h 33㎡/h
Ink Drying Method UV Drying
Control System Win10
Power 6100W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L: 125.99 x W: 44.10 x H: 43.31 (1 Inch = 25.4 mm)

Meter:
L: 3.2m x W: 1.12m x H: 1.1m
Printer Dimension Inch:
L: 114.18 x W: 39.38 x H: 66.93 (1 Inch = 25.4 mm)

Meter:
L: 2.9m x W: 1m x H: 1.7m
Weight G.W: 1078 lb. / 490kg (1kg = 2.2 lb.)
N.W: 880 lb. / 400kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified

High Quality Components

With its high-quality guide rails and drag chains, this printer sets a new standard for durability and performance. These components are not only more wear-resistant but also significantly reduce operational noise, resulting in a smoother printing process and superior printing quality.

High Configuration

The High Configuration Inkjet Printer is designed to meet the demands of modern printing applications, offering a seamless blend of innovation and reliability. Whether you are in the packaging, labeling, or commercial printing industry, this printer is engineered to elevate your production capabilities and deliver exceptional results.

Advanced Technology

Experience the power of advanced technology and precision engineering with the High Configuration Inkjet Printer. Its intuitive control system and cutting-edge printhead technology make it a game-changer in the world of industrial printing. From intricate designs to high-speed production runs, this printer is ready to take on any challenge with unmatched efficiency and consistency.

Fast Printing Speed

Say goodbye to slow printing speeds and inconsistent ink distribution. The High Configuration Inkjet Printer is here to revolutionize your printing experience, setting a new benchmark for performance and quality. Elevate your printing capabilities and stay ahead of the competition with this groundbreaking solution.

Print Your Imagination

Discover the future of printing technology with the High Configuration Inkjet Printer. It's time to unleash the full potential of your printing operations and achieve remarkable results with every print job.



Aleron Latest Multicolor Digital R2R UV Printing Machine Ultra i3200 1704 UV

· Large materials:

· Traffic system signage

· Banners

· Posters

· Displays

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized car stickers

· Materials:

· Various substrates (e.g., vinyl, plastic, metal)

· Additional uses:

· Advertising

· Marketing

· Personal expression
