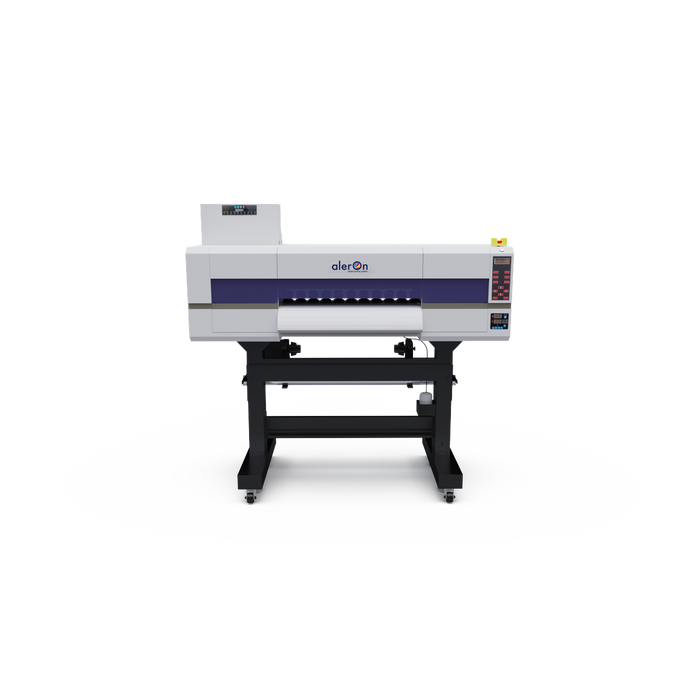

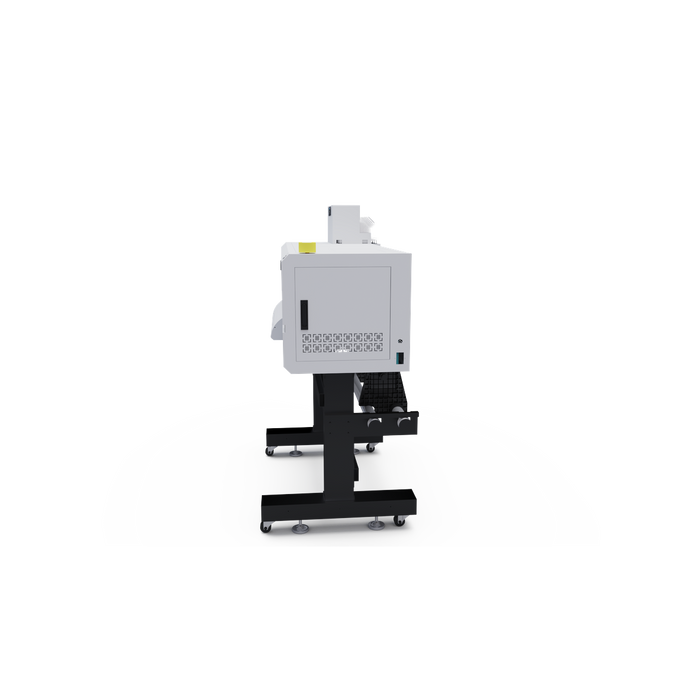

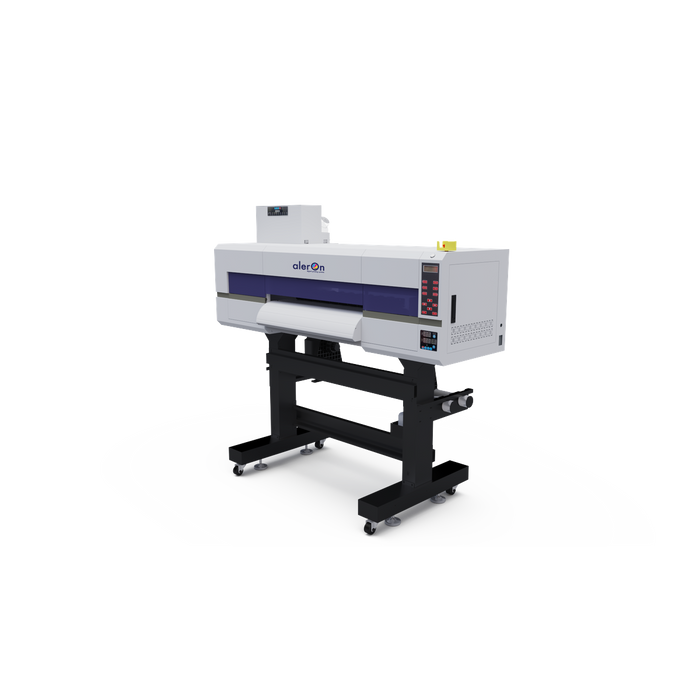

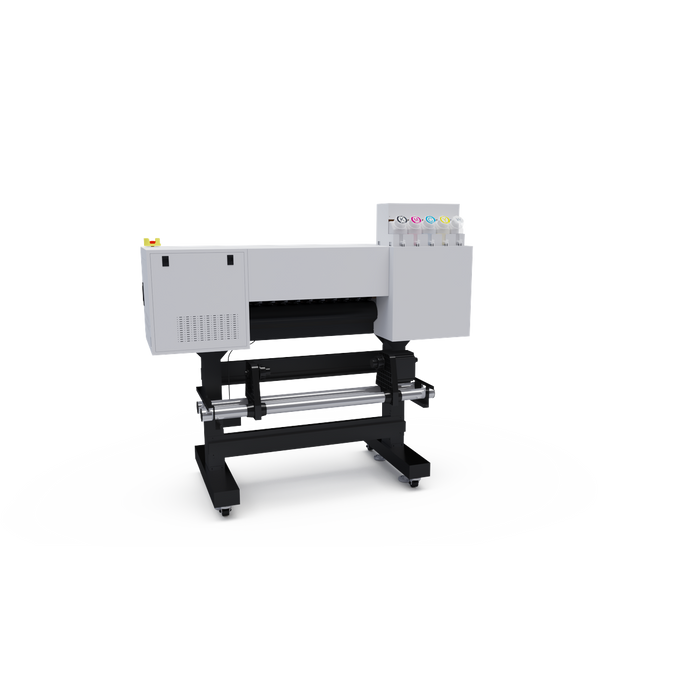

Aleron Latest Multicolor Digital DTF

Printing Width: 0.6m

Print Head: Epson i3200

Print Head Quantity: 1pc

Inks: Sublimation ink

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color NEW Design UV printer Ulltra i3200 UV DTF

For All Advertising Images Use with High Resolution 1. Epson i3200 Print head2. Max Printing Width is 0.6m3. High Quality! High Resolution Better Pefermance!

DTF Specifications
Model DTF
Printing Technology Sublimation Printing
Print Head i3200
Acceptable Media Type: Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers, etc.
Width: ≦600mm
Thickness: ≦10mm
Ink Type UV Ink: CMYK
Ink Supply Negative Pressure Ink Supply
Ink Cartridges Capacity: Color Siphon + White ink auto-stirring
Color: CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Photoprint (Standard), PrintFactory / Onyx / Caldera (optional)
Printing Resolution Maximum
Printing Speed
Mode CMYK
3 PASS 6㎡/h
4 PASS 4㎡/h
6 PASS 3㎡/h
Ink Curing Method Heating Fan
Control System Win10
Power 3000W
Interface Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Air Source N/A
Packing Dimension Inch:
L: 78.74 x W: 53.15 x H: 31.10 (1 Inch = 25.4 mm)

Meter:
L: 2.00m x W: 1.35m x H: 0.79m
Printer Dimension Inch:
L: 74.41 x W: 42.13 x H: 63.78 (1 Inch = 25.4 mm)

Meter:
L: 1.89m x W: 1.07m x H: 1.62m
Weight N.W 352 lb. / 160kg (1kg = 2.2 lb.)
G.W 440 lb. / 200kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified

High ConfigurationIntegrated intelligent control system and using Epson i3200 greyscale printhead, printing speed is faster and inkjet is more uniform.Advanced EquipmentHigh quality guide rails and drag chains are used, which are more wear-resistant and have lower noise. The machine runs more smoothly and the printing quality is better.High StabilityUsing strong hard oxidation and segmented adsorption platform,all-steel welding frame square, the printing process is more stable and the printing quality is higher.Wide ApplicationIt can print on a variety of materials, making it more versatile.Automatic Cleaning SystemThe nozzle can be automatically cleaned to prevent ink residue from clogging the nozzle channels and improve printing quality and accuracy.Operation PanelEquipped with clear operation pages and buttons, each printing process can be operated with one click, making printing efficient and convenient.Intelligent Ink Detection SystemThe remaining amount of ink in the printer can be monitored in real time to avoid downtime and production interruptions caused by running out of ink.Curing SystemUsing UV LED lamp for curing, it can be used immediately without preheating time, achieving high-speed curing and strong durability.

Aleron Latest Multicolor Digital DTF
  • Keyboards
  • Mobile phone cases

Applications:

  • Customization
  • Personalization

Features:

  • Intricate design printing
  • Precise graphic reproduction
  • High-quality printing on various surfaces
  • Enhanced aesthetics and functionality of products
