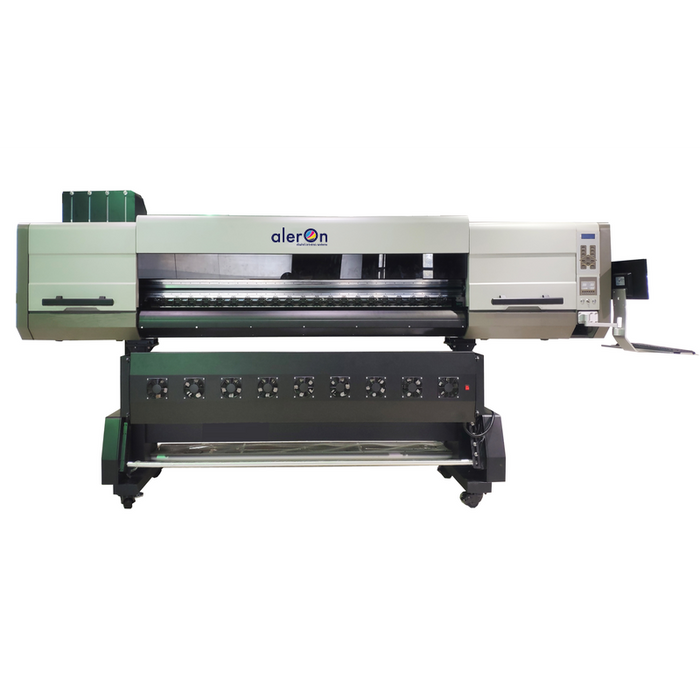

Aleron Latest Digital Printing Machine Ultra i3200 1908

Aleron Latest Digital Printing Machine Ultra i3200 1908

by Aleron Digital Printing System

Printing Width:1.8m

Print Head: Epson i3200

Print Head Quantity: 4/2pcs

Inks: Latex

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color Latex Digital Printing Machine Ultra i3200 1908

For Latex Advertising Images Use with High Resolution 1. Epson i3200 Print head2. Max Printing Width is 1.8m3. High Quality! High Resolution Better Pefermance!

Ultra i3200 1908 Specifications
Model Ultra i3200 1908
Printing Technology Latex Inkjet Printing
Print Head EPSON i3200 A1
Acceptable Media Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.)
Width: ≦1820mm
Ink Type Latex Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity: Color Siphon
Color: CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop (standard), Photoprint / Print Factory (optional)
Printing Resolution Maximum
Printing Speed
Pass Mode 2H / 4H 8H
2H 4H 8H
1PASS - - 488㎡/h
2PASS - - 268㎡/h
3PASS 68㎡/h 96㎡/h 160㎡/h
4PASS 40㎡/h 78㎡/h -
6PASS 40㎡/h 55㎡/h -
Ink Drying Method Infrared Heater Drying
Control System Win10
Power 9500W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L: 144.10 x W: 37.80 x H: 15.28 (1 Inch = 25.4 mm)
L: 128.35 x W: 61.03 x H: 47.25 (1 Inch = 25.5 mm)

Meter:
L: 3.67m x W: 1.22m x H: 1.96m
L: 3.26m x W: 1.55m x H: 1.2m
Printer Dimension Inch:
L: 149.61 x W: 59.06 x H: 76.78 (1 Inch = 25.4 mm)

Meter:
L: 3.8m x W: 1.5m x H: 1.95m
Weight G.W:
924 lb. / 420kg (1kg = 2.2 lb.)
1122 lb. / 510kg (1kg = 2.2 lb.)

N.W:
1122 lb. / 510kg (1kg = 2.2 lb.)
1320 lb. / 600kg (1kg = 2.3 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified
Get The Best Price

1. PrecisionCore Technologya. Employing advanced MEMS manufacturing and thin film piezo elements, this technology delivers remarkable precision and density (600 npi with 2 rows of nozzles). It ensures a compact design that enables high-speed, high-quality, and high-resolution printing.b. Epson's custom-designed MEMS nozzles and optimized ink flow pathways guarantee the consistent and accurate placement of perfectly round ink droplets.2. Support for grey-scale Epson's Variable Sized Droplet Technology (VSDT) ensures smooth gradations by allowing for precise control of droplet volume, enhancing image quality.3. High resolution Capable of ejecting ink in up to four colors with a resolution of 600 dpi per color, the printer, including the I3200 printhead, meets high-quality printing demands.4. High durability The PrecisionCore print head is celebrated for its exceptional durability and prolonged service life, as evidenced by its performance in Epson’s industrial printers.

Aleron Latest Digital Printing Machine Ultra i3200 1908

· Tyvek

· Flexible signage

· Outdoor signage

· Applications:

· Banners

· Protective coverings

· Displays

· Materials:

· Various substrates (e.g., vinyl, fabric, paper)
