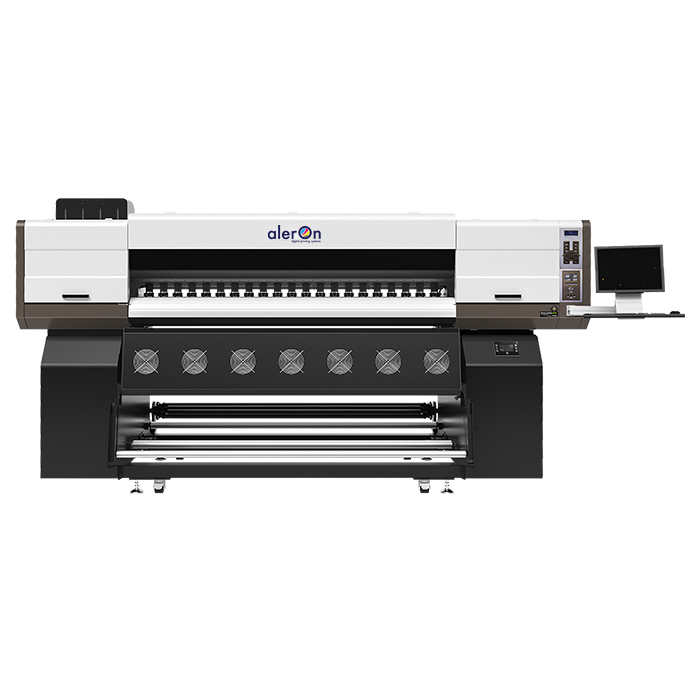

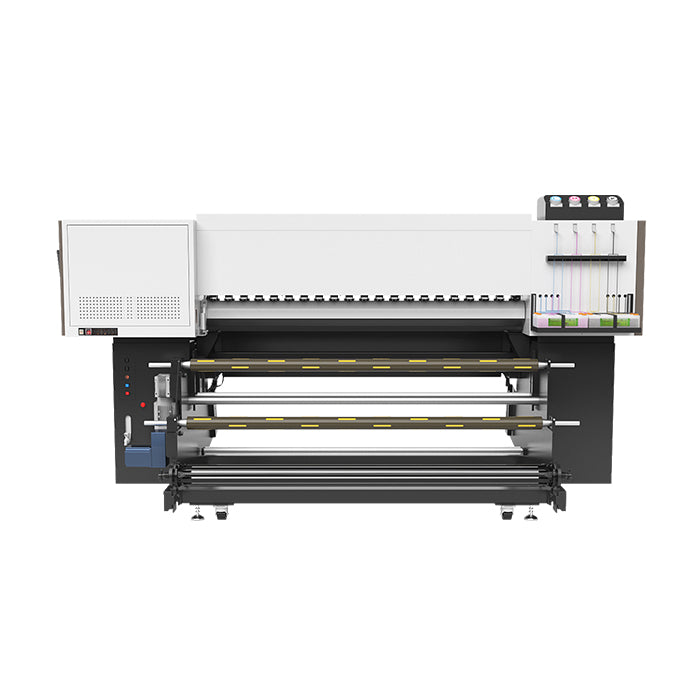

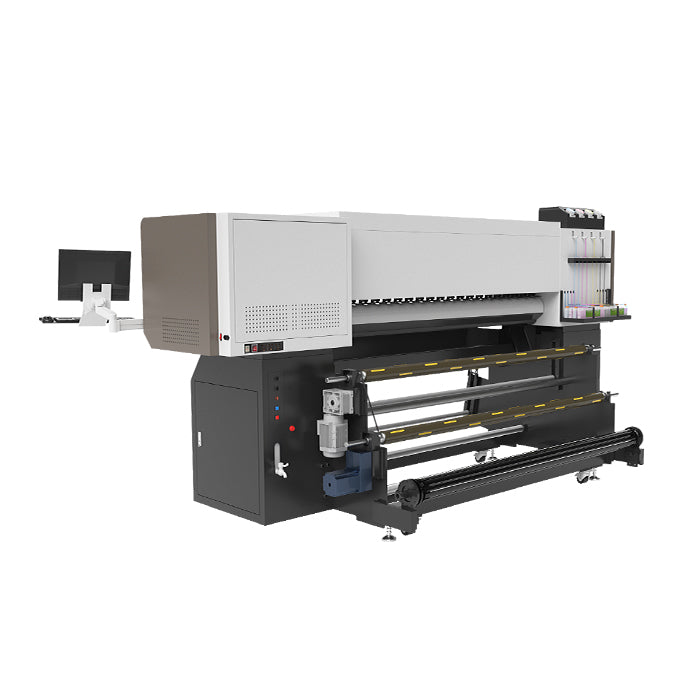

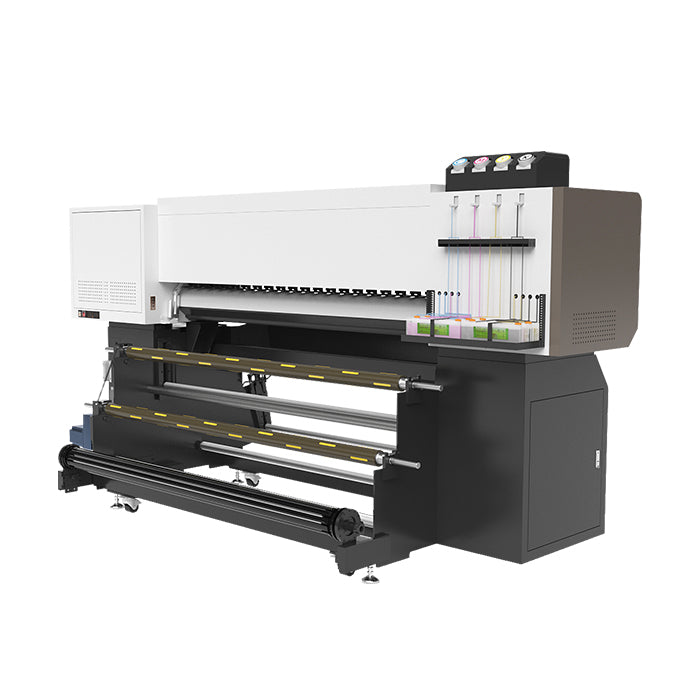

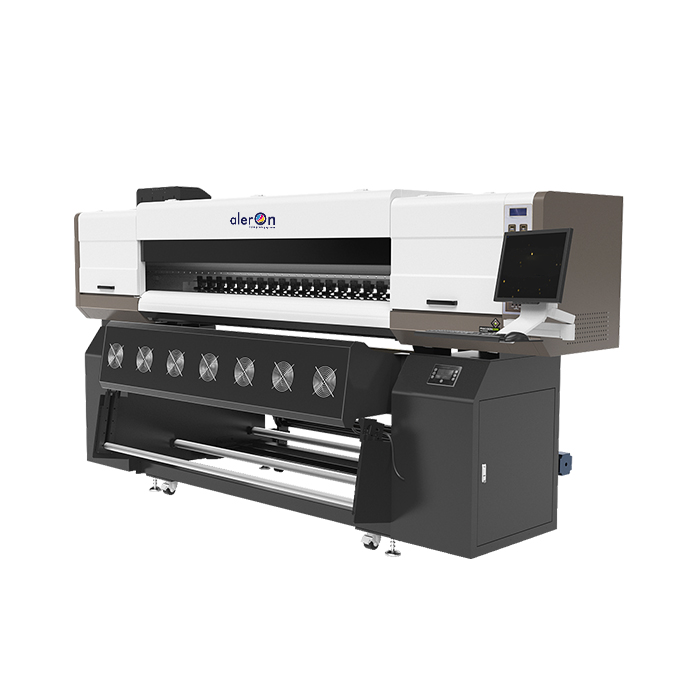

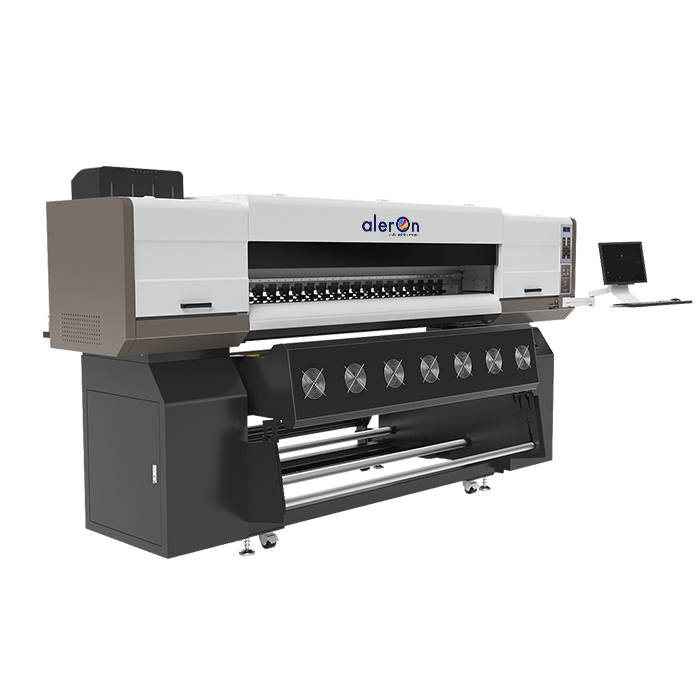

Aleron Eco-Solvent Latest Multicolor Digital Sticker Printing Machine Ultra i3200 1908
Printing Width: 1.8m
Print Head: Epson i3200
Print Head Quantity: 8pcs
Inks: Eco-solvent
RIP Software: PhotoPrint or Print Factor
Printing Width: 1.8m
Print Head: Epson i3200
Print Head Quantity: 8pcs
Inks: Eco-solvent
RIP Software: PhotoPrint or Print Factor
| Ultra i3200 1908 Specifications | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Ultra i3200 1908 | |||||||||||||||||||||||||||
| Printing Technology | Eco-Solvent Printing | |||||||||||||||||||||||||||
| Print Head | EPSON i3200 E1 | |||||||||||||||||||||||||||
| Acceptable Media |
Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.) Width: ≦1820mm |
|||||||||||||||||||||||||||
| Ink Type | CMYK Eco-solvent Ink | |||||||||||||||||||||||||||
| Ink Supply | Siphon ink supply | |||||||||||||||||||||||||||
| Ink Cartridges |
Capacity: Color Siphon Color: CMYK |
|||||||||||||||||||||||||||
| Image Format | Tiff, JPEG, EPS, PDF | |||||||||||||||||||||||||||
| RIP Software | Maintop (standard), Photoprint / Print Factory (optional) | |||||||||||||||||||||||||||
| Printing Resolution | Maximum | |||||||||||||||||||||||||||
| Printing Speed |
|
|||||||||||||||||||||||||||
| Ink Drying Method | Infrared Heater Drying | |||||||||||||||||||||||||||
| Control System | Win10 | |||||||||||||||||||||||||||
| Power | 9500W | |||||||||||||||||||||||||||
| Interface | USB3.0 / Gigabit Ethernet | |||||||||||||||||||||||||||
| Power Supply | AC 220V±10%, 50/60 HZ | |||||||||||||||||||||||||||
| UPS | 3KVA | |||||||||||||||||||||||||||
| Packing Dimension |
Inch: L: 144.10 x W: 37.80 x H: 15.28 (1 Inch = 25.4 mm) L: 128.35 x W: 61.03 x H: 47.25 (1 Inch = 25.5 mm) Meter: L: 3.66m x W: 0.96m x H: 1.15m Individual Media Feeding Roll: L: 3.26m x W: 1.55m x H: 1.2m |
|||||||||||||||||||||||||||
| Printer Dimension |
Inch: L: 149.61 x W: 59.06 x H: 76.78 (1 Inch = 25.4 mm) Meter: L: 3.8m x W: 1.5m x H: 1.95m |
|||||||||||||||||||||||||||
| Weight |
G.W: 924 lb. / 420kg (1kg = 2.2 lb.) 1122 lb. / 510kg (1kg = 2.2 lb.) N.W: 1122 lb. / 510kg (1kg = 2.2 lb.) 1320 lb. / 600kg (1kg = 2.2 lb.) |
|||||||||||||||||||||||||||
| Environment |
Power On: Temperature 59℉ to 90℉ [15℃ to 32℃] Humidity: 35% to 80% (No Condensation) Power Off: Temperature 41℉ to 104℉ [5℃ to 40℃] Humidity: 35% to 80% (No Condensation) |
|||||||||||||||||||||||||||
| Safety Certification | CE Certified | |||||||||||||||||||||||||||
