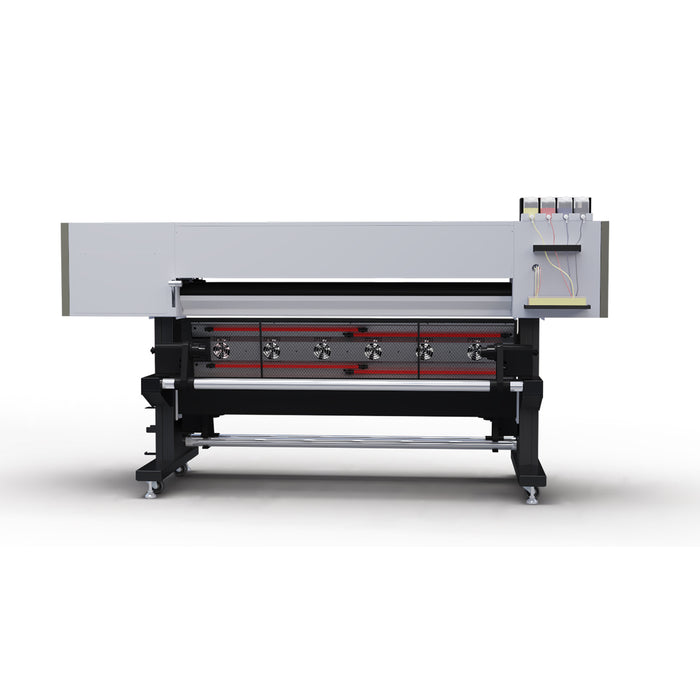

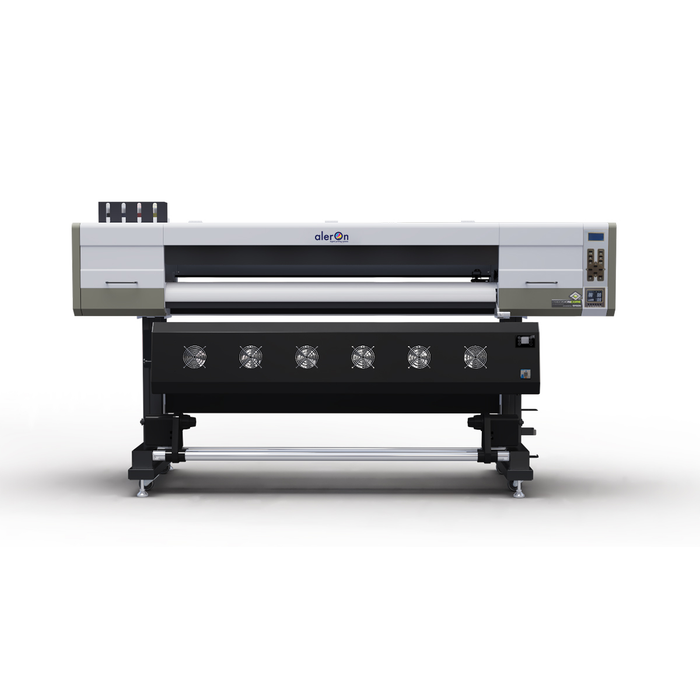

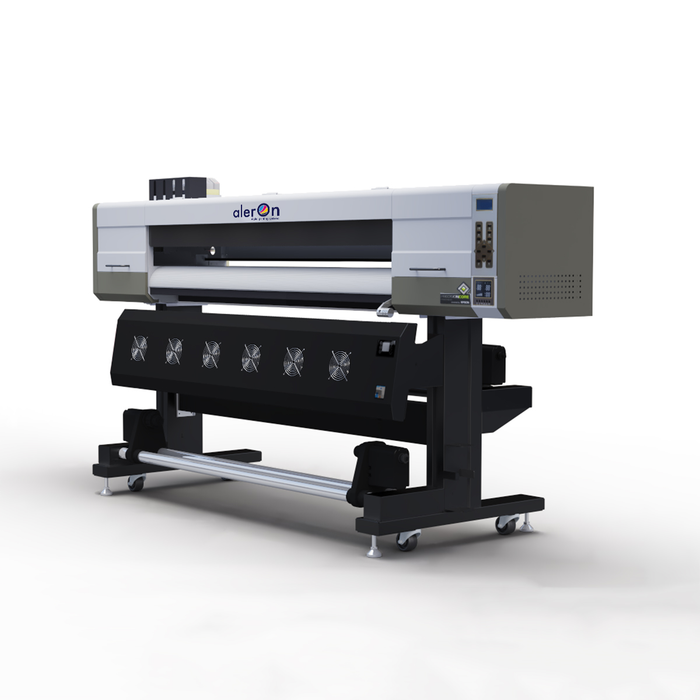

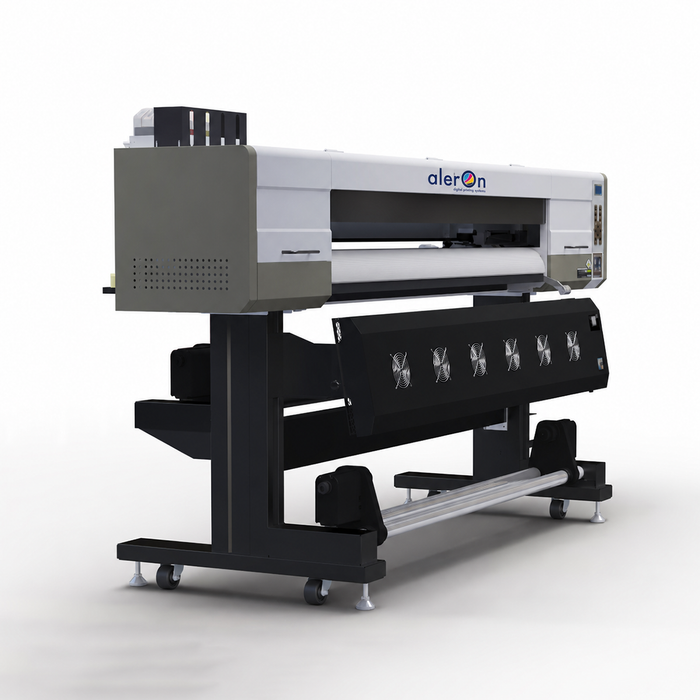

Aleron Eco-Solvent Brand Banner And Canvas Printing Machine Ultra i3200 1702s

Printing Width: 1.7m

Print Head: Epson i3200

Print Head Quantity: 1/2pcs

Inks: Eco-solvent Based

RIP Software: PhotoPrint or Print Factory

Request a quote
Chat with us

Wit-Color NEW Design Eco-Solvent printer Ulltra i3200 1701/2S

For Indoors Advertising Images Use with High Resolution 1. Epson i3200 Print head.2. Max Printing Width is 1.6m.3. High Quality! High Resolution Better Pefermance!

Ultra i3200 1701/2 Specifications
Model Ultra i3200 1701/2
Printing Technology Eco-solvent Printing
Print Head EPSON i3200
Acceptable Media Type: Outdoor Eco-solvent Based Roll Media (Flex, Vinyl, Backlit materials, PP, etc.)
Width: ≦1620mm
Ink Type CMYK Eco-solvent Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity: Color Siphon
Color: CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop (standard), Photoprint / Print Factory (optional)
Printing Resolution Maximum
Printing Speed
Mode 1H 2H
3 Pass 32㎡/h 64㎡/h
4 Pass 24㎡/h 48㎡/h
6 Pass 16㎡/h 32㎡/h
Ink Drying Method Infrared Heater Drying
Control System Win10
Power 4200W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch:
L: 114.18 x W: 27.56 x H: 43.31 (1 Inch = 25.4 mm)

Meter:
L: 2.9m x W: 0.7m x H: 1.1m
Printer Dimension Inch:
L: 108.67 x W: 35.44 x H: 59.06 (1 Inch = 25.4 mm)

Meter:
L: 2.76m x W: 0.9m x H: 1.5m
Weight G.W: 748 lb. / 340kg (1kg = 2.2 lb.)
N.W: 638 lb. / 290kg (1kg = 2.2 lb.)
Environment Power On:
Temperature 59℉ to 90℉ [15℃ to 32℃]
Humidity: 35% to 80% (No Condensation)

Power Off:
Temperature 41℉ to 104℉ [5℃ to 40℃]
Humidity: 35% to 80% (No Condensation)
Safety Certification CE Certified

High Quality Print Head

The Ultra i3200 1702s offers the flexibility of a single or dual print head configuration, allowing for versatile printing options to suit your specific needs. Utilizing eco-solvent based inks, this machine ensures vibrant and long-lasting prints that are suitable for a wide range of applications.

Premium Ink

Equipped with Maintop or Print Factory RIP software, the Ultra i3200 1702s provides a seamless and efficient printing workflow, allowing for easy management of print jobs and color accuracy.

High Overall Performance

This state-of-the-art printing machine is designed for high overall performance, with intelligent features such as automatic nozzle cleaning, anti-warping tablets, and an anti-collision device, ensuring smooth and uninterrupted printing operations. The ink supply system is also optimized for reliability and ease of use, minimizing downtime and maximizing productivity.

High Speed Printing

With a printing speed of up to 64㎡/h, the Ultra i3200 1702s is a powerful and efficient solution for large format printing, delivering exceptional results in a timely manner. Whether you're producing banners, canvas prints, or other large format graphics, this machine is well-equipped to meet the demands of your business.

Aleron Eco-Solvent Brand Banner And Canvas Printing Machine Ultra i3200 1702s

· Traffic system signage

· Banners

· Posters

· Displays

· Personalized car stickers

· Applications:

· Traffic system advertising

· Commercial exhibits

· Personalized vehicle customization

· Advertising

· Marketing

· Personal expression
