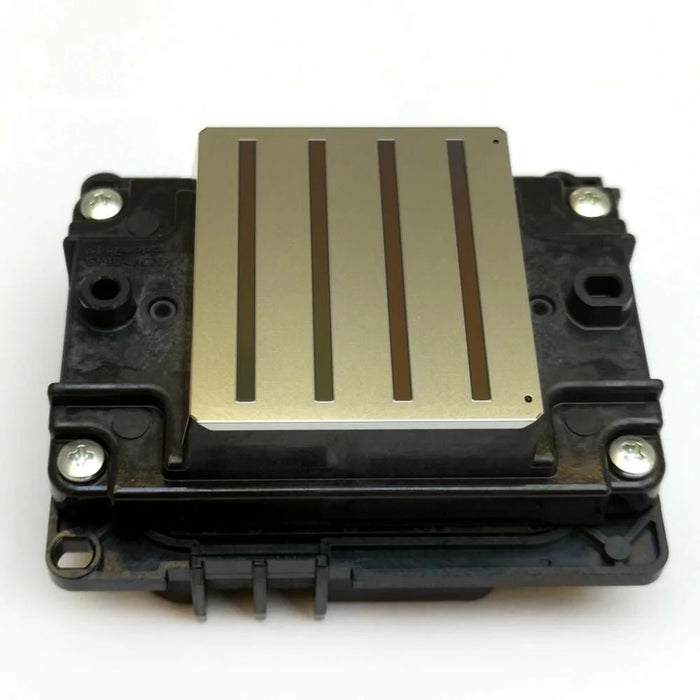

Epson i3200 U1 UV Printhead

Specifications

• Ink Type: UV-Based
• Type: PrecisionCore MicroTFP Printhead
• Dimensions (W x D x H): 2.72 x 2.34 x 1.40 inches
• Weight: 2.89 oz
• Number of Nozzles: 3200
• Nozzle Pitch/Nozzle Rows: 1/300 inch
• Nozzle Rows: 8 rows
• Nozzle Resolution: 300 npi/single line, 600 npi/dual line
• Maximum Number of Ink Colors: 4 colors
• Effective Print Width: 1.33 inches
• Droplet Ejection Performance: Dual: 6 pl at 43.2 kHz, 3-level grayscale: 6.3 pl, 12.3 pl at 21.6 kHz, 4-level grayscale: 3.8 pl, 6.1 pl, 9.4 pl at 21.6 kHz
• Viscosity Range: 3-4 mPa·s
• Country of Origin: Japan

The Epson I3200-A1 Water is a cost-effective 1.33-inch wide MEMs printhead series that delivers high productivity and high image quality with 600 dpi high-density resolution. This printhead is suitable for UV-based inks.

Structurally, the Epson I3200-U1 and Epson I3200-U1 HD printheads are identical, both featuring 8 rows of 400 nozzles each.

However, the two heads are absolutely not interchangeable; each printer can only operate with the type of printhead it was designed for.

• The Epson I3200 supports 4 colors, meaning there are 4 inputs (nipples) on the manifold where dampers can be connected, with each color being distributed by a pair of nozzle rows.

• The Epson I3200 HD supports 8 colors, so there are 8 inputs (nipples) on the manifold where dampers can be connected, with each color being distributed by a single nozzle row.

Warranty: Once the printhead is installed, we do not accept returns, exchanges, or refunds. All sales are final.

Important Information and Recommendations

• Can only be used in water-based printing machines.
• Prices do not include printhead installation.
• Printheads are shipped via courier.
• Printhead installations should be performed by expert personnel.
• New printhead cables must be used during installation.
• New printhead dampers must be used during installation.
• If your machine has not been in use for a long time, you must clean the hoses before supplying ink to the new printhead, and start the new printhead with new ink. Residual old ink in the hoses may clog your printhead again.
• The reason for the previous printhead failure should be considered, and risks should be minimized before installing a new printhead.

Note:

Printheads used in digital printing machines should be installed by technical service professionals. You may also request printhead installation from our company; this service is chargeable. If customers choose to install the printheads themselves, any electronic malfunctions and printhead blockages will be their own responsibility. Printhead returns are not possible once the package has been opened and ink has been supplied.

For printhead installation pricing, please email info@alerondijital.com.
